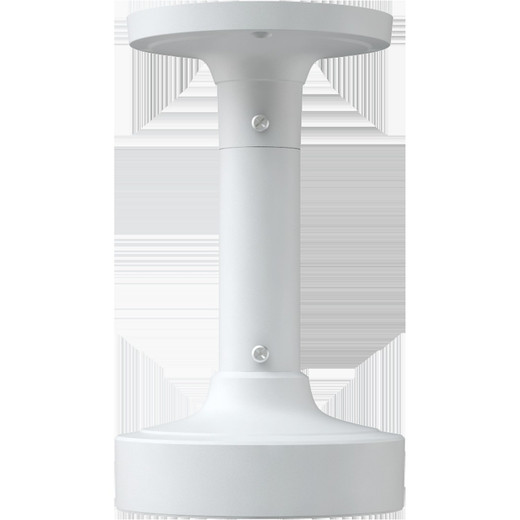

Speco Technologies CLT5 Ceiling Mount Bracket
Overview
The CLT5 is a purpose-built ceiling mounting bracket engineered specifically for Speco fisheye camera deployments. This bracket solves the practical problem of securing a wide-angle ceiling-mounted camera while maintaining environmental protection — particularly important in facilities where moisture ingress can compromise electronics or degrade surveillance coverage.
Fisheye cameras deliver 180° or near-180° fields of view from a single fixed lens, but they demand secure, properly sealed mounting to perform. The CLT5 integrates waterproof sealing components directly into the mount assembly, meaning you're not relying on sealant tape or field improvisation. This approach reduces installation variability and minimizes the risk of water pooling around the camera body where it can migrate into the sensor housing or lens optics.
Key Features
- Waterproof ring assembly: Factory-integrated rubber sealing components prevent moisture ingress from above and around the mounting interface — critical in indoor/covered outdoor environments where condensation or roof leaks are a concern. Without proper sealing, water can wick into the camera body and corrode circuit traces or degrade image quality within weeks.
- Fixed ring retention system: Maintains precise optical alignment between the lens and ceiling opening. Fisheye lenses are sensitive to tilt — even 5–10° of misalignment can introduce vignetting or uneven focus across the field of view. The fixed ring locks the camera in place and prevents drift from vibration or thermal expansion.
- Structural load capacity: Designed for ceilings capable of supporting three times the combined weight of the camera and bracket. This 3:1 safety margin accounts for ceiling material variability (drywall, concrete, wood) and ensures the mount won't fail under vibration from HVAC systems or other facility equipment. Always verify your ceiling construction before installation.
- Integrated sealant components: The package includes both sponge rubber and solid rubber plugs, allowing installers to customize sealing for different ceiling cavities and moisture conditions. Sponge rubber compresses and conforms to irregular surfaces; solid rubber provides firmer support in structured cavities.
- Complete fastening kit: Pre-drilled template and plastic anchors speed installation and reduce field errors. A drill template ensures hole placement matches the bracket geometry, so mounting is repeatable across multiple installations.
- NDAA Section 889 Part B certification: Complies with U.S. defense procurement rules restricting covered telecommunications equipment (Huawei, ZTE, Dahua, Hikvision). If you're integrating surveillance into federal, state, or GSA-schedule projects, this certification eliminates compliance friction.
Compatibility & Integration
The CLT5 is engineered for Speco Technologies fisheye camera models, including the O6MDP3. If you're deploying fisheye cameras from the same family, this bracket provides a matched mechanical and environmental interface. Before purchasing, confirm your specific camera model is listed in Speco's compatibility matrix — fisheye mounts are not universal across manufacturers due to lens size, weight, and optical axis variations.
Installation integrates with standard ceiling construction. Requires a drill, a level, and basic fastening tools. No special wiring or electronics configuration is needed — the CLT5 is a passive mechanical assembly. Plan 30–45 minutes per mount for typical drywall or drop-ceiling installations.
What's in the Box
- 1x Mounting bracket base
- 1x Waterproof ring assembly
- 1x Sponge rubber plug
- 1x Rubber plug
- 1x Fixed ring
- Installation screws (quantity as specified by manufacturer)
- 1x Drill template
- 1x Set of plastic anchors for mounting points
When to Consider Alternatives
If you're mounting a non-fisheye Speco camera (bullet, dome, turret), a different bracket from the same manufacturer will be required. The CLT5 is optimized for the specific lens diameter and weight distribution of fisheye models; using it with incompatible cameras risks misalignment or inadequate sealing.
For fully outdoor or submersion-prone installations (carwash bays, spray washdown zones), verify that the integrated seals meet your moisture exposure profile. The CLT5 is rated for indoor and covered outdoor environments; direct rainfall and high-pressure spray environments may require additional protection or a different form factor.
Frequently Asked Questions
Q: Is the CLT5 suitable for outdoor installations?
A: The CLT5 is designed for indoor and covered outdoor environments with integrated waterproof sealing. It is not rated for direct exposure to rain or high-pressure spray. If you need outdoor exposure, consult Speco's outdoor bracket line or consider adding a supplementary weather hood.
Q: What's the weight limit for the CLT5?
A: The ceiling must support three times the combined weight of the camera and bracket. Verify your ceiling material and load capacity before installation. Drywall typically supports 5–10 lbs per fastener in standard conditions; consult a structural reference if unsure.
Q: Can I use the CLT5 with non-Speco fisheye cameras?
A: No. The CLT5 is engineered specifically for Speco fisheye models, including the O6MDP3. Lens diameter, optical axis position, and weight distribution differ across manufacturers. Using an incompatible camera risks misalignment and sealing failure.
Q: Does the CLT5 include all fastening hardware?
A: Yes. The package includes installation screws, plastic anchors, and a drill template. You will need a drill, drill bits, a level, and basic hand tools for installation.
Q: Is the CLT5 NDAA compliant?
A: Yes. The CLT5 meets NDAA Section 889 Part B Guidelines, eliminating covered telecommunications equipment restrictions for federal and GSA-schedule deployments.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CLT5 is straightforward: it's a mechanical assembly that gets a fisheye camera into a ceiling with environmental sealing intact. I've seen plenty of ceiling-mount failures result from inadequate sealing — water pools around the lens, condensation builds on optics, and within 6–12 months the image quality degrades or the camera fails completely. The CLT5's integrated waterproof ring assembly removes that risk in the mechanical interface itself, which is the right approach. If you're deploying Speco fisheye models across a facility with multiple ceiling mounts, the CLT5 standardizes the installation, cuts commissioning time, and reduces field improvisation.
Technical Highlights:
- Waterproof ring assembly with fixed retention: Prevents moisture ingress at the ceiling interface and locks the camera in optical alignment. No drift, no sealing tape workarounds — the sealing is baked into the bracket design.
- 3:1 load safety margin: Designed for ceilings capable of supporting 3x the combined weight of camera and bracket. This accounts for ceiling variability (drywall, concrete, wood) and ensures vibration from HVAC or mechanical equipment won't cause fastener creep or mount failure over time.
- Integrated sponge and solid rubber plugs: Allows customization for different ceiling cavities and moisture conditions. Sponge rubber conforms to irregular surfaces; solid rubber provides firmer support in structured voids. This flexibility reduces field errors on retrofit installations.
Deployment Considerations:
- Always verify ceiling material and load capacity before installation. A 3:1 safety margin is only valid if the ceiling substrate itself can handle the load. Drywall ceilings are lighter duty than concrete or structural wood.
- The CLT5 is for indoor and covered outdoor use only. Direct rainfall or spray washdown environments require outdoor-rated mounts or supplementary weather hoods. Moisture ingress risk increases significantly if you exceed the environmental rating.
Position the CLT5 for warehouse inventory scanning, retail loss-prevention monitoring, or facility-wide coverage in indoor distribution centers. The fixed fisheye lens and integrated sealing make it a solid choice for ceiling grids where water pooling from HVAC condensation or roof leaks is a real concern. Don't use it for fully outdoor or high-moisture industrial environments — the environmental rating doesn't support those scenarios.
