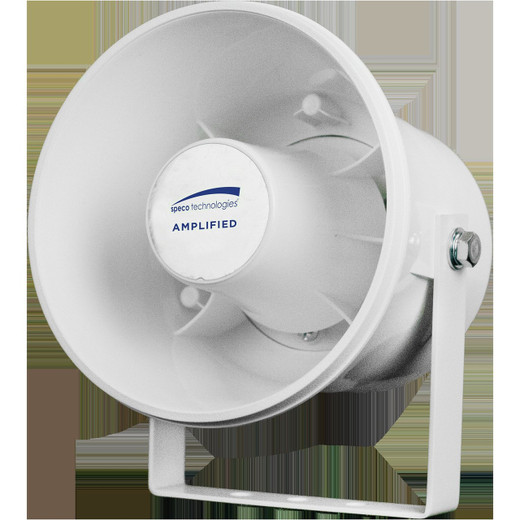

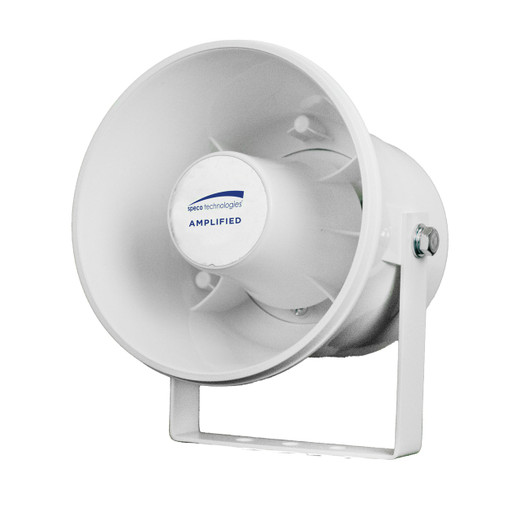

Speco Technologies ASPC20W 6" Amplified Weatherproof PA Speaker
Overview
The Speco Technologies ASPC20W is a 6-inch weatherproof amplified public address speaker engineered for security integrators and system designers seeking to eliminate the cost and complexity of dedicated amplifier hardware. Built with ABS plastic construction, the ASPC20W delivers 20W maximum audio output in a compact, weather-resistant form factor suitable for indoor and outdoor surveillance and deterrent applications.
This speaker is particularly well-suited for integration with Speco's Digital Deterrent® system and comparable IP audio deployments where amplification is required at the endpoint rather than centralized in a control room. The integrated 20W amplifier handles audio routing directly from source devices, reducing bill-of-materials costs and installation labor while maintaining reliable performance across temperature-variable environments.
Key Features
- 20W Integrated Amplification: Built-in amplifier eliminates need for external powered amp, reducing system cost and complexity
- Weatherproof ABS Plastic Enclosure: Durable construction rated for outdoor exposure and variable environmental conditions
- 6-Inch Speaker Driver: Compact yet capable of delivering intelligible speech and alert audio at sufficient SPL for perimeter and access control zones
- 12VDC Power Supply Requirement: Operates on 10–16VDC input (power supply not included; optional PSDC24 12VDC supply available separately)
- Efficient Input Impedance Range: Accepts 3–16 Ohms input impedance with 8 Ohms output impedance, enabling flexible source connectivity
- Frequency Response 500Hz–5kHz: Optimized vocal and alert tone clarity for public address and security notification applications
- Compact Dimensions: 6" width × 6" height × 6.25" depth allows installation in tight spaces and discrete perimeter mounting
- Low Weight: 3 lbs. enables wall, pole, or bracket mounting without structural reinforcement
- 2A Fuse Protection: 3AG fuse guards against overcurrent and short-circuit conditions
- 2-Year Manufacturer Warranty: Factory-backed coverage for parts and labor
Integration & Compatibility
The ASPC20W integrates seamlessly into IP-based security audio workflows. It connects to any audio source capable of delivering 3–16 Ohms impedance output—including IP intercom systems, VoIP endpoints, Digital Deterrent® controllers, and analog audio interfaces. The 10–16VDC supply requirement allows integration into existing 12V infrastructure used for access control, gate openers, and supplementary security devices.
No special software or drivers are required. Audio engineers should verify impedance matching between the signal source and the speaker's input range to ensure proper gain staging and minimize distortion. The speaker's frequency response (500Hz–5kHz) is well-suited to intelligible speech reproduction and alert tones; applications requiring extended bass or treble response should evaluate alternative solutions.
Deployment Considerations
The ASPC20W is NDAA Section 889 Part B compliant, meeting federal procurement requirements for government and sensitive installations. Its weatherproof design supports both covered and exposed outdoor mounting; integrators should verify local electrical codes for wet-location wiring and power supply placement when deploying in high-moisture or freeze-thaw environments.
Power supply is sold separately. The optional PSDC24 12VDC power supply is recommended for standalone installations; systems with existing 12V distribution should verify adequate amperage headroom (the ASPC20W draws approximately 2A at peak output). Where multiple units are deployed, a centralized 12VDC power distribution system will reduce installation cost and improve maintainability.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During a recent perimeter deterrent deployment, I evaluated the Speco ASPC20W as a cost-effective endpoint amplification solution. This unit eliminates the expense and rack space of a centralized audio amplifier, making it practical for distributed security audio installations across larger campuses or remote sites. The ASPC20W integrates directly into existing 12V infrastructure with minimal configuration.
Technical Highlights:
- Integrated Amplification: The ASPC20W's built-in 20W amplifier removes the need for separate powered audio equipment, simplifying procurement and reducing single points of failure in multi-zone deployments.
- Input Impedance Flexibility: The 3–16 Ohms input range accommodates diverse source devices (IP intercoms, analog mixing consoles, digital deterrent controllers) without intermediate impedance conversion hardware.
- Power Supply Efficiency: 10–16VDC operating range aligns with standard industrial 12V distribution used in access control and gate automation, enabling unified power architecture.
Deployment Considerations:
- Verify your audio source's impedance falls within the 3–16 Ohms input specification; mismatched impedance will degrade audio fidelity and amplifier efficiency.
- Frequency response peaks in the 500Hz–5kHz band, making this speaker ideal for speech and alert tones but less suitable for music-based applications or extended low-frequency content.
- Power supply (PSDC24 or equivalent 12VDC source) must be rated for continuous 2A draw at peak usage; confirm your distribution panel has adequate amperage headroom.
- For multi-unit deployments, design a centralized 12VDC power distribution system to reduce cabling complexity and improve serviceability versus point-of-use plug-in supplies.
The ASPC20W is a solid choice for security integrators building distributed IP audio systems where endpoint amplification reduces overall system cost and architecture complexity. Its weatherproof construction and compact form factor support both indoor and outdoor applications. Ensure proper impedance matching at commissioning and verify 12VDC supply adequacy before full deployment.
