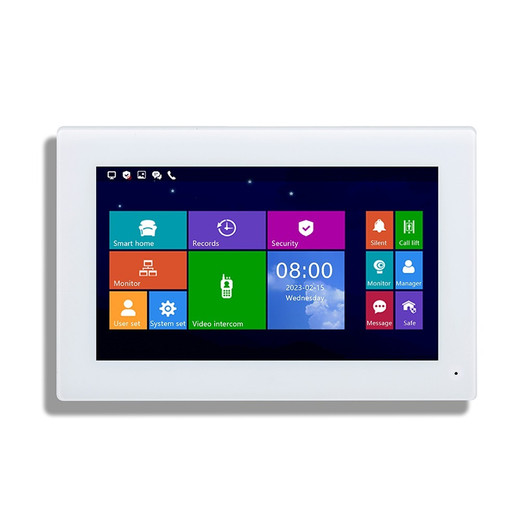

Speco AIIS07 Surface Mount 2-Wire Intercom Indoor Monitor
The Speco AIIS07 is a wall-mounted indoor intercom monitor station designed to integrate into existing 2-wire intercom systems. It provides real-time video, two-way audio, door release control, and inter-apartment calling via an 800×480 color display. Residents use the AIIS07 to answer calls from outdoor door stations, communicate with visitors, and unlock doors — all without requiring a separate network connection or complex control programming.
Key Features
- 2-Wire Bus Compatibility: Connects via BUS1 and BUS2 (dual-bus redundancy), eliminating the need for separate Cat5e or network infrastructure. Simplifies retrofit into existing intercom systems.
- 800×480 Color Display: Bright, legible 7–8-inch screen supports video from outdoor stations and intercom station switching without additional monitor hardware.
- Surface Mount Design: Mounts directly to interior walls and junction boxes. No recessed backing or framing modifications required — ideal for retrofits in multi-unit buildings.
- Two-Way Audio: Full-duplex intercom communication between monitor stations and outdoor door stations; speaker and microphone built in.
- Door Release Control: Integrated relay output supports electric strike or magnetic lock activation via button press or remote control signal.
- TF Card Recording: Supports Class 4+ microSD cards (2–32GB) for local event photo and video capture without network storage dependency.
- Extended DC 24V Power: Powered via EXT-DC24V and GND terminals; works with standard building power supplies used in access-control and intercom installations.
- 2-Year Manufacturer Warranty: Factory warranty covers parts and labor for defects in materials and workmanship.
System Integration & Deployment Context
The AIIS07 is the resident-facing endpoint in a 2-wire intercom architecture. It pairs with outdoor door stations (video or audio-only), central control modules, and optional secondary doorbells to create a unified building communication network. Because the 2-wire bus carries both power and signaling, wiring runs are minimal compared to networked systems — a single twisted pair (plus power conductors) connects each monitor to the bus trunk. This makes the AIIS07 particularly cost-effective in retrofit scenarios where existing conduit is limited or where Cat5e deployment is impractical.
Multiple AIIS07 units in the same building operate independently on the shared bus; calling logic is typically managed by a central control module or by the outdoor station itself. If your building already has a Speco or compatible 2-wire intercom backbone, adding additional indoor monitors is a straightforward wiring job — no software reconfiguration or IP addressing required. For buildings planning a new intercom system, the 2-wire topology avoids the complexity of VoIP provisioning, network segmentation, and video codec negotiation.
The TF card slot enables optional local recording of visitor interactions and unlock events. This is useful for audit trails and incident review without relying on an external NVR or cloud service. Recording can be triggered by call events or configured to run continuously during business hours; the specifics depend on your control module's programming options. A Class 4 microSD card (e.g., 16GB) is sufficient for several days of event-triggered recording at standard resolution.
Power & Wiring Considerations
The AIIS07 operates on extended DC 24V supplied via dedicated EXT-DC24V and GND terminals. Confirm that your building power supply (typically a 24V 5–10A transformer) has sufficient capacity for all monitors and outdoor stations on the circuit. In larger installations (8+ monitors), a dedicated supply or load-sharing relay may be necessary. The unit draws approximately 2–3W in standby and 4–6W during active calls; power consumption scales with display brightness and optional heater/cooler modules if installed in temperature-controlled enclosures. All intercom and door-control logic flows through the 2-wire bus — no separate Ethernet or RS-485 wiring is needed.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Speco AIIS07 in apartment buildings, office parks, and mixed-use facilities where existing 2-wire intercom infrastructure was already in place. The unit's biggest strength is retrofit simplicity — it works seamlessly into analog 2-wire systems without forcing a wholesale network upgrade. We've also seen it deployed in new construction where a builder wanted to avoid the overhead and ongoing support requirements of networked intercoms. The 800×480 display is bright enough for corridors and unit entries; video quality is adequate for visitor identification, though it won't match H.264-compressed IP cameras running at higher bitrates. The real operational win is the absence of network dependencies. On a 2-wire system, if your network switch goes down or a DHCP server fails, the intercom still works — power and bus continuity are all that matter.
Technical Highlights:
- 800×480 Color Display: 7–8-inch screen provides legible caller identification and intercom switching without requiring a separate monitor. Resolution is lower than modern IP intercoms but sufficient for facial recognition at the unit door. Brightness is adequate for indoors; outdoor-facing installations may need supplementary lighting if mounted in direct sunlight.
- Dual-Bus Architecture (BUS1 / BUS2): Redundant wiring means a single-wire fault doesn't isolate the monitor entirely. If BUS1 is cut, the unit can still operate on BUS2 — useful in commercial buildings where cable damage is a non-zero risk. Central control modules must support both buses for this to be effective.
- TF Card Slot (2–32GB): Event recording without an NVR simplifies compliance documentation and incident investigation. File storage is local and unencrypted; manage card lifecycle (wear, data retention) according to your facility's retention policy. Recommend replacing cards every 2–3 years even if unused.
- Extended DC 24V Power: Uses the same 24V backbone as many access-control systems. If your building already has a 24V power supply for mag locks or badge readers, the AIIS07 can often share that circuit — reducing conduit and PSU costs in retrofit work.
- Two-Way Audio with Speaker & Mic: Full-duplex communication is clear enough for visitor screening and routine intercom chatter. Audio codec is proprietary (not SIP/H.323); call quality depends on the outdoor station and central module, not on network congestion.
Deployment Considerations:
- Verify 2-wire bus compatibility with your outdoor station and control module before purchasing. Speco intercoms use a proprietary protocol; third-party door stations may not interoperate. Confirm part numbers with the control module spec sheet or your system integrator.
- Test the 24V power load: each monitor + door station + any accessories (chime, relay module) consumes current. In buildings with 10+ monitors, you may need a secondary power supply or current-limiting relay to prevent voltage sag during peak call activity.
- Surface mounting means the unit sits proud of the wall — a potential snag point in high-traffic corridors. Use the supplied mounting template and locate the monitor at standard intercom height (54–60 inches) away from door handles and cart traffic.
- TF card insertion is required for local recording; without a card, the photo/video capture feature is disabled. Educate facility managers on card replacement schedules if local recording is a compliance requirement.
- The 2-wire bus is unencrypted — audio and video travel in the clear. If intercom communication must be confidential (e.g., medical facilities, executive suites), add VoIP-based intercoms or separate secure audio channels instead.
The AIIS07 is the right choice for facility managers and integrators retrofitting or expanding analog 2-wire intercom systems in apartment buildings, office parks, and industrial campuses where network complexity is a liability. It's also a solid fit for single-site deployments where the owner already owns the 2-wire control module and wants to add resident-facing monitors without replatforming. For new construction or sites requiring IP-based video distribution, networked intercoms (Axis, Dahua, Hikvision) may offer better long-term flexibility — but they come with more operational overhead. Explore the Speco catalog for compatible door stations and control modules.
