Middle Atlantic Specific Space Rotating Sliding Rail System - SRSR-X-12

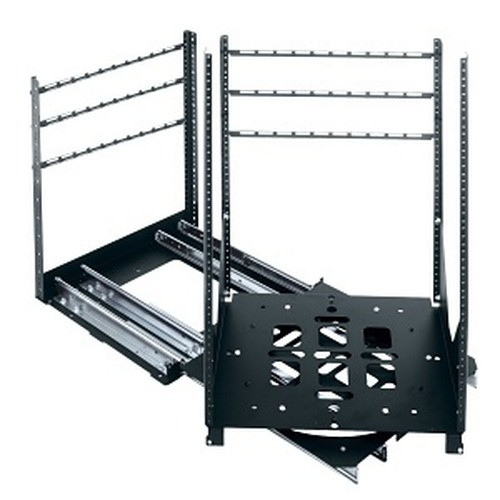

Middle Atlantic SRSR-X-12 12RU Slide-Out Rotating Rack System

Overview

The Middle Atlantic SRSR-X-12 is a 12RU in-cabinet slide-out rotating rail system designed for installations where rear-panel access to rack-mounted equipment is a recurring operational requirement. Rather than pulling equipment offline or working blind behind a fixed rack, the SRSR-X-12 slides out and rotates on its axis — giving a single technician clear front and rear access to all 12 rack units without relocating hardware. The unit holds up to 200 lbs (90.7 kg) of installed equipment, making it practical for fully loaded rack systems carrying NVRs, managed switches, UPS units, and AV gear simultaneously. Overall depth is 23.14 in with 21.25 in of usable depth, and usable height is 21 in across 12 RU. Flat black powder coat finish and 10-32 rack rail threading are standard. TAA Compliant and manufactured in the USA — relevant for federal, government, and GSA contract deployments. The SRSR-X-12 ships at 71 lbs; factor that into freight planning for multi-unit orders.

Compatibility

The SRSR-X-12 is an in-cabinet rack solution engineered to install inside existing enclosures rather than as a standalone open-frame unit. It accepts any standard 19-inch rack-mount equipment with 10-32 threaded rail mounting — the dominant standard across network video recorders, PoE switches, patch panels, and security appliances. At 19.13 in wide and 23.14 in deep, verify your host cabinet's interior clearance before ordering; the slide-and-rotate travel path requires additional side clearance beyond the rail footprint itself. This system is part of the broader Middle Atlantic rack and enclosure line, and integrates naturally alongside Middle Atlantic enclosures sized to accommodate rotating rail assemblies. For installations requiring a rack accessory that supports frequent rear-panel servicing — cable management, patch rotations, or NVR hot-swap scenarios — this is the configuration to specify.

Installation Notes

Install within a host cabinet that provides adequate interior depth (minimum 23.14 in clear) and sufficient lateral swing clearance for the rotation arc. Rail type is 10-32 threaded — confirm compatibility with your rack-mount hardware before installation. The 200 lb weight capacity is the loaded system limit; distribute equipment weight across rack units evenly to avoid rail stress. Shipping weight of 71 lbs reflects the unloaded assembly; plan accordingly for lift and placement in equipment rooms or wiring closets.
