Vertiv VRA6052 Full Metal Door for 48U x 600mm VR-Series Rack

Overview

The Vertiv VRA6052 is a solid full metal replacement or upgrade door designed specifically for 48U x 600mm VR-series rack enclosures. If you're running a dense compute or network stack and need solid-panel door coverage — for EMI containment, physical security, or simply to keep fingers and airflow out of the front of the cabinet — this door is the direct-fit answer for that frame size. It replaces perforated front doors on existing VR-series racks without modification, and it pairs with the broader Vertiv rack and enclosure line to give you a consistent, fully supported enclosure build.

At 63.41 lbs, the VRA6052 is a substantial piece of steel — expect two people for installation. The solid panel construction eliminates the ventilation slots found on perforated variants, which means airflow management shifts entirely to top and bottom blanking strategies or active cooling within the enclosure. That tradeoff is deliberate: solid doors block ambient dust ingress, reduce acoustic transmission out of the cabinet, and harden the enclosure against casual physical intrusion. For data center rack enclosures, telecom closets, or any environment where the cabinet contents need to stay behind a clean metal face, this configuration is the correct call.

Key Features

• Full Metal Solid Panel: Unlike perforated door variants in the VR family (VRA6001–VRA6008), the VRA6052's solid steel construction provides a physical barrier that perforated panels can't — relevant when you're housing sensitive networking gear in shared spaces or semi-public telecom rooms where opportunistic access is a real concern.
• 48U x 600mm Exact Fit: Sized precisely for 48U tall, 600mm wide VR-series frames. If your cabinet is 800mm wide, that's the VRA6053 — don't guess on frame width, because door-to-frame fit is non-negotiable. Verify your rack's internal width before ordering.
• VR-Series Ecosystem Compatibility: Designed to drop into the existing VR-series hinge and latch points. That means you can mix door styles across a row — solid front, perforated rear — without custom hardware. Consistent mounting geometry across the Vertiv VR accessory catalog makes mid-life cabinet upgrades straightforward.
• Lock Handle Upgrade Path: The VRA6052 ships as a door panel; handle selection is separate. The VR accessory catalog supports a range of handle options from the basic VRA6022 door handle up to the VRA7002 fingerprint + RFID security handle and the VRA7003 pin pad + RFID variant. If your site requires credential-controlled cabinet access — for compliance or audit purposes — plan the handle SKU alongside this door purchase.
• Split-Door Alternative Available: If your 48U x 600mm rack sits in a tight row where swinging a full single door is impractical, the VRA6056 is the split-door equivalent. Both are solid metal; the VRA6056 divides the panel into two independently swinging halves. Confirm aisle clearance before committing to the single-panel VRA6052.
• Substantial Build Weight: At 63.41 lbs, this door is heavy enough that hinge condition on the target rack matters. Inspect existing hinges before installation — worn or damaged hinges on an older VR-series frame can sag or bind under this load.

Integration & Compatibility

The VRA6052 is purpose-built for the Vertiv VR-series rack enclosure family. It is not a universal-fit door and will not mount to third-party frames without modification. Before ordering, confirm your rack is a VR-series frame with 48U height and 600mm width — the 800mm width variant (VRA6053) and the 42U solid door variants (VRA6050, VRA6051) are separate SKUs. Handle hardware is sold separately; the door panel itself does not include a locking mechanism. Pair with the VRA6022 basic handle for standard operation, or step up to the VRA7001, VRA7002, or VRA7003 security handles if access control at the cabinet level is a project requirement. For data center infrastructure planning, consider whether solid front doors in your row will require active rear-door cooling or increased in-row cooling capacity to compensate for reduced front-panel airflow.

Frequently Asked Questions

Q: What rack enclosures is the VRA6052 compatible with?

A: The VRA6052 is designed exclusively for Vertiv VR-series rack enclosures that are 48U tall and 600mm wide. It will not fit 800mm-wide frames (use VRA6053) or 42U frames (use VRA6050 or VRA6051).

Q: Does the VRA6052 include a door handle or lock?

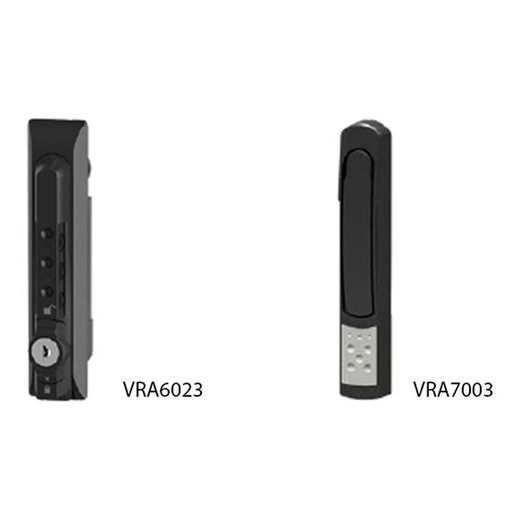

A: No. The VRA6052 is a door panel only. Handle hardware is ordered separately. Options include the VRA6022 standard door handle, the VRA6023 combination lock handle, or security-grade handles like the VRA7002 (fingerprint + RFID) and VRA7003 (pin pad + RFID).

Q: What is the difference between the VRA6052 and the VRA6056?

A: Both are solid metal doors for 48U x 600mm VR-series racks. The VRA6052 is a single full-panel door; the VRA6056 is a split-door version with two independently swinging panels. Choose the VRA6056 if aisle clearance restricts a full single-panel swing.

Q: Will the VRA6052 affect cooling inside my rack?

A: Yes. The solid panel eliminates front-panel airflow, unlike the perforated VRA6003 variant. If your rack relies on front-to-rear passive airflow, you will need to compensate with active cooling or in-row cooling solutions. Plan your thermal management accordingly before installing a solid door.

Q: How heavy is the VRA6052 and what does installation require?

A: The VRA6052 weighs 63.41 lbs. Two-person installation is strongly recommended. Before mounting, inspect the existing rack hinges for wear — this door's weight can stress aging or damaged hinge points.

Eden Phillips

The VRA6052 is a straightforward infrastructure decision: a 63.41 lb solid full metal door for 48U x 600mm VR-series enclosures. There's no electronics, no firmware — just steel and mounting geometry. But getting the selection wrong (wrong U-height, wrong width, or single vs. split) means a return shipment on a 63-lb package, so the pre-order verification step matters more here than it does on smaller accessories.

Technical Highlights:

• Solid vs. Perforated Panel: The VRA6052's full metal face is the key differentiator from the VRA6003 (perforated, same frame size). Solid panel = no passive front-to-rear airflow, but also no dust ingress, reduced acoustic bleed, and a cleaner physical security posture. The right choice depends entirely on your cooling architecture.
• 48U x 600mm Fit Precision: VR-series doors are frame-specific. The 600mm width is not interchangeable with the 800mm VRA6053, and the 48U height is not interchangeable with 42U variants. Measure twice — the door-to-frame hinge interface is not field-adjustable.
• Handle-Separated Design: Ordering without a handle SKU leaves you with an unopenable door. The VRA6022 covers basic operation; the VRA7002 and VRA7003 add biometric and PIN/RFID access control at the cabinet level for compliance-driven deployments.

Deployment Considerations:

• At 63.41 lbs, two installers are a practical requirement — not a suggestion. Also verify existing hinge condition on older VR-series frames before hanging this door; worn hinges sag under sustained load from a panel this heavy.
• Installing a solid front door in a passively cooled row without adjusting thermal management is a common miscalculation. If your current rack setup assumes front-panel airflow, budget for supplemental cooling before this door goes on.

The VRA6052 is the right specification for telecom closets, shared colocation cages, or any 48U x 600mm VR-series cabinet where dust exclusion and physical access hardening outweigh the need for passive front-panel ventilation — particularly when paired with a VRA7002 or VRA7003 handle for credential-gated access logging.
