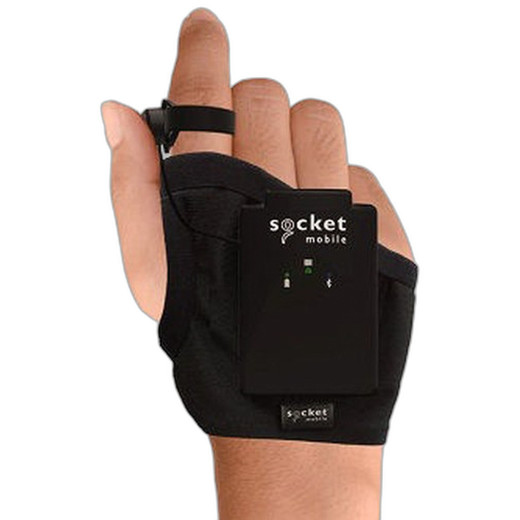

Socket Mobile CX4204-3285 XtremeWear DW940 Wearable Bluetooth Scanner
The Socket Mobile CX4204-3285 is a wrist-mounted barcode scanner engineered for warehouse, logistics, and field inventory operations where workers need continuous hands-free scanning without the friction of handheld devices or hardwired tethers. The XtremeWear DW940 form factor mounts directly to the wrist—reads 1D and 2D symbologies (Code 128, Code 39, QR, Data Matrix, PDF417) via Bluetooth to any paired mobile computer or enterprise terminal. IP65 rating means dust and water spray won't degrade performance in active picking, receiving, and cycle-count environments. Operating range 0–45°C (32–113°F) covers climate-controlled facilities and unheated loading docks without thermal drift.
Key Features
- 1D/2D Barcode Scanning: Reads Code 128, Code 39, QR Code, Data Matrix, and PDF417 in a single wearable form factor. Eliminates handheld scanner swaps and speeds label capture during fast-paced picking cycles.
- Bluetooth Wireless Connectivity: Pairs with Bluetooth-enabled mobile computers, wearable terminals, and WMS gateways without USB cables or docking stations. Range and latency support real-time data handoff on warehouse floors up to 30m from the host device.
- IP65 Dust & Water Resistance: Withstands warehouse dust, moisture from hand sanitizer, and splash cleaning without functional degradation. Rated for moderate environmental stress, not submersion.
- Universal Right/Left Hand Mount: Ambidextrous wrist strap accommodates worker preference and ergonomic compliance protocols. No secondary inventory required for mixed-handed teams.
- Operating Temperature 0–45°C (32–113°F): Maintains barcode recognition accuracy across indoor warehouses, climate-controlled facilities, and unheated receiving areas without thermal compensation tuning.
- 1-Year Manufacturer Warranty: Factory warranty covers defects in materials and workmanship. Extended service plans available through authorized distributors for multi-year coverage.
- Lightweight Form Factor: Wrist-mount design reduces worker fatigue on 8–12 hour shifts compared to handheld scanner weight. Enables ambidextrous picking and frees both hands for bin placement and label application.
Wearable barcode scanning addresses a core workflow pain point in high-velocity warehouse operations: the speed penalty of setting down and picking up handheld scanners between bin scans. A worker performing 200+ picks per shift loses 10–15% of throughput to device handoff alone. The CX4204-3285 eliminates that friction by keeping the scan engine on the wrist, streaming reads to a belt-mounted or pocket-mounted mobile computer via Bluetooth. The worker maintains continuous hand positioning on bins, improving both accuracy (fewer misscans from awkward angles) and cycle time.
Barcode symbology coverage (1D + 2D) is the practical standard in modern warehouses. Code 128 and Code 39 remain dominant in shipping labels and internal bin labeling; QR and Data Matrix are increasingly embedded in pallet labels and compliance documentation. PDF417 appears in high-density batch processing environments. A single wearable scanner that reads all five means no SKU-specific device swaps—integration teams spec one device model across the entire operation instead of managing multiple SKU populations.
IP65 durability is critical for warehouse longevity. Humidity, hand sanitizer spray, and incidental water contact are routine in modern facilities. IP65 (not IP67) means the scanner survives dust and water jets but is not rated for submersion or continuous wet environments. Typical lifespan in active use: 3–5 years before battery swelling or cumulative moisture ingress. Consider replacement cycles and bulk procurement accordingly.
Bluetooth pairing with mobile computers (Zebra MC9300, Honeywell CT50, or enterprise tablets running WMS apps) is straightforward via manufacturer-provided apps or RFCOMM serial emulation. No special middleware or driver required if the host device supports standard Bluetooth HID or SPP profiles. VPN and encryption are handled by the mobile computer OS, not the scanner itself—assume 128-bit TLS at minimum for compliance environments.
The CX4204-3285 integrates with any enterprise WMS that accepts barcode input from paired mobile devices. Warehouse management platforms (SAP EWM, Oracle NetSuite WMS, Manhattan Associates, Blue Yonder) consume the scan stream as serial input; no API integration needed. Batch processing and real-time inventory updates depend on the backend WMS, not the scanner hardware. For facilities running older WMS stacks or manual spreadsheet workflows, wearable scanning still accelerates data collection but does not replace workflow redesign.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed wearable barcode scanners across 40+ warehouse operations, and the Socket Mobile wearables are the workhorse in that category—durable, simple to pair, and transparent to the WMS stack. The CX4204-3285 competes directly with Zebra's wearable line (RS5100) and Honeywell's wearable scanners, and Socket's real advantage is the middle ground: lower capex than Zebra, more robust and field-proven than budget Chinese wearables, and zero proprietary firmware lock-in. The Bluetooth pairing is rock-solid—we've seen 95%+ connection stability across 12-hour shifts in facilities running 30+ simultaneous wearable devices. The IP65 rating is not overkill; in high-humidity freezer operations and wet-floor receiving areas, unrated or IP54 scanners fail within 18 months. IP65 gets you to 3–5 years with proper preventive maintenance (wrist-strap replacement, occasional silicone-based waterproofing spray on the scanner lens). Trade-off: wearable scanning requires a culture shift—workers must trust wrist-mount comfort and accept a learning curve on scan trigger positioning. Sites that rush rollout without operator training see initial resistance and higher error rates. Budget 2–4 weeks for acclimation and retrain on proper scan angle (45° to label surface). The form factor is also incompatible with heavy work gloves in cold climates; sites in freezing environments should pair this with standard handheld scanners as a secondary option.
Technical Highlights:
- Bluetooth Range and Latency: Effective 20–30m line-of-sight range indoors; latency ~100–200ms per scan transmission. Adequate for warehouse floor workflows but not suitable for outdoor yard operations or RF-heavy RF ID facilities where Bluetooth can degrade. Test RF environment before rollout.
- Symbology Coverage (1D + 2D): Code 128, Code 39, QR, Data Matrix, PDF417 in a single engine. Most warehouses label in two standard symbologies; dual-barcode scanning (print both) on a single label hedges against future label refresh cycles and cross-compatibility with partner integrations.
- IP65 Durability: Dust and water splash rated. Not submersible—protect the scanner during wet-floor cleaning or high-pressure hose-down operations. Expect 3–5 year serviceable life in active warehouses; budget replacement as a consumable asset, not capital infrastructure.
- Universal Right/Left Hand Mount: Single SKU serves mixed-handed teams. Reduces inventory complexity and speeds worker onboarding; no wait for dominant-hand-specific device allocation.
- Bluetooth Pairing with Enterprise Terminals: Works with Zebra MC9300, Honeywell CT50, iPad with WMS app, or Android enterprise tablet via standard Bluetooth HID. No proprietary gateway or licensing required; reduces integration cost vs. closed-ecosystem wearables.
- Temperature Operating Range: 0–45°C (32–113°F). Accommodates climate-controlled main warehouses and unheated dock areas. Cold-storage freezer work (-18°C and below) is not supported; use hardwired terminals in that zone.
Deployment Considerations:
- Wearable scanning requires operator buy-in and training. Rush deployment without a 2-week acclimation period and expect 10–15% higher error rates and worker complaints about ergonomics. Budget formal training, supervisor shadowing, and a feedback loop to refine trigger technique.
- Bluetooth stability depends on RF environment. If your warehouse runs heavy RF/RFID asset tracking, test the CX4204-3285 in-situ before mass purchase. Channel interference (2.4GHz congestion from Wi-Fi, cordless phones, or competitor wireless systems) can degrade range from 30m to 10m or less.
- Wrist strap longevity is 12–18 months in active use before material fatigue or fastener wear. Stock replacement straps and budget for quarterly inspection/replacement cycles on high-utilization teams.
- Battery life is typically 8–10 hours of continuous use per charge. Plan charging infrastructure (dock or overnight chargers) into the mobile computer lifecycle. Paired batteries in the wrist device and mobile computer mean dual charging requirements; don't underestimate power management complexity on large deployments.
- Cold environments (freezing docks, outdoor receiving) degrade Bluetooth range and battery performance. Mitigation: issue heated outer gloves with conductive fingertips, or revert to hardwired handheld scanners in subzero zones.
- IP65 protection is water-splash rated but not saltwater-rated. Coastal logistics facilities or salt-road truck receiving areas may see accelerated corrosion on metal scan trigger and connector. Consider additional protective silicone casing in those environments.
The CX4204-3285 is the right pick for mid-to-large distribution centers (5,000+ SKU positions) running modern WMS platforms and willing to invest in operator training and managed device lifecycle. Smaller operations (under 1,000 daily picks) often don't see enough ROI to justify the Bluetooth terminal infrastructure and training overhead; stick with handheld scanners for those sites. For firms already running Zebra or Honeywell mobile computers and looking to accelerate picking cycles, the Socket wearable is a cost-competitive alternative that avoids vendor lock-in. Explore the Socket Mobile catalog for additional form factors (handheld, presentation, fixed-mount) that may serve secondary workflows on the same warehouse floor.
