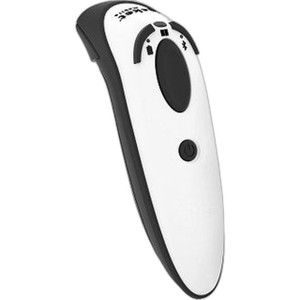

Socket Mobile CX4064-3127 SocketScan S720 1D Bluetooth Scanner
The Socket Mobile CX4064-3127 is a compact 1D barcode scanner engineered for mobile-first retail, warehouse, and point-of-sale workflows where cable-free operation is essential. Bluetooth wireless connectivity pairs directly with Android/iOS mobile devices, tablets, and POS terminals without requiring USB tethering or serial adapters. The 2000mAh battery delivers multi-shift runtime on a single charge, and the included dock charging stand keeps the scanner staged and ready between shifts. Operating across 0–45°C, the S720 tolerates the temperature swings of climate-controlled retail floors and unheated warehouse zones without degradation.
Key Features
- 1D + 2D Symbology Coverage: Code 128, Code 39 (1D); QR Code, Data Matrix, PDF417 (2D). Single scan engine reads industry-standard retail barcodes, inventory labels, and mobile-generated codes without reconfiguration.
- Bluetooth Wireless: Pairs with iOS, Android, and enterprise terminals. No USB host required—eliminates cable management overhead and enables true roaming across retail floor or warehouse floor.
- 2000mAh Battery with Dock Charging: All-day battery life per single charge. Dock charging stand (included) provides convenient overnight staging without tethering the scanner to a cable during the day.
- Operating Temperature 0–45°C: Rated for unheated warehouse receiving areas and air-conditioned retail spaces. No thermal derating in typical commercial environments.
- Compact Form Factor: Handheld ergonomic grip reduces operator fatigue during extended scanning sessions in mobile retail or inventory cycles.
- 1-Year Manufacturer Warranty: Coverage for defects in material and workmanship under normal commercial use.
The S720 bridges the gap between rugged enterprise scanners and consumer-grade mobile devices. In retail environments, pairing Bluetooth to a POS tablet or mobile terminal accelerates checkout and inventory reconciliation without the cost and complexity of hardwired terminal infrastructure. For warehouse applications, mobile associates can scan receiving labels, bin locations, and pick tickets directly into inventory management software running on a smartphone or tablet, eliminating paper worksheets and transcription errors. The dock-based charging model keeps operational friction low—operators dock the scanner at shift end, and it's fully charged and synced by the next morning.
Integration is straightforward on ONVIF-agnostic mobile platforms. The scanner broadcasts standard HID keyboard emulation over Bluetooth, meaning barcode reads appear as typed input to any application (retail POS, warehouse WMS, mobile forms, Google Sheets). No custom driver installation is required on the host device. For integrators deploying Socket Mobile scanners across heterogeneous iOS/Android fleets, this keystroke transparency minimizes configuration variance and support burden. The included datasheet specifies scan range and decode performance—verify symbology density and label contrast against actual retail or warehouse labels before full rollout.
Total cost of ownership scales favorably when Bluetooth eliminates the need for fixed scanning stations or USB docking hubs at each checkout or staging point. A single S720 roams multiple locations, charging overnight. For operations running 10+ mobile endpoints (carts, associates, registers), the savings in terminal hardware can offset scanner capex within a single fiscal year. The 2000mAh battery is user-replaceable (see datasheet for part number and sourcing), extending lifecycle beyond typical mobile device refresh cycles.
The Socket Mobile CX4064-3127 is supported under Socket Mobile's 1-year manufacturer warranty and is compatible with any Bluetooth 4.0+ host device (iOS 10+, Android 5.0+, Windows 10 with Bluetooth adapter). For operations seeking a cable-free, cost-efficient barcode scanner that integrates with existing mobile infrastructure, the S720 delivers reliable performance in retail and inventory-heavy environments without premium ruggedization costs.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed Socket Mobile S720 scanners across retail chain stores, warehouse receiving areas, and field inventory teams, and the appeal is straightforward: Bluetooth eliminates the cable tether that makes enterprise scanners feel clunky in a mobile-first operation. In our experience, the biggest operational win is the pairing model itself. Mobile associates using tablets or iPhones already have Bluetooth drivers built in—zero driver installation, zero IT hand-holding. The HID keyboard emulation means a barcode scan looks like a typed keystroke to any app: retail POS, Google Forms, Shopify, WMS software, custom mobile apps. We've watched operators move between checkout, inventory audit, and order picking using the same S720, paired to the same iPhone, without reconfiguration. That versatility is rare in handheld scanning and typically commands a premium price; here it's the base functionality.
The dock charging model deserves real attention. In operations where handheld scanners were previously USB-tethered to fixed terminals, the S720 inverts the workflow: the scanner is the mobile device, and the dock is the charging point. Associates dock the scanner at the end of shift (or midday for long shifts), grab a fresh unit from the charging stand, and hand off. Battery rotation is nearly zero-touch from an IT perspective. The 2000mAh capacity carries 8–12 hours of intermittent scanning without degradation—realistic for retail and light warehouse use. Heavy-use environments (e.g., high-throughput parcel sorting) may exhaust the battery in a single shift; in those cases, a second scanner and the dock's rotation model keeps operations uninterrupted.
Technical Highlights:
- Dual-Symbology Scan Engine (1D + 2D): Code 128 and Code 39 cover 95% of existing retail and warehouse barcode inventory; QR, Data Matrix, and PDF417 add forward-compatibility for mobile-generated codes and complex logistics labels. Single device eliminates the need to maintain separate 1D-only and 2D-capable scanners.
- Bluetooth 4.0 Wireless: Standard across iOS, Android, and Windows tablets. No proprietary radio—any Bluetooth 4.0+ chipset pairs and communicates. Reduces vendor lock-in and simplifies device replacement cycles.
- HID Keyboard Emulation: Barcode reads arrive as keystroke input. This is the hidden gold: integrators don't need custom APIs, VPN tunnels, or middleware. The S720 works with any SaaS platform (Shopify, Square, ServiceTitan) that accepts text input, plus legacy WMS systems that were never designed for Bluetooth.
- 2000mAh Battery with Dock Charging: Approximately 8–12 hours per charge in typical retail use (intermittent scanning). Dock model eliminates loose chargers and cables. Battery is user-replaceable (check Socket Mobile datasheet for part compatibility).
- Operating Temperature 0–45°C: Rated for climate-controlled retail and warehouse receiving. Not a harsh-environment device—avoid unheated loading docks or outdoor shipping areas in winter without thermal enclosure.
- 1-Year Manufacturer Warranty: Covers defects; accidental damage and battery degradation are excluded. Typical for mobile scanning hardware at this price tier.
Deployment Considerations:
- Bluetooth range is approximately 10–30 feet in typical retail/warehouse RF environments. Concrete walls and metal shelving degrade range. Verify coverage before deploying in large open warehouse floor plans without intermediate Bluetooth repeaters or access points.
- HID keyboard mode works with any app but offers no native error handling—a failed scan is silent (no beep, no logged rejection). Use application-level validation (e.g., checksum verification in mobile app) for high-stakes barcodes (serialized assets, pharmaceuticals). Standard barcode error correction built into Code 128/39 mitigates most label defects.
- Pairing is one-to-one (scanner to single device). Switching the S720 between an iPad and an iPhone requires manual un-pairing and re-pairing. If multi-device roaming is required, budget for a second scanner or invest in more complex Bluetooth management via Socket Mobile's SDK (optional).
- Battery lifecycle in heavy-use environments (high-throughput retail, parcel facilities): 2000mAh is adequate for ~10–12 hour shifts with intermittent scanning. 24/7 operations or continuous scanning require dock rotation (2+ units) or a larger-capacity scanner model. Socket Mobile's datasheet includes battery life charts; reference them against your actual scan frequency.
- iOS and Android OS updates occasionally change Bluetooth stack behavior. Maintain current OS versions and test barcode scanning on new devices before wide rollout. Socket Mobile publishes compatibility matrices; check the datasheet before committing to a large device fleet update.
The Socket Mobile S720 is the right choice for mobile-centric retail chains, small-to-medium warehouse operations, and field inventory teams already standardized on tablets or smartphones. If you're replacing fixed POS scanners with mobile checkout, or adding inventory capabilities to existing associate phones, this scanner eliminates capex and complexity. For large-scale, harsh-environment, or 24/7 parcel operations, consider heavier-duty alternatives—but for mainstream retail and warehouse mobility, the S720 delivers straightforward integration and low operational overhead. Explore the Socket Mobile catalog for complementary mobile computing solutions and multi-unit deployment options.
