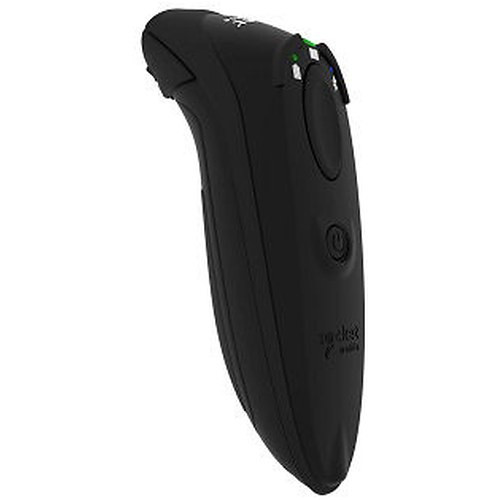

Socket Mobile CX4047-3110 1D Bluetooth Barcode Scanner
Overview
The Socket Mobile CX4047-3110 is a compact 1D linear imager barcode scanner built for mobile capture in field service, warehouse inventory, and retail point-of-sale environments. Unlike fixed scanners that require devices to come to them, the CX4047-3110 pairs wirelessly via Bluetooth to a nearby mobile device or tablet, eliminating the need for physical cables or docking stations. This matters in logistics and warehouse automation where operators move constantly—you scan, data transmits instantly, and the application updates in real time without stopping to plug anything in.
Key Features
- 1D Linear Imager Engine: Reads standard linear barcodes at typical warehouse and retail distances. The imager design (versus a laser diode) tolerates dust and ambient light better than older laser scanners, reducing false reads in industrial environments.
- Broad Symbology Support: Decodes Code 128, Code 39, UPC, EAN, Data Matrix, and QR Code in one scan engine. You don't need separate hardware for linear codes versus 2D—a real advantage if your supply chain mixes older UPC labels with newer QR-coded shipments.
- Bluetooth Wireless: Pairs with any Bluetooth-enabled iOS, Android, or Windows device within typical range (roughly 30 feet in open space, less through walls and shelving). No USB cable, no dock, no separate power cradle—just pair once and scan. Data transmits immediately to the paired device, so inventory counts and order picks update live in your warehouse management system.
- Operating Temperature Range 0° to 45° C (32° to 113° F): This span covers most commercial warehouses and retail floors during normal business hours. If you operate in cold storage (below 0° C), or in direct sunlight on outdoor loading docks during summer heat waves, you'll exceed this range—plan accordingly or confirm actual ambient conditions at your deployment sites before ordering.
- Compact Form Factor: Handheld design fits in a pocket or belt holster, reducing operator fatigue on multi-hour inventory audits or picking cycles. Lighter, less obtrusive than larger mobile computers.
- Cross-Platform Compatibility: Works with any Bluetooth stack on iOS, Android, or Windows—no device-specific drivers required. If you're standardizing on tablets or phones from mixed vendors (common in enterprises with BYOD or multi-carrier deployment), the CX4047-3110 pairs with all of them without additional licensing or configuration overhead.
Integration & Compatibility
The CX4047-3110 integrates into existing warehouse management, point-of-sale, and field service applications via standard Bluetooth connectivity. Any application that accepts keyboard input or serial-over-Bluetooth data can accept barcode output from this scanner without custom middleware. Confirm that your mobile application (or your IT team's integration layer) is configured to accept Bluetooth input on your chosen platform—iOS, Android, or Windows. Operating temperature limits mean the device performs reliably in standard indoor environments (warehouses with HVAC, retail stores, climate-controlled field vehicles) but may not be suitable for extreme-temperature deployments like freezer units or unshaded outdoor docks in direct sun.
When to Choose a Different Model
If your workflow requires reading barcodes printed at distances beyond the 1D imager's typical range (roughly 12–18 inches for standard barcode sizes), or if you need to scan through plastic windows or heavy packaging without clear line of sight, evaluate higher-end models in the Socket Mobile portfolio with longer-range optics. If you operate exclusively in freezing environments (cold storage, outdoor winter sites), confirm actual operating conditions first—the 0° C lower limit may be a constraint. For applications requiring extreme durability or multiple-drop testing, consult with Socket Mobile about ruggedized variants or extended warranty options.
Frequently Asked Questions
Q: Does the CX4047-3110 require a separate power supply or cradle?
A: No. The CX4047-3110 is battery-powered and pairs via Bluetooth. You charge it separately (details depend on the battery module included)—no docking station required. This makes it truly portable for field work.
Q: Can the CX4047-3110 read QR codes as well as linear barcodes?
A: Yes. The 1D imager reads both linear codes (Code 128, Code 39, UPC, EAN) and 2D codes (QR Code, Data Matrix) in a single scan engine. You don't need a separate 2D scanner.
Q: What is the typical Bluetooth range?
A: Approximately 30 feet in open space. Range decreases with obstacles like shelving, metal racks, and walls. Test in your actual warehouse or retail environment to confirm acceptable coverage.
Q: Is the CX4047-3110 suitable for outdoor use?
A: The CX4047-3110 operates from 0° to 45° C (32° to 113° F). It is designed for indoor commercial environments (warehouses, retail, field vehicles). Unshaded outdoor use in summer heat or cold storage below freezing may exceed these limits. Verify your deployment temperature range before purchase.
Q: Does it work with both iOS and Android?
A: Yes. Any Bluetooth-enabled device running iOS, Android, or Windows can pair with the CX4047-3110. No device-specific drivers are needed.
Q: Can I integrate the CX4047-3110 with my existing warehouse management system?
A: If your WMS accepts keyboard input or serial-over-Bluetooth data via a Bluetooth-enabled mobile device, the CX4047-3110 will work. The barcode data is transmitted from the scanner to the paired mobile device, which then sends it to your system. Confirm Bluetooth input support in your application and mobile device before deploying at scale.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Socket Mobile CX4047-3110 is a no-frills Bluetooth barcode scanner that prioritizes portability and cross-platform compatibility over feature density. If you're deploying inventory or field-service workflows where operators move constantly between locations—warehouse picking, asset audits, retail stock counts—the wireless design eliminates cable friction and speeds up data capture. The 1D imager and broad symbology support (Code 128, UPC, EAN, QR, Data Matrix) mean you won't need multiple devices for mixed barcode types in your supply chain.
Technical Highlights:
- 1D Linear Imager: Reads standard linear and 2D codes (QR, Data Matrix) without a separate 2D scanner. Linear imagers tolerate dust and ambient light better than laser diodes, reducing false decodes in industrial warehouses.
- Bluetooth Pairing with Any Device: Works with iOS, Android, and Windows tablets or phones via standard Bluetooth—no USB cables, no proprietary docking cradles, no device-specific drivers. You pair once and scan across multiple devices on the same wireless channel if needed.
- Operating Range 0° to 45° C: Covers standard indoor commercial environments (climate-controlled warehouses, retail stores, field vehicles). Cold storage or unshaded outdoor summer deployments will exceed this range and should be tested or ruled out before purchase.
Deployment Considerations:
- Bluetooth Range Limits: Approximately 30 feet in open space, but obstacles (shelving, metal, walls) reduce effective range significantly. If your warehouse has dense racking or your retail floor is large, confirm coverage in situ before rolling out across multiple sites.
- Temperature Constraint: The 0° C lower limit excludes freezer operations and unheated outdoor loading docks. If your supply chain includes cold-storage picking or winter outdoor logistics, this device is a poor fit without active heating or a variant specification.
Best suited for moderate-scale warehouse, retail, and field-service deployments where operators have Bluetooth-enabled tablets or phones, temperature stays between freezing and 113° F, and barcode read distances are within typical imager range (12–18 inches for standard label sizes). Avoid for freezer operations, extreme-temperature environments, or sites with weak or unreliable Bluetooth coverage.
