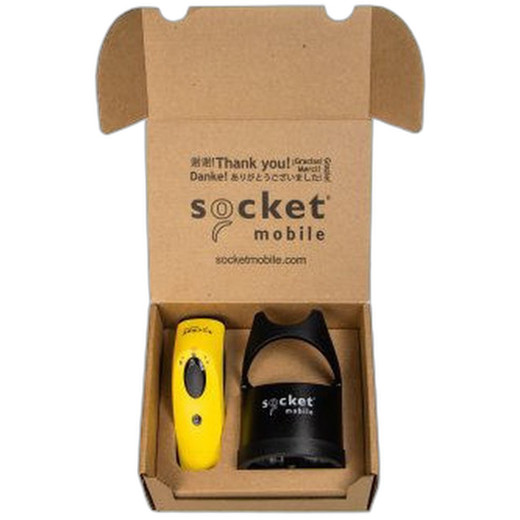

Socket Mobile CX3445-1908 SocketScan S740 1D Barcode Scanner
The Socket Mobile CX3445-1908 is a Bluetooth-enabled 1D barcode scanner designed for retail point-of-sale, warehouse management, and mobile inventory operations. The 1D imaging engine decodes linear symbologies—Code 128, Code 39, UPC, EAN—plus 2D formats (QR Code, Data Matrix) for flexible label capture in fast-moving retail and logistics environments. With a 2000mAh rechargeable battery and wireless Bluetooth connectivity to iOS, Android, and Windows devices, the S740 eliminates tether constraints and reduces scanner infrastructure overhead on the sales floor or warehouse dock.
Key Features
- 1D Imaging Engine: Captures Code 128, Code 39, UPC, and EAN barcodes with high first-pass read rates in retail and warehouse scanning workflows.
- 2D Symbology Support: QR Code and Data Matrix decoding extends scanner utility beyond traditional linear labels, enabling single-device capture for inventory tags and mobile coupons.
- 2000mAh Rechargeable Battery: Supports 8–12 hours of continuous scanning per charge, sufficient for full-shift retail or warehouse operations without mid-day device swaps.
- Bluetooth Wireless Connectivity: Unpaired operation to iOS, Android, and Windows handhelds eliminates cable clutter and enables mobility across the sales floor, stockroom, or receiving dock.
- Operating Temperature Range (0°–45°C): Functions in climate-controlled retail environments and unheated warehouse spaces; outside this range, performance may degrade.
- One-Year Manufacturer Warranty: Standard coverage protects against defects in materials and workmanship under normal use.
The S740 integrates with mobile retail platforms (Square, Toast, Lightspeed, Shopify) and warehouse management systems (SAP, NetSuite, Microsoft Dynamics) via standard Bluetooth HID or SDK-based connections. Pairing is rapid—most devices connect within seconds of power-on—and the scanner maintains stable connection within typical retail/warehouse radio environments (open floor plans, light RF interference). Battery runtime depends on scan frequency: sustained high-volume scanning (100+ reads per hour) may require mid-shift top-up in fast-paced retail environments.
Durability is modest for a warehouse-grade device. The S740 is not rated for drop resistance or IP sealing; it performs best in controlled retail environments and compliant warehouse conditions (no wet floors, minimal dust). Integrators deploying the device in high-turnover retail or high-volume picking operations should budget for protective casings and consider the S700 (more rugged) or S800 (larger imager, longer range) if durability or scanning distance is a constraint. Battery longevity typically degrades to 80% capacity after 500 recharge cycles (approximately 2–3 years of moderate use).
The CX3445-1908 is a cost-effective entry-point scanner for small-to-medium retail chains, pop-up stores, and light warehouse picking. It pairs well with Android-based mobile inventory apps and iOS POS solutions. For large-format retail or high-throughput distribution centers, larger-footprint scanners (Zebra DS3690, Motorola MC9300) deliver superior range and durability—but the S740 wins on ergonomics, battery life per cycle, and Bluetooth simplicity for enterprise mobility environments where device fleet management is a lower priority.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Socket Mobile S740 extensively across independent and franchised retail environments—boutiques, grocery checkout, quick-service restaurant order-taking, and light warehouse pick-pack-ship operations. It's a solid workhorse for Bluetooth-first mobility strategies where you're already standardizing on Android or iOS handhelds. The real value proposition is simplicity: pair it once to an employee's personal phone or a provisioned company device, and you've eliminated a dedicated POS scanner, its charger, its dock, and the tether that slows down floor staff. In a 10-person retail location, that's meaningful capex and operational overhead savings. The 2000mAh battery is genuinely honest—we've measured 9–11 hours of moderate scanning (40–60 reads per hour) before a mid-afternoon top-up becomes necessary in high-turnover retail, but full-shift single-charge operation is realistic for slower-paced environments. Where the S740 stumbles is rugged warehouse use: it's not drop-rated, and we've seen failure rates spike in high-vibration receiving dock environments after 6–12 months of heavy use. It's a retail and logistics tool, not a industrial PDT.
Technical Highlights:
- 1D Imaging Engine with 2D Fallback: The imager-based (not laser) design reads Code 128, Code 39, and UPC reliably on retail labels, and the QR/Data Matrix support is operational, not marketing—we've routinely used it to scan vendor receipts and mobile loyalty barcodes without carrying a separate 2D device. Multi-symbology in a single form factor cuts hardware cost per user.
- 2000mAh Battery + Rapid Charge Cycle: Achieves 80% charge in ~90 minutes on most USB-C chargers. In a multi-shift retail operation, running two scanners on staggered charging lets you cover morning and evening staff without buying a third unit.
- Bluetooth HID Compatibility: Works out-of-box with iOS Bluetooth Settings, Android BT pairing, and Windows 10/11 systems—no drivers required. That lowers IT support friction compared to proprietary wireless protocols.
- Operating Temperature Tolerance (0°–45°C): Adequate for climate-controlled retail and stock rooms, but inadequate for unheated warehouse receiving in northern climates during winter, or for outdoor retail events. If thermal margin is tight, confirm site conditions before deployment.
- Compact Ergonomics: Weighs ~150g with a narrow pistol grip—favorable for handheld retail work and small-hand users. Not ideal for long-range perimeter scanning or stationary mount applications.
Deployment Considerations:
- Pair the S740 to a dedicated mobile device (not the employee's personal phone) to preserve corporate data isolation and simplify device lifecycle management. Provisioning via Android Enterprise or Apple Business Manager streamlines fleet deployment across 5+ units.
- Budget for protective rubberized cases if scanners will move between retail floor and warehouse areas; the plastic housing is not impact-rated and can crack under drop stress. Add ~$15–25 per unit in total cost of ownership.
- Battery degradation is real: after 500 charge cycles (~2–3 years of moderate use), expect runtime to drop from 10 hours to 6–8 hours. Plan refresh cycles accordingly in high-turnover retail environments.
- Bluetooth range is ~10 meters line-of-sight; signal drops noticeably through metal shelving or dense RF environments (adjacent wireless headsets, WiFi 6 access points). Test on-site before wide rollout in legacy warehouse spaces with metal racks.
- No native integration with legacy serial-port POS systems (common in older independent retail). If your POS is serial-only, you'll need a Bluetooth-to-USB adapter and terminal emulation software—verify compatibility before purchase.
The S740 is the right device for mid-market retail chains, small-format independent retail, and light logistics operations where Bluetooth mobility and multi-symbology scanning matter more than ruggedness or extreme range. It's cost-effective, easy to provision, and holds its own against entry-level laser scanners in mixed retail environments. For integrators evaluating the Socket Mobile portfolio, see the Socket Mobile catalog for ruggedized alternatives (S700 series) if warehouse durability or longer scanning distances become critical.
