APC by Schneider Electric SMX2200R2HVNC Rack/Tower Line-Interactive UPS — 2200VA / 1980W

Overview

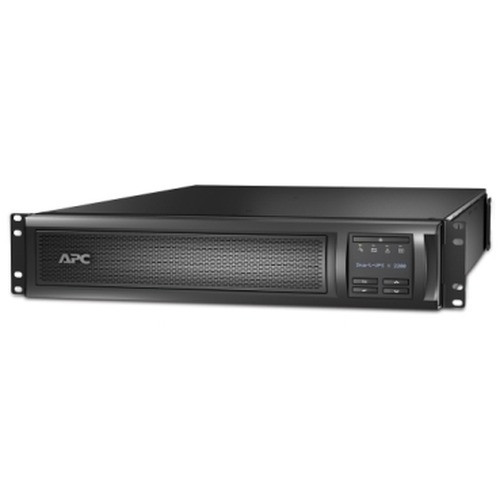

The APC by Schneider Electric SMX2200R2HVNC is a 2.2 kVA / 1980W line-interactive UPS in a convertible rack/tower form factor, designed for server rooms, network closets, and surveillance infrastructure where clean, regulated power isn't optional. It delivers true sine wave output, an Emergency Power Off (EPO) circuit, and eight IEC 320 C13 protected outlets — the kind of feature set that belongs in a datacenter edge rack or a security operations room running 24/7 NVRs and PoE switches.

Line-interactive topology puts the SMX2200R2HVNC in the right tier for most commercial deployments: unlike standby units, it conditions voltage continuously without switching to battery on every minor sag, which extends battery life and keeps sensitive equipment stable through brownouts that would otherwise trigger transfer events.

Key Features

• 1980W / 2200VA True Sine Wave Output: At 1980W real power capacity, this unit supports a meaningful load — a fully populated 2U NVR with eight drives plus a 24-port PoE switch is a realistic single-UPS scenario. Sine wave output (not simulated/stepped) is required for any equipment with active PFC power supplies, including most modern server-class and surveillance-grade hardware. Pairing this with a PoE switch load protects the entire downstream camera infrastructure.
• Line-Interactive Topology with Continuous Voltage Regulation: The unit actively corrects input voltage within its 208–230V input range before problems reach your equipment. That means brownouts and over-voltages get handled without a battery transfer — preserving battery capacity for true outage events and reducing wear cycles.
• 10ms Transfer Time: When a genuine outage occurs, the SMX2200R2HVNC switches to battery in 10 milliseconds — fast enough that virtually all ATX and server-class power supplies bridge the gap without a reset. For NVR systems mid-write, this is the spec that prevents corruption.
• 208–240V Output Range, 50/60 Hz: Output spans 208V to 240V with ±5% voltage regulation and ±3 Hz frequency regulation — tight tolerances appropriate for equipment with narrow input windows. The dual-frequency support (50/60 Hz) makes the unit deployable globally without retooling.
• 645 J Surge Energy Rating: 645 joules of surge absorption handles transient spikes that make it past building-level protection. Relevant in any installation sharing circuits with motor loads, HVAC compressors, or other inductive equipment common in commercial facilities.
• Emergency Power Off (EPO): EPO capability allows a single-button or remote-triggered full shutdown of connected equipment — a code requirement in many datacenter and server room builds. Integrators working in facilities with NEC or local electrical code EPO mandates should note this is factory-equipped, not an add-on.

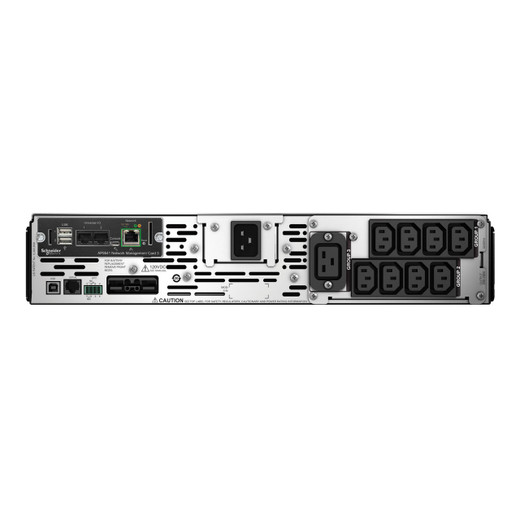

• 8x IEC 320 C13 + 2x IEC Jumper Outlets: Eight C13 outlets covers a well-populated rack segment. The two IEC jumper outlets provide additional flexibility for daisy-chaining or non-standard connections. All outlets are surge-protected.
• USB Connectivity: USB management port enables direct host-based monitoring and graceful shutdown integration — compatible with APC PowerChute and third-party UPS management software. No network card required for basic host shutdown sequencing on a single server or NVR.
• Audible Alarms + 55 dB Noise Floor: Audible alarms flag on-battery, overload, and fault conditions without requiring a management session. The 55 dB noise rating is relevant for installations near occupied spaces — it's not silent, but it's within normal office/server room range.
• Rack/Tower Convertible Form Factor: Ships in a configuration that installs in a standard 19-inch rack or stands upright as a tower — useful for phased deployments where the rack may not be in place at initial commissioning.

Integration & Compatibility

The SMX2200R2HVNC operates on 208–230V input, which targets dedicated circuits common in US commercial installations (208V from 3-phase distribution) and international 230V feeds. Verify your local circuit voltage before ordering — this unit is not designed for standard 120V North American residential service.

USB connectivity supports graceful OS-level shutdown on a connected host. For multi-device or networked management (SNMP, remote monitoring), an optional network management card is the standard path — the base unit handles single-host USB shutdown natively. This pairs naturally with UPS power protection management platforms used in enterprise security operations.

The IEC C13 outlet format is standard for rack-mounted servers, managed switches, and enterprise NVR hardware. If your connected devices use NEMA 5-15 or C19 plugs, plan for the appropriate adapters or PDU intermediate.

For surveillance-specific deployments, this UPS is appropriately sized to anchor a camera network video recorder rack segment: a mid-range NVR (40–80W), a 24-port PoE switch (under 400W depending on camera load), and auxiliary switching gear fit comfortably within the 1980W capacity with headroom for battery runtime.

Frequently Asked Questions

Q: What input voltage does the SMX2200R2HVNC require — can it run on a standard 120V North American outlet?

A: No. The SMX2200R2HVNC requires 208–230V input. In North American commercial buildings this typically means a dedicated 208V circuit from three-phase distribution. It is not compatible with standard 120V residential or light commercial outlets.

Q: Does the SMX2200R2HVNC produce a true sine wave output?

A: Yes. The unit outputs a true sine wave — not a simulated or stepped approximation. This is required for equipment with active PFC power supplies, which includes most modern server-class hardware, managed switches, and enterprise NVRs.

Q: What is the transfer time to battery during a power outage?

A: The SMX2200R2HVNC has a 10ms transfer time. This is fast enough that the vast majority of ATX and server power supplies bridge the gap without resetting, protecting NVRs and servers from mid-operation power interruptions.

Q: Does this UPS support network management or SNMP monitoring?

A: The base unit includes a USB port for single-host management and graceful shutdown (compatible with APC PowerChute and third-party UPS software). For SNMP or network-based monitoring, an optional network management card is required and is not included with the SMX2200R2HVNC.

Q: Is EPO (Emergency Power Off) supported, and how is it wired?

A: Yes, EPO is factory-equipped on this unit. It allows an external dry-contact signal to trigger an immediate full shutdown of connected equipment. Consult the APC installation guide for wiring specifics; many jurisdictions require EPO as part of electrical code compliance for server and equipment rooms.

Q: How many outlets does the SMX2200R2HVNC provide, and what type are they?

A: The unit provides eight IEC 320 C13 outlets plus two IEC jumper outlets, all surge-protected. The C13 format is standard for rack-mount servers, switches, and enterprise networking equipment.

Eden Phillips

The SMX2200R2HVNC sits in a practical spot for commercial security infrastructure: the 1980W true sine wave output at 2200VA gives you real headroom for a fully loaded NVR rack segment without the oversizing cost of a 3kVA unit. The line-interactive topology is the right call here — it absorbs voltage irregularities continuously rather than burning through battery capacity on every brownout, which matters in older commercial buildings where 208V circuits can sag during peak HVAC load.

Technical Highlights:

• 645J Surge Energy Rating: Not a marketing number — 645 joules provides meaningful transient suppression for equipment sharing distribution panels with inductive loads like elevators, compressors, or large HVAC units common in the commercial facilities where this UPS gets installed.
• 10ms Transfer Time: At 10 milliseconds, connected equipment with even modest hold-up time in its own power supply won't see a dropout. For NVR systems actively writing H.265 streams to spinning drives, this is the difference between clean operation and filesystem recovery on restart.
• 208–230V Input / 208–240V Output with ±5% Regulation: The output voltage regulation to 5% keeps sensitive active-PFC power supplies from hunting — a known issue when cheaper UPS units deliver loose regulation under partial loads.

Deployment Considerations:

• Confirm your circuit is 208V or 230V before racking this unit — it will not operate on 120V North American service. Most commercial installations with dedicated equipment rooms have appropriate circuits, but branch offices and smaller facilities often do not.
• USB-only management means single-host graceful shutdown out of the box. If you need SNMP traps, email alerts, or multi-device shutdown sequencing, budget for an optional network management card — the base SMX2200R2HVNC does not include one.

For a mid-tier surveillance operations room — one primary NVR, a managed PoE switch, a network appliance, and a KVM — this unit covers the load with overhead while meeting EPO code requirements that trip up smaller or cheaper alternatives in the same form factor.
