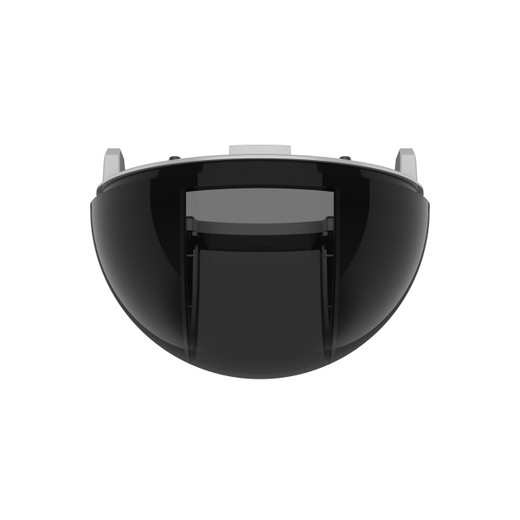

Hanwha SPB-PTZ95W Polycarbonate Smoke Dome Cover for PTZ Cameras

Hanwha SPB-PTZ95W Polycarbonate Smoke Dome Cover

Overview

The SPB-PTZ95W is a precision-engineered polycarbonate dome cover built specifically for PTZ cameras in the Hanwha XNP-C7310R and XNP-C9310R families. This is an accessory designed to solve a concrete problem: protecting expensive pan-tilt-zoom optics from dust, smoke, and airborne particulates without degrading image clarity across the full zoom range. If you're deploying PTZ surveillance in industrial plants, kitchens, fire-prone facilities, or high-vandalism outdoor zones, optical buildup from particulates is an operational cost — this cover prevents that degradation at the source.

Key Features

• Polycarbonate construction (optically clear): Maintains unobstructed lens performance across the entire zoom range. Unlike cheaper acrylic alternatives, polycarbonate resists yellowing and crazing over extended UV exposure, meaning you won't lose image clarity after 2–3 years of outdoor operation. This matters on high-zoom PTZs where even minor optical aberrations are magnified at 30x+ zoom.
• 88–92% light transmission: Standard polycarbonate optical clarity. This 8–12% loss is negligible in daylight or well-lit indoor facilities, but in low-light or night-vision deployments, confirm your PTZ's minimum illumination spec can tolerate the reduced input. For most surveillance applications, the tradeoff is acceptable.
• Smoke-rated formulation: The material repels airborne particulates, dust, and smoke without fogging or discoloring. In high-particulate environments (manufacturing floors, kitchens with heavy ventilation, foundries), this directly reduces lens cleaning cycles and extends the lifespan of the camera's optical coatings — a real cost savings over a 5-year deployment.
• 188.1mm outer diameter × 126.5mm height: Precisely dimensioned to fit the XNP-C7310R (4MP, 31x optical zoom) and XNP-C9310R (4K, 31x optical zoom) without mechanical interference or gaps. Mismatched dome covers create seams that defeat the entire protection purpose — correct fit is non-negotiable.
• TR20 screw fastening: Ensures repeatable, secure mechanical alignment on either ceiling or wall-mounted infrastructure. TR20 (Torx 20) is industrial-standard, so replacement fasteners are available from any hardware distributor if a screw is lost or damaged in the field.
• Lightweight 289g design (0.64 lb): Mounting hardware on a ceiling or wall-mounted PTZ already supports substantial wind loads and pan-tilt motor torque. This dome adds negligible structural stress, meaning no reinforcement brackets are needed — you can install on existing mounting infrastructure without modification.
• Flat optical surface: Eliminates dome distortion artifacts that curved covers introduce, especially problematic on high-zoom lenses where optical aberrations are magnified during extended zoom operation.

Compatibility & Installation

This cover is designed exclusively for the Hanwha XNP-C7310R and XNP-C9310R PTZ models. Do not force-fit on other PTZ architectures — mechanical fit and optical alignment are camera-specific. Installation is straightforward: the TR20 fastening system secures the dome to the camera's mounting bracket. No additional optical coatings, adhesives, or sealants are required — the polycarbonate itself provides the environmental barrier.

For deployment planning, confirm that your existing mounting bracket supports the combined weight of the PTZ camera and the dome cover. Both ceiling and wall mounts are compatible; pendant-mounted PTZs may require locating fasteners below the dome to prevent vibration-induced movement during pan-tilt operations.

When to Deploy This Accessory

Install the SPB-PTZ95W if your deployment includes:

• Industrial facilities with smoke, steam, or dust emissions (foundries, welding shops, food processing, manufacturing floors)
• Outdoor PTZ installations prone to salt spray, sand, volcanic ash, or road dust (coastal surveillance, desert mining operations, highway/bridge monitoring)
• High-vandalism zones where the optical surface is at risk from graffiti, paint spray, or deliberate scratching
• Applications where lens cleaning cycles are operationally expensive or disruptive (24/7 surveillance with minimal maintenance windows)
• Facilities subject to fire codes or smoke evacuation where particulate control is monitored

Skip this cover if your PTZ is mounted indoors in a climate-controlled environment with minimal particulate matter — the optical penalty (though minimal at 88–92% transmission) is unnecessary overhead in clean, stable conditions.

Integration with Existing Infrastructure

The SPB-PTZ95W integrates into any deployment already using the XNP-C7310R or XNP-C9310R. It does not affect electrical connections, PoE delivery, or network configuration — it is purely a mechanical and optical protective layer. Installation does not require camera firmware updates, recalibration, or VMS configuration changes. Mount it, tighten the TR20 fasteners, and the PTZ operates identically to before, but with protected optics.

Frequently Asked Questions

Q: Will the dome cover reduce night-vision or thermal IR performance on my PTZ?

A: The SPB-PTZ95W is transparent across the visible spectrum (88–92% transmission). If your PTZ has built-in IR illumination, the dome does not block IR wavelengths significantly. However, if you rely on external IR floodlights or thermal imaging, test the dome in your specific environment before full deployment to confirm acceptable performance.

Q: Can I use this dome cover on other Hanwha PTZ models or non-Hanwha cameras?

A: No. The SPB-PTZ95W is engineered specifically for the XNP-C7310R and XNP-C9310R. Attempting to fit it on other models will result in gaps, misalignment, or mechanical interference. Confirm your exact camera model before ordering.

Q: How often do I need to clean the dome cover?

A: That depends on your environment. In dusty or high-smoke settings, inspect the dome every 1–3 months. Polycarbonate is durable and can be cleaned with a soft microfiber cloth and mild soap — avoid abrasive or solvent-based cleaners that can degrade the material. The smoke-rated formulation repels particulates, but accumulated buildup still requires periodic maintenance.

Q: Is the dome cover field-replaceable if damaged?

A: Yes. The TR20 fastening system allows you to remove and replace the dome in the field without specialized tools. Keep replacement units on hand if your deployment is in high-risk environments.

Q: Does the SPB-PTZ95W affect the PTZ's mechanical range (pan, tilt, zoom)?

A: No. The dome is mounted to the exterior and does not interact with the internal pan-tilt-zoom mechanisms. The 289g weight is negligible compared to the camera and motor assembly, so no loss of range or speed occurs.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SPB-PTZ95W is a straightforward, purpose-built optical shield — and that's exactly what you want in a protective dome. The 88–92% light transmission spec sounds conservative until you realize it's standard polycarbonate performance. The real win is the smoke-rated formulation and the 126.5mm height profile, which balances coverage with minimal optical distortion. Too much dome material introduces aberrations that high-zoom optics magnify; too little leaves gaps where dust penetrates. This one is dialed in.

Technical Highlights:

• Polycarbonate vs. acrylic longevity: Polycarbonate resists UV-induced yellowing and crazing that acrylic develops after 2–3 years outdoor exposure. In industrial deployments with continuous sunlight or high-temperature cycles (foundries, steel mills), this is the difference between a dome that stays clear and one that becomes hazy and light-blocking.
• TR20 fastening repeatability: The Torx 20 spec is industrial-grade and available from any fastener supplier. Removes the risk of being stuck with proprietary hardware if a screw is lost or corroded. Field serviceability matters in remote or high-uptime installations.
• 289g weight load on existing brackets: You're not adding structural stress — a typical PTZ mounting bracket supports 5–10 kg with wind loads accounted for. This dome is a rounding error. No reinforcement, no redesign, drop it in.

Deployment Considerations:

• Compatibility is strict: XNP-C7310R and XNP-C9310R only. The 188.1mm OD is precision-fitted to those models. Do not attempt field adaptation on other Hanwha PTZs or competitor hardware — gaps defeat the entire point and create condensation pockets.
• Low-light gotcha: The 8–12% transmission loss is negligible in daylight but visible in night scenes with low external lighting. If your deployment relies on minimal IR assist (relying mostly on ambient light in low-lux environments), test the dome before wide rollout. Most surveillance deployments won't hit this ceiling, but it exists.
• Maintenance cost is real: The dome reduces cleaning frequency significantly, but it doesn't eliminate it. In high-smoke or high-dust zones, budget quarterly inspections and cleaning cycles. Avoid solvent cleaners and abrasive pads — stick to microfiber and mild soap.

Deploy the SPB-PTZ95W if you're installing PTZ optics in manufacturing facilities, kitchens, or coastal/desert surveillance where particulate accumulation is a real maintenance burden. It's a low-cost, low-complexity way to extend optical life and reduce unplanned downtime. Skip it if your environment is climate-controlled and clean — the optical penalty is unnecessary.
