APC by Schneider Electric Smart-ups On-line APC Smart-ups SRT 8000VA 208V - SRT8KXLT30

APC by Schneider Electric SRT8KXLT30 Smart-UPS SRT 8000VA Online Tower UPS

Overview

The APC by Schneider Electric SRT8KXLT30 sits in APC's Smart-UPS SRT line — a series built for environments where a hard shutdown is not an option. The SRT designation means true online double-conversion topology: incoming AC is continuously converted to DC and back to AC, so connected equipment never runs directly off utility power. That isolation is what separates this class from line-interactive designs and is the reason it belongs in server rooms, network closets, and any application where even a sub-millisecond transfer gap is unacceptable.

The 8000VA capacity targets mid-to-large server stacks, storage arrays, and VoIP infrastructure where a single high-draw rack or a cluster of edge compute nodes needs runtime during an outage — not just surge suppression. The 208V input/output voltage makes it compatible with standard North American three-phase-derived single-phase circuits common in data center rows and dedicated equipment panels, as well as dual-corded servers that prefer 208V over 120V for efficiency reasons.

For environments running UPS systems alongside network switching and security infrastructure, the SRT8KXLT30's position in the APC by Schneider Electric Smart-UPS SRT family means it pairs with APC Smart-UPS SRT battery packs for extended runtime when needed — a relevant consideration in remote sites or locations where utility reliability is poor. Integration with power management software enables automated graceful shutdown sequencing for connected servers, eliminating the risk of filesystem corruption during prolonged outages.

Buyers evaluating this against other rack-mount and tower UPS options should note that the SRT8KXLT30 is a tower form factor — plan floor or shelf space accordingly if rack density is a concern. For rack-constrained deployments, compare against the rackmount variants in the same SRT family before committing.

Key Features

• Online Double-Conversion Topology: The SRT8KXLT30 continuously regenerates clean, regulated output power from the inverter — load equipment is never exposed to raw utility disturbances. This matters when powering equipment with tight input voltage tolerances, such as blade servers or precision storage controllers.
• 8000VA Capacity: Sized for mid-scale server room loads — enough headroom to cover a populated rack or multiple network appliances simultaneously, with capacity to spare for load growth without immediately needing a second unit.
• 208V Voltage Rating: Matches standard data center branch circuit voltage, allowing direct connection to dual-corded 208V server PSUs and eliminating the efficiency penalty of 120V-to-208V step-up transformers.
• Extendable Runtime (XL): The XL designation in the model number indicates compatibility with external battery packs, letting you dial in runtime to match your site's required maintenance window or generator transfer time — without replacing the main unit.
• APC Smart-UPS SRT Platform: Inherits the management ecosystem of the SRT line, including network management card support for remote monitoring, load shedding, and integration with environmental monitoring and DCIM platforms.
• Commercial-Grade Build: Designed for continuous 24/7 operation in equipment rooms, not consumer-grade intermittent use — relevant when comparing against lower-cost alternatives for always-on infrastructure.

Frequently Asked Questions

Q: What is the difference between the SRT8KXLT30 and a standard line-interactive UPS at this capacity?

A: The SRT8KXLT30 uses online double-conversion topology, meaning the inverter runs continuously and load equipment is always powered from conditioned DC-derived AC — not from raw utility power with a transfer switch. Line-interactive units switch to battery on a disturbance and have a transfer time (typically 2–6ms). For servers and storage with tight power tolerance, double-conversion eliminates that gap entirely.

Q: Can the SRT8KXLT30 support extended runtime beyond its standard battery?

A: Yes. The XL designation indicates external battery pack compatibility. Additional APC Smart-UPS SRT battery packs can be connected to extend runtime beyond the internal battery's capacity — useful for sites needing longer generator transfer windows or located in areas with frequent extended outages.

Q: Is the SRT8KXLT30 compatible with APC's network management cards?

A: The Smart-UPS SRT platform supports APC network management card installation, enabling remote monitoring, scheduled shutdowns, and integration with power management software. Verify the specific card compatibility with APC's documentation for the SRT8KXLT30 before ordering a card separately.

Q: What input voltage does the SRT8KXLT30 require?

A: The SRT8KXLT30 operates at 208V. This is consistent with standard North American data center branch circuits. Confirm your facility's panel voltage before installation — this unit is not intended for standard 120V residential or light commercial circuits.

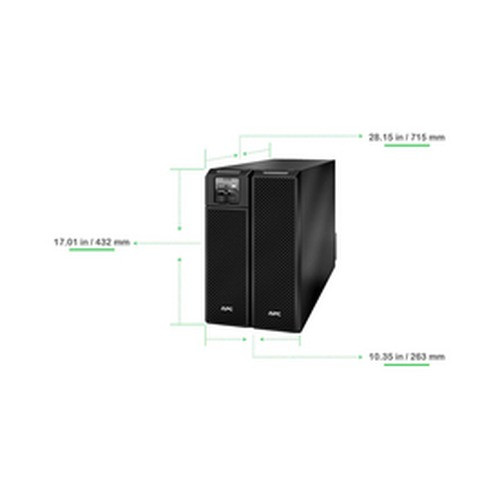

Q: What form factor is the SRT8KXLT30?

A: The SRT8KXLT30 is a tower form factor. If rack mounting is required, evaluate the rackmount variants in the APC Smart-UPS SRT family, which occupy standard EIA rack units and are better suited to populated equipment racks.
