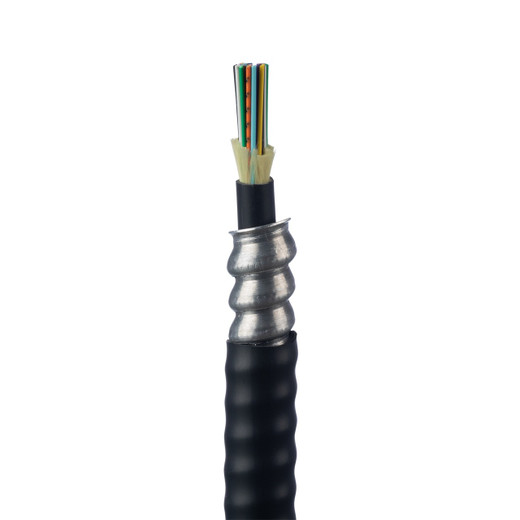

Panduit FR9TP77B001F043 12-Fiber Singlemode Plenum Interconnect Assembly

Overview

The Panduit FR9TP77B001F043 is a 12-fiber singlemode interconnect assembly purpose-built for enterprise and data center environments where routing discipline, fiber density, and building-code compliance have to coexist. At 43 ft, it covers the inter-rack and frame-to-equipment runs that shorter jumpers can't reach cleanly — without forcing the cable management compromises that lead to strained terminations and degraded signal paths. If you're standardizing a fiber optic cabling infrastructure on Panduit components, this assembly slots naturally into distribution-frame-to-active-equipment patching at backbone scale.

Key Features

• 43 ft Singlemode Assembly Length: Planned fiber routing between distribution frames and active equipment often spans distances that 1–3 m patch cords simply can't bridge without creating cable loops or strain points. The 43 ft reach lets you route through trays, overhead pathways, and between rack rows without compromise — this is the length you specify when the layout is drawn first and the cable is cut to fit.
• 12-Fiber Construction: A single FR9TP77B001F043 carries 12 discrete fibers in one routed assembly, which matters in high-density plant layouts where available conduit fill and tray space are fixed. Consolidating 12 circuits into one managed assembly reduces clutter, simplifies labeling, and keeps bend radius under control across the full run length.
• Singlemode (OS2) Signal Type: Singlemode fiber supports long-distance, low-attenuation transmission — the right choice for campus backbone links, inter-building runs, and any architecture where multimode's shorter reach would require an active repeater or transceiver upgrade. Pairing this assembly with OS2-compatible transceivers preserves the full distance budget of your singlemode plant without introducing mode-mismatch penalties.
• Plenum-Rated Jacket: Installation in air-handling spaces — ceiling plenums, raised-floor return paths, and HVAC-adjacent cable trays — requires a jacket rated for low smoke and flame propagation. This assembly's plenum construction aligns with commercial building codes that govern cable routing through air-handling zones, removing the need for conduit exceptions or substitute rerouting in affected spaces.
• Female-to-Female Termination: The female-to-female connector format is designed for use with compatible fiber hardware — patch panels, adapter plates, and bulkhead couplers — rather than direct equipment connection. This makes it the correct choice for structured cabling architectures that rely on a modular patching layer, where the assembly bridges two panel ports rather than plugging directly into a switch or transceiver cage.
• Polished Connector End Finish: Polished fiber ends reduce insertion loss and back-reflection at the termination interface. In a 12-fiber assembly running singlemode signals, end-face quality at every connector directly affects the link budget — a polished finish is the standard for production-quality interconnect assemblies intended for mission-critical infrastructure, not field-terminated temporary links.
• Panduit Fiber Ecosystem Compatibility: Specifying this assembly as part of a broader Panduit structured cabling deployment — alongside Panduit fiber cassettes, enclosures, and distribution frames — provides a consistent termination interface and simplified interoperability. Mixed-vendor fiber assemblies introduce connector-geometry variables that polished Panduit terminations are designed to eliminate within a standardized plant.

Integration & Compatibility

The FR9TP77B001F043 is designed for structured cabling architectures that use modular fiber distribution frames, cassette-based enclosures, and adapter-plate bulkheads. The female-to-female connector format requires compatible fiber hardware at both ends — verify adapter plate or coupler compatibility with your distribution frame before specifying this assembly in place of a standard patch cord. It is suited for linking fiber distribution frames to active equipment in data center environments, connecting backbone segments across adjacent rack rows, and routing through plenum-rated building spaces in enterprise facilities. For teams building or extending a network infrastructure backbone on singlemode fiber, this assembly supports the patching layer between trunk cable terminations and active ports without introducing additional splice points or field-termination variables. Pair with compatible fiber cassettes and enclosures to complete the distribution frame assembly.

Frequently Asked Questions

Q: What connector type does the FR9TP77B001F043 use?

A: The FR9TP77B001F043 uses a female-to-female connector configuration with a polished end finish. It is designed for use with compatible fiber hardware such as adapter plates, bulkhead couplers, and patch panel ports — not for direct insertion into switch transceivers or SFP cages.

Q: Is this assembly rated for installation in air-handling ceiling spaces?

A: Yes. The FR9TP77B001F043 carries a plenum-rated jacket, which meets the low-smoke and flame-propagation requirements for installation in air-handling spaces including ceiling plenums and raised-floor return paths. Verify local building code requirements before installation.

Q: What fiber type does this assembly use — multimode or singlemode?

A: This is a singlemode fiber assembly. Singlemode is appropriate for longer-distance, low-attenuation links such as campus backbone runs and inter-building connections. If your active equipment uses multimode-only transceivers, this assembly is not compatible — confirm transceiver type before ordering.

Q: How many fibers does this assembly contain?

A: The FR9TP77B001F043 contains 12 fibers in a single routed assembly, supporting high-density patching scenarios where consolidating multiple fiber circuits into one managed cable reduces tray fill and simplifies cable management.

Q: Can this assembly be used for a direct patch cord connection between a switch and a server?

A: The female-to-female connector format is designed for panel-to-panel or frame-to-frame patching within a structured cabling architecture, not for direct equipment-to-equipment connections. Direct equipment links typically require a male-terminated patch cord. Use this assembly in the distribution or backbone layer of a modular fiber plant.

Q: Is the 43 ft length the only option available in this assembly family?

A: The FR9TP77B001F043 is specified at 43 ft. Panduit's fiber interconnect line includes assemblies in a range of fiber counts and lengths — if 43 ft does not match your planned routing path, consult the broader Panduit fiber assembly catalog for alternate lengths in the same family.

James Everett

The FR9TP77B001F043 is one of those assemblies that looks straightforward on paper but resolves a genuinely tricky design constraint: you need 12 singlemode circuits routed 43 ft through a plenum space, and you need them terminated cleanly without field splices or non-rated jacket sections. This assembly handles all three requirements in a single factory-built unit, which matters when the project has an AHJ inspection at the end of it.

Technical Highlights:

• 43 ft Plenum-Rated Length: Most inter-rack and backbone runs through ceiling plenums or raised-floor return paths fall in the 30–50 ft range. A factory-built 43 ft plenum assembly eliminates the field-termination variables and jacket-rating uncertainty that come with cut-to-length approaches — the jacket compliance and end-face quality are built in.
• 12-Fiber Density in a Single Assembly: Running 12 circuits as one routed assembly rather than 12 individual patch cords reduces tray fill, simplifies bend radius management along the full 43 ft path, and cuts labeling complexity at both ends — a real operational advantage in dense data center rows where available pathway fill is already constrained.
• Polished Female-to-Female Terminations: Polished end faces are the production standard for singlemode interconnects — unpolished or field-polished ends introduce insertion loss variability that compounds across a 12-fiber plant. The female-to-female format locks this assembly into the patching layer of a structured plant, where it bridges two adapter ports rather than connecting directly to active equipment.

Deployment Considerations:

• Confirm that both termination points — distribution frame, cassette enclosure, or bulkhead panel — use adapter plates or couplers compatible with the female connector format on this assembly before routing it. Pulling 43 ft of 12-fiber cable through a finished plenum pathway to discover a connector mismatch at the far end is an expensive correction.
• Singlemode transceivers are required at both ends of any link using this assembly. If your active equipment is provisioned with multimode SFPs, this cable will not operate correctly — mode mismatch on singlemode fiber is not recoverable without swapping the transceiver, not the cable.

This assembly is the right specification for enterprise data center backbone patching and campus inter-building distribution frames where the routing path passes through air-handling spaces, the fiber count justifies a bundled assembly over individual patch cords, and the structured cabling standard calls for factory-terminated singlemode interconnects throughout the plant.
