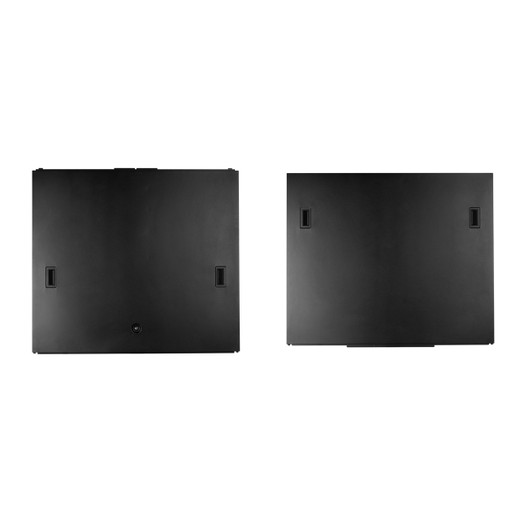

Panduit XG-SPFS422B FlexFusion Side Panel Set for 42RU x 1200mm Cabinets

The Panduit XG-SPFS422B side panel set delivers full-height enclosure coverage for 42RU FlexFusion cabinets with 1200mm depth, addressing cable management visibility, security access control, and hot-aisle/cold-aisle containment requirements in enterprise data centers. This two-piece kit includes precision-fit upper and lower side panels that mount directly to FlexFusion cabinet rails, eliminating gaps where cabling can escape visual inspection or where environmental separation fails. Black powder-coat finish integrates with standard FlexFusion aesthetics while meeting RoHS material compliance for equipment deployed in EU and California markets.

Key Features

Complete side coverage for 42RU x 1200mm FlexFusion cabinets with upper and lower panel sections

Precision-engineered fit for FlexFusion rail geometry — no field drilling or custom bracket fabrication

Black powder-coat finish matches standard FlexFusion cabinet exterior

RoHS compliant construction meets EU and California e-waste material restrictions

Single-package solution — both panels ship together, reducing procurement and receiving overhead

Data center operators running hot-aisle/cold-aisle containment systems require full cabinet closure to maintain pressure differentials and prevent bypass airflow that degrades cooling efficiency. The XG-SPFS422B eliminates the most common breach point — open side panels where cable routing or equipment access has removed factory covers. Upper and lower sections span the full 42RU height without seams at mid-rack, preventing thermal short-circuiting where warm exhaust air recirculates into cold aisles. When installed on both sides of a cabinet row, these panels create a sealed corridor that forces all airflow through IT equipment, maximizing the effectiveness of in-row or overhead cooling systems and reducing compressor runtime.

FlexFusion cabinets use a proprietary rail profile that standard third-party panels cannot mount to without adapter brackets or field modification. The XG-SPFS422B ships with pre-drilled mounting holes aligned to FlexFusion vertical rail spacing, allowing tool-free clip installation or rapid screw-mount attachment depending on whether the cabinet uses snap-in or threaded mounting points. The 1200mm depth specification ensures front-to-back panel length matches the cabinet frame exactly — critical when side panels must clear door hinges, rear cable managers, or vertically mounted PDUs without interference. Installers working on mixed-depth cabinet rows should verify each cabinet depth measurement; Panduit manufactures separate panel SKUs for 1070mm and 1200mm depths that are not interchangeable.

RoHS compliance (Restriction of Hazardous Substances Directive 2011/65/EU) restricts lead, mercury, cadmium, hexavalent chromium, and brominated flame retardants in electrical enclosures sold into European Union member states and California public-sector projects. The XG-SPFS422B meets these thresholds, allowing data centers serving EU customers or operating under California Public Contract Code Section 12400-12404 to deploy the panels without triggering material compliance violations. Facilities maintaining ISO 14001 environmental management certification can document RoHS compliance in their equipment procurement records, satisfying auditor requirements for hazardous material tracking.
