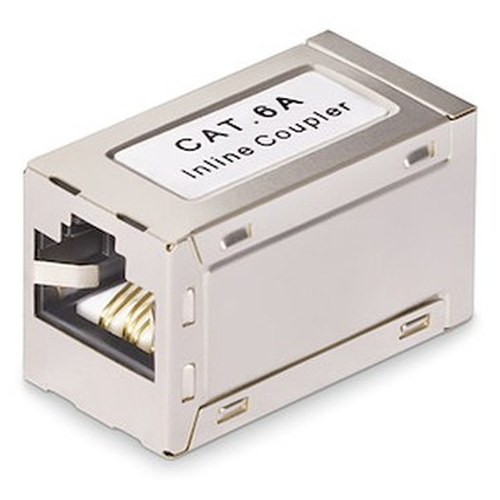

StarTech IN-CAT6A-COUPLER-S1 Shielded Cat6a Inline RJ45 Coupler

The StarTech IN-CAT6A-COUPLER-S1 is a shielded, female-to-female RJ45 inline coupler designed to join two Cat6a patch cables end-to-end while preserving 10 Gbps performance up to the full 328 ft (100 m) channel limit. Where a single cable run falls short or a terminated drop needs extending without re-pulling cable, this coupler bridges the gap without downgrading your link speed. Gold-plated contacts, an ABS metal hybrid housing, and a T568B pinout make it a field-reliable solution for structured cabling extensions in server rooms, surveillance backbones, and data closets.

Key Features

• 10 Gbps at Full Cat6a Channel Length: Supports IEEE 10GBase-T speeds to 328 ft (100 m) — the complete Cat6a channel budget. That means you can extend a run to the maximum supported distance without throttling your link to 1 Gbps, which matters when the coupler is in the path of a PoE++ camera feed or a 10G NAS connection.
• Shielded Housing for EMI-Prone Environments: The ABS metal housing provides shielding continuity between the two cables, blocking electromagnetic interference from nearby power conduits, HVAC equipment, or lighting ballasts. In industrial or warehouse environments where unshielded couplers cause packet errors and retransmits, this distinction is operationally significant.
• Gold-Plated RJ45 Contacts: Gold plating resists oxidation at the contact surface, which is the most common failure point in inline couplers over time. In environments with humidity cycling between 30–70% — the specified operating range — bare copper contacts corrode and cause intermittent link drops. Gold contacts avoid that.
• T568B Pinout — Industry Standard Wiring: The T568B wiring standard is the most widely deployed pinout in North American commercial installations. Connecting two T568B-terminated cables through this coupler maintains pin-for-pin continuity with no crossover, no re-termination, and no wiring adapter needed.
• Compact Form Factor: At 1.2 in × 0.6 in × 0.8 in (3.1 cm × 1.6 cm × 2.0 cm) and 0.2 oz (6 g), the IN-CAT6A-COUPLER-S1 fits inside surface raceway channels, keystone patch panels, and conduit pull boxes without adding meaningful bulk. Useful when working in tight network closets or within cable management trays already at capacity.
• Operating Temperature Range -20°C to 65°C (-4°F to 149°F): Rated for environments that dip below freezing — outdoor-rated enclosures, parking structure pull boxes, or unheated utility spaces where temperatures fluctuate seasonally. The storage range extends to -25°C / 75°C, so pre-staging inventory in a non-climate-controlled warehouse won't affect unit integrity.
• Lifetime Warranty: StarTech covers the IN-CAT6A-COUPLER-S1 with a lifetime warranty — appropriate for passive infrastructure hardware that is typically installed and forgotten. No scheduled replacement cycles, no warranty tracking against a service contract.

Integration and Compatibility

The IN-CAT6A-COUPLER-S1 is passive — it requires no configuration and introduces no latency beyond the physical propagation delay of the connection. It works with any Cat6a-rated cable terminated to RJ45 T568B on both sides. Because it is a shielded coupler, best practice is to pair it with shielded Cat6a (STP or F/UTP) cable throughout the run; mixing shielded and unshielded cable on either side of the coupler will compromise the shielding continuity the metal housing provides.

For IP camera deployments where a cable run from a PoE switch falls just short of a camera mounting point, this coupler lets you splice in a short patch without re-pulling the run. It handles PoE and PoE+ current loads without thermal or impedance issues at standard operating conditions. Verify that your total channel length — both cable segments combined — does not exceed 328 ft (100 m), which is the hard ceiling for Cat6a regardless of coupler quality.

In network switch uplink closets, the coupler is useful for temporary cross-connects, training lab setups, and lab bench testing environments where patch lengths vary and permanent termination is not practical. See our network cabling guide for structured cabling planning considerations when building out camera backbone infrastructure.

Frequently Asked Questions

Q: Will the IN-CAT6A-COUPLER-S1 support 10 Gbps speeds?

A: Yes. The coupler is rated for 10 Gbps data transfer up to the full Cat6a channel length of 328 ft (100 m), provided both cable segments are Cat6a-rated and the combined run does not exceed that limit.

Q: Does the shielding on this coupler require grounding?

A: To get the full benefit of the shielded housing, both cable segments connected to the coupler should be shielded Cat6a (STP or F/UTP), and the shielding should be grounded at one end of the channel per standard structured cabling practice. Using unshielded cable on either side diminishes the EMI protection the metal housing provides.

Q: What is the pinout on the IN-CAT6A-COUPLER-S1?

A: The coupler uses a T568B pinout, which is the standard for the majority of commercial and enterprise network installations in North America. Both connected cables must also be terminated to T568B for proper pin-to-pin continuity.

Q: Can I use this coupler outdoors or in unheated spaces?

A: The operating temperature range is -20°C to 65°C (-4°F to 149°F), which covers most unheated indoor environments and protected outdoor enclosures. It is not rated for direct exposure to rain or submersion — house it in a weatherproof enclosure if the installation point is exposed to moisture.

Q: What warranty does the IN-CAT6A-COUPLER-S1 carry?

A: StarTech covers this coupler with a lifetime warranty.

Q: Does this coupler work with Cat5e or Cat6 cable?

A: Physically it will mate with any standard RJ45 connector, but the coupler is rated and tested to Cat6a performance specifications. Using it with Cat5e or Cat6 cable will limit your link performance to the rating of the lower-spec cable — you won't get 10 Gbps at distance on Cat5e regardless of the coupler.

Marty Allison

The detail I keep coming back to on the IN-CAT6A-COUPLER-S1 is the shielded metal housing paired with gold-plated contacts — that combination is what separates a coupler you install and forget from one you're back to troubleshoot in six months. In camera backbone runs where the coupler ends up inside a ceiling plenum or a wall-mount enclosure, oxidation and EMI are the two failure modes you're guarding against, and StarTech addressed both here.

Technical Highlights:

• 10 Gbps to 100 m: Full Cat6a channel performance is preserved end-to-end — no speed penalty at the splice point, which matters when the coupler sits in the path of a 10GBase-T uplink or a high-bitrate multi-stream camera feed.
• Shielded ABS Metal Housing: Provides EMI continuity between segments, critical in environments with dense electrical infrastructure — industrial floors, parking structures, mechanical rooms — where unshielded inline connections generate noise-related retransmits.
• Operating Range -20°C to 65°C: Covers unheated utility spaces and protected outdoor junction boxes without needing a climate-controlled enclosure, which simplifies installation in edge locations on large campuses or warehouse perimeters.

Deployment Considerations:

• Always verify that the combined length of both cable segments does not exceed 328 ft (100 m) total — the Cat6a channel limit applies to the whole run, not each segment independently. Exceeding it will drop your 10G link or prevent it from training up at all.
• The shielding is only as good as your cable selection: if one or both segments are unshielded Cat6a (UTP), you lose the EMI benefit of the metal housing entirely. Specify F/UTP or S/FTP Cat6a throughout when EMI is the concern.

This coupler fits best in structured cabling extensions for IP camera drops in commercial or light industrial facilities — specifically where a pre-terminated cable run comes up short of the mounting point and re-pulling the run through conduit isn't practical. The lifetime warranty means it belongs in permanent infrastructure, not temporary setups.
