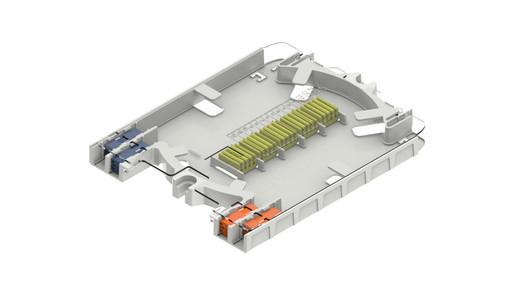

Panduit OFC40SST Fiber Optic Splice Tray

The Panduit OFC40SST is a 40-fiber splice tray engineered for high-density fusion splice organization in telecom closets, data centers, and enterprise fiber distribution frames. Built to Telcordia GR-771-CORE standards, this tray provides secure splice protection and strain relief in cabinets, wall boxes, and rackmount enclosures where fiber patch panels terminate backbone or horizontal cabling. The black thermoplastic housing includes integrated splice holders and routing channels that prevent minimum bend radius violations during service or moves/adds/changes—critical for maintaining insertion loss spec on single-mode and multimode trunk lines feeding IP camera networks, access control systems, and building infrastructure.

Key Features

• 40-fiber splice capacity with molded splice holders and protective cover
• Telcordia GR-771-CORE compliant for carrier-grade reliability
• Black housing integrates into standard fiber enclosures and patch panel systems
• Routing channels maintain 30mm minimum bend radius per TIA-568 requirements
• Stackable design for multi-tray installations in limited cabinet depth
• Compatible with 250µm bare fiber and 900µm tight-buffered pigtails

Fusion splice points are the most vulnerable element in any fiber run—inadequate protection leads to service-affecting fiber breaks during cabinet work or accidental tray removal. The OFC40SST addresses this with a hinged cover that locks splice holders in place and prevents lateral movement. Each splice position includes a dedicated strain relief channel that secures the 900µm buffer tube or 250µm fiber, transferring pull force to the holder rather than the splice itself. This is essential in security installations where a single backbone fiber may carry 20+ IP camera VLANs or serve as the primary uplink for an access control network across multiple buildings. A mid-span failure during a service call can take down an entire site until a fusion splicer and technician arrive.

The tray mounts in Panduit fiber enclosures, universal 19-inch rack chassis, and wall-mount termination boxes via integrated snap clips or screw tabs. Stacking tabs on the tray base allow vertical chaining without additional hardware—critical in retrofit projects where cabinet depth is fixed and you're adding capacity to an existing fiber build. The black finish matches standard telecom and datacenter equipment, and the open routing design allows visual inspection of splice condition and fiber dress without removing the cover. Telcordia GR-771-CORE compliance confirms the tray has passed mechanical shock, thermal cycling, and humidity tests that simulate 20-year service life in central office and outside plant environments, which is overkill for most enterprise installs but ensures zero maintenance failures in mission-critical deployments.

Designed for 40 splices per tray, the OFC40SST scales from small single-mode distribution points (8-12 fibers serving a few floors) up to high-density aggregation nodes in datacenter meet-me rooms where backbone trunks break out to individual server racks or camera head-end equipment. Cross-compatible with Panduit's modular fiber enclosure family and third-party 19-inch chassis that follow industry-standard mounting dimensions. Single-unit packaging includes the tray and cover; splicing consumables (heat-shrink protectors, alcohol wipes, cleave tools) are sourced separately per your fusion splice platform.
