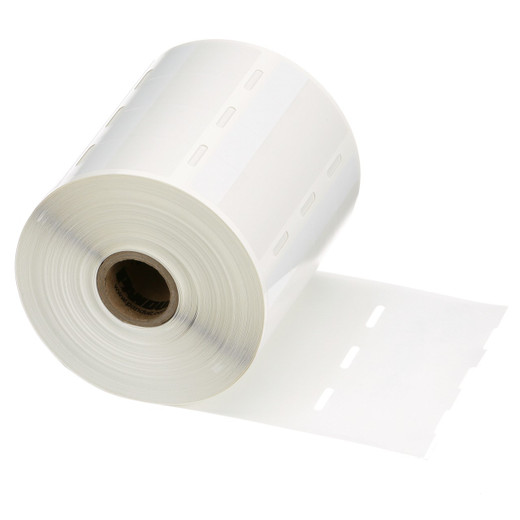

Panduit S100X150VA1Y Self-Laminating Vinyl Label

Panduit S100X150VA1Y delivers 2,500 thermal-transfer self-laminating labels engineered for permanent wire and cable identification in access control, IP camera, and data-center installations. Each 1.5\" × 1\" label features a 1\" white printable area with a 0.5\" transparent overlaminate that wraps and seals printed text against abrasion, moisture, and UV exposure. Vinyl construction remains conformable around 22–10 AWG conductors while resisting oils and solvents common in telecom closets and industrial control panels.

Key Features

• 2,500 labels per roll — 1.5\" × 1\" (38.1 mm × 25.4 mm) with 1\" × 0.5\" print-to-laminate split
• Self-laminating design — transparent overlaminate bonds over printed text to lock out moisture, chemicals, and edge-peel
• Thermal-transfer compatible — pairs with Panduit TDP/TMP-series printers and third-party Zebra/Brady TT desktop units
• Vinyl substrate — thin-gauge material conforms to curved bundle surfaces and indoor cable trays without cracking
• UL969 Recognized (File MH14979) and cUL Recognized (C22.2 No.0.15-01) — meets marking durability standards for UL-listed assemblies
• 65°C (150°F) continuous-use rating — qualified for IT rooms, network closets, and general-purpose AV racks
• 1\" (25.4 mm) core diameter — fits Panduit desktop printers and most aftermarket label dispensers

The 1\" printable zone accommodates three lines of 8-pt text or two lines at 12-pt, supporting structured cabling schemes that encode rack/panel/port or device/circuit/date. The 0.5\" laminate tail wraps 180° around conductors as small as 22 AWG, leaving no exposed adhesive to collect dust or leave residue on adjacent cables. Vinyl's low-profile thickness (under 4 mil total) prevents snagging in high-density patch panels and allows labels to nest tightly in cable combs. The clear laminate film is UV-stabilized for skylighted equipment rooms and resists isopropyl alcohol, ensuring labels survive routine panel cleaning during MAC cycles.

Thermal-transfer printing burns pigment into the vinyl layer rather than sitting on the surface, so barcodes and QR codes remain scannable after years in service. The 2,500-label roll reduces mid-job reloads on large deployments—enterprise IP camera retrofits often consume 600–1,200 labels across head-end NVRs, PoE switches, and field junction boxes. Installers targeting NEC 725/800 compliance or BICSI TDMM labeling standards will find the print area wide enough for required legends (circuit ID, voltage class, origination panel) without abbreviating into ambiguity. The 1\" core ships ready for Panduit TDP43ME and TDP46ME printers; Brady BMP21-PLUS and Zebra ZD420t units require a spindle adapter (not included).

UL969 Recognition confirms the label adhesive, printability, and laminate integrity meet the marking requirements referenced in UL 2416 (splitter/combiner), UL 2043 (plenum devices), and UL 60950-1 (IT equipment) when installed per the manufacturer's datasheet. The 65°C rating qualifies the label for NEC Class 2 circuits and general-purpose IT spaces; it is not rated for outdoor or direct-burial use. Integrators wiring access-control panels, PoE lighting controllers, or IP intercom systems will appreciate that the label's white background preserves legibility under amber EMT-closet lighting, and the vinyl backing resists tearing when pulled tight around bundled Cat6A or RG6 coax during demarc handoffs.
