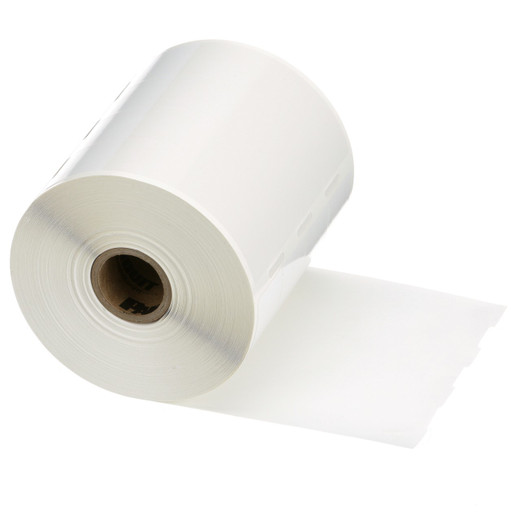

Panduit S200X225VA1Y Self-Laminating Thermal Transfer Wire and Cable Labels

Overview

The Panduit S200X225VA1Y is a thermal-transfer self-laminating vinyl label engineered specifically for wire and cable identification in structured cabling, panel wiring, and industrial installations. Each label measures 2 inches wide by 2.25 inches long with a 0.75-inch printable white zone and a clear protective overlaminate that wraps around the conductor — keeping printed text legible even in environments with oils, moisture, and abrasion. A single package contains 500 labels, making this an efficient stock-up choice for installers and contractors running high volumes of terminations. The S200X225VA1Y is compatible with Panduit's Easy-Mark Plus labeling software and TDP desktop thermal-transfer printers, integrating cleanly into a managed labeling workflow without manual pre-cutting or field modification.

Key Features

• Self-Laminating Construction: The clear overlaminate portion folds over and encapsulates printed text after the label wraps around the wire. This physical protection matters in cable trays, junction boxes, and industrial panels where labels face repeated contact — printed text stays readable for the life of the installation rather than rubbing off within a year.
• 2" x 2.25" Format with 0.75" Print Height: The 50.8 mm x 57.2 mm overall footprint is sized for medium-gauge wire and patch cable applications. The 0.75-inch printable height accommodates both alphanumeric identifiers and barcodes in a single pass, which is useful when your cable management system relies on scannable IDs rather than just human-readable text.
• Vinyl Material: Vinyl outperforms paper labels in humidity, chemical exposure, and flex cycles. In data center hot-aisle environments or industrial control panels with cleaning solvents present, vinyl holds adhesion and legibility where paper-based alternatives fail within months.
• Thermal Transfer Print Method: TT printing produces sharp, high-contrast text with ribbon-deposited resin or wax-resin ink — substantially more durable than direct thermal, which fades under UV and heat. For permanent infrastructure labels that need to last the duration of a lease or a facility's operating life, thermal transfer is the correct choice.
• 500-Label Pack Quantity: At 500 labels per pack, this format suits project-scale deployments — rack builds, data center fit-outs, structured cabling pulls — where a 10- or 25-label trial pack creates unnecessary reorder overhead. Order one pack per 400–450 terminations to allow for test prints and reprints.
• UL 969 Recognized + cUL Recognized: UL 969 is the standard for Marking and Labeling Systems — recognition under this standard means the label materials and print method have been evaluated for legibility, adhesion, and durability under the conditions defined in the standard. cUL recognition (C22.2 No. 0.15-01, File MH14979) extends that evaluation to Canadian installations, so this label works without substitution across US and Canadian projects.
• RoHS Compliant: Hazardous substance restrictions are increasingly part of customer and facilities specifications, particularly in government, healthcare, and European-destined equipment builds. RoHS compliance on consumables like labels is often overlooked at procurement but flagged at project closeout — this label clears that gate.
• Easy-Mark Plus and TDP Printer Compatibility: Panduit's Easy-Mark Plus software manages label templates, sequential numbering, and barcode generation in a workflow designed for network and electrical installers rather than generic print shops. Pairing S200X225VA1Y stock with a TDP printer and Easy-Mark Plus eliminates manual sizing and alignment, reducing per-label labor time on large installs.

Integration and Compatibility

The S200X225VA1Y is designed for use with Panduit TDP-series desktop thermal-transfer printers and Easy-Mark Plus labeling software. The label dimensions and format are pre-configured in Easy-Mark Plus, so no manual media setup is required — load the stock, select the label template, and print. For shops already running a Panduit Panduit labeling and identification ecosystem, this label integrates without additional configuration. The self-laminating format is specific to wire and cable wrap applications; it is not intended for flat-surface panel labeling, asset tagging, or patch panel face plates — use a flat-format label for those applications. The competitor cross-reference for this label is Brady B33-26-427, which can be useful when sourcing decisions involve existing Brady printer infrastructure, though printer compatibility should be verified before substituting. These labels belong to the broader signs, labels, and identification category and pair naturally with cable management hardware on the same project. For printer selection guidance, review the label printer options to confirm TDP compatibility with your media thickness and ribbon type.

What's in the Box

• 500x Panduit S200X225VA1Y self-laminating thermal-transfer vinyl labels (2" x 2.25", 0.75" print height, white/clear)

Frequently Asked Questions

Q: What printers are compatible with the S200X225VA1Y?

A: The S200X225VA1Y is designed for use with Panduit TDP-series desktop thermal-transfer printers and Easy-Mark Plus labeling software. Verify media thickness and ribbon compatibility before use with third-party thermal-transfer printers.

Q: What does the self-laminating design actually protect against?

A: The clear overlaminate wraps over the printed white section after the label is applied to a wire or cable, physically encapsulating the ink. This protects printed text from abrasion, moisture, oils, and cleaning solvents — conditions common in industrial panels, cable trays, and data center environments.

Q: Is the S200X225VA1Y UL listed for wire and cable marking?

A: Yes. The S200X225VA1Y is UL 969 Recognized (File MH14979) for Marking and Labeling Systems, and cUL Recognized under C22.2 No. 0.15-01 (File MH14979) for Canadian installations. It is also RoHS compliant.

Q: How many labels come in one package, and what is the label size?

A: Each package contains 500 labels. Overall label dimensions are 2 inches wide by 2.25 inches long (50.8 mm x 57.2 mm), with a 0.75-inch printable white area and a clear overlaminate zone.

Q: Can these labels be used for flat-surface or asset-tag applications?

A: No. The S200X225VA1Y is a wrap-around self-laminating format sized and structured for wire and cable identification. For flat-surface panel labels, asset tags, or patch panel face plates, a different label format is appropriate.

Q: What is the Brady cross-reference for S200X225VA1Y?

A: The listed competitor cross-reference is Brady B33-26-427. Confirm printer and software compatibility before substituting, as label dimensions and core specifications may differ between manufacturers.

Karl Wilson

The S200X225VA1Y sits in a specific but important niche: it's the right label when you need a wrap-around self-laminates that hold up over years, not months. The 0.75-inch print height is enough to barcode and label in a single pass, which cuts labeling time per termination noticeably on large structured cabling projects. I've seen installers try to stretch smaller-format labels on medium-gauge cable and end up with overlaminate that doesn't fully close — the 2-inch width on this format closes cleanly on the cable diameters it's sized for.

Technical Highlights:

• UL 969 / cUL Recognition (File MH14979): This is the standard specifically for marking and labeling systems — not a generic materials certification. It matters on projects where the electrical inspector or commissioning agent checks label permanence and legibility standards. Both US and Canadian recognition from a single SKU simplifies cross-border project procurement.
• Thermal Transfer Print Method: The TT requirement means you need a ribbon-based printer, not a direct thermal unit. That's a harder consumable to manage but produces ink that resists heat and UV degradation. For labels that need to outlast a 10-year infrastructure warranty period, TT is the only defensible choice.
• 500-Pack Format: At 500 per pack, the per-label unit cost drops significantly versus smaller packs. For a 48-port patch panel build with redundant labeling at both ends, you're looking at roughly 100 labels per cabinet — five cabinets per pack. Order accordingly rather than running short mid-project.

Deployment Considerations:

• Verify your TDP printer model supports the 2" x 2.25" media size before ordering in bulk. Easy-Mark Plus has pre-built templates for this label, but if your shop runs a different labeling software, you'll need to configure the template manually to match the 0.75-inch printable height and overlaminate zone precisely.
• The self-laminating wrap is sized for specific wire gauge ranges — on very thin conductors (e.g., 22 AWG signal wire), the overlaminate may not close flush. Check Panduit's wire gauge compatibility chart for this label format before specifying it across a mixed-gauge installation.

For a data center structured cabling deployment or industrial control panel build where UL 969 compliance is a specification requirement and labels need to survive five or more years in a panel environment, the S200X225VA1Y is the correct consumable to specify — not a generic vinyl label from a general office supply source.
