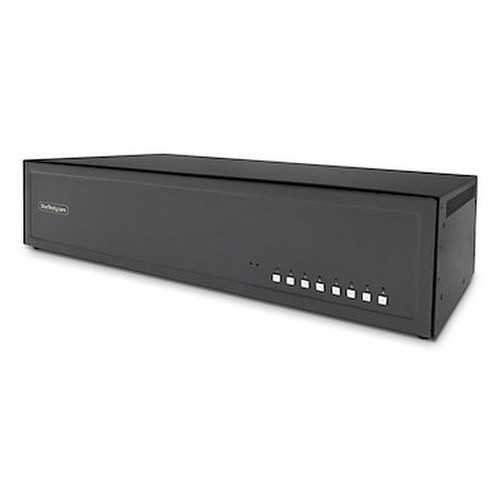

StarTech CK4-P208C 8-Port Dual-Monitor Secure DisplayPort KVM Switch

Overview

The StarTech CK4-P208C is an 8-port, dual-monitor KVM switch built for secure environments where operators need to control multiple classified or sensitive workstations from a single console without risking cross-contamination between domains. With DisplayPort video at 4K 60Hz, NIAP Protection Profile 4.0 certification, and an all-metal chassis, this is a purpose-built peripheral control device for government, defense, intelligence, and regulated enterprise deployments — not a general-purpose desktop switch. If your use case involves SCIF environments, cross-domain workstation management, or compliance mandates around peripheral isolation, the CK4-P208C (often searched as CK4 P208C) belongs on your shortlist.

For integrators speccing out StarTech KVM and peripheral switching solutions, this model sits at the high-security end of the portfolio — distinct from standard desktop KVMs by its NIAP 4.0 certification requirement and construction-grade housing. Browse the broader secure KVM switch category if you need to compare port counts or single-monitor variants before committing.

Key Features

• NIAP Protection Profile 4.0 Certification: NIAP PP 4.0 is the current U.S. government standard for peripheral sharing devices used in classified environments. Certification means the switch has passed independent security evaluation for data path isolation — a hard requirement for many federal procurement vehicles. Without NIAP 4.0, a KVM simply cannot be deployed in many DoD, IC, or classified contractor environments regardless of price or brand.
• 8 KVM Ports / Dual-Monitor Output: Eight host ports give an operator control of up to eight separate workstations or virtual machines from one console seat. The dual-monitor configuration — supported through 16 USB 2.0 Type-B host connectors (two per host) — means each connected PC can drive two displays simultaneously, so operators running multi-screen workflows don't have to collapse their desktop layout when switching contexts. This matters in command-and-control, financial trading, and intelligence analysis environments where screen real estate is part of the workflow.
• 4K 60Hz DisplayPort Video: DisplayPort at 3840×2160 and 60Hz delivers full-resolution output without downscaling or frame-rate penalties. For analysts working with high-resolution geospatial imagery, detailed schematics, or multi-stream video feeds, this prevents the visual compromise that lower-bandwidth KVM solutions introduce. Confirm your monitors and graphics cards also support 4K 60Hz over DisplayPort — the KVM won't be the bottleneck, but cabling and endpoint support can be.
• USB 2.0 Console Interface (3x Type-A): Three USB 2.0 Type-A ports on the console side accommodate keyboard, mouse, and a third USB peripheral (smart card reader, CAC reader, or authentication token) without requiring a hub. In CAC-authenticated environments this is particularly useful — no external hub introduces an unmanaged USB path into the console.
• All-Metal Chassis: The metal enclosure isn't just durability — it contributes to EMI shielding in RF-sensitive environments and meets the physical robustness expectations of rack-adjacent or console-furniture mounting in ops center installations. At 6.9 lb and 17.0 × 8.7 × 8.7 inches, it's sized for a dedicated shelf or console surface, not a desktop corner.
• Operating Temperature 0°C to 40°C: Standard commercial operating range covers conditioned data center and operations center environments. If your installation is in an unconditioned space or extreme environment, verify HVAC before deploying — this switch is not rated for extended operation outside this band.
• 3-Year Manufacturer Warranty: A 3-year warranty on a secure KVM reflects the expected service life in an enterprise or government installation — long enough to cover most refresh cycles without out-of-warranty exposure in year two or three.

Integration and Compatibility

The CK4-P208C connects to host systems via USB 2.0 Type-B (16 ports total, two per host) for keyboard, mouse, and USB peripheral emulation. The DisplayPort video interface is the key compatibility gate: host workstations must have DisplayPort outputs (or active DP adapters), and console monitors must accept DisplayPort input at the target resolution. In cross-domain switch deployments, pairing this unit with a compatible CAC reader or authentication peripheral on the third console USB port is a common configuration for CAC-enforced login workflows.

For operators running multiple secure workstations across classification levels, review your facility's configuration management requirements around KVM use — NIAP 4.0 certification addresses the hardware security posture, but site-specific SOP and ATO processes govern how the switch is authorized for deployment in a specific environment. Consult your security architect or AO before assuming certification alone equals authorization.

When planning the broader console infrastructure, a review of compatible KVM accessories and extenders is worth doing early — cable runs from host workstations to the switch, especially in raised-floor data rooms, can impose practical limits on port utilization. Also factor in rack shelf and console furniture options appropriate for the 17-inch footprint of this unit.

Frequently Asked Questions

Q: What does NIAP Protection Profile 4.0 certification mean for the CK4-P208C?

A: NIAP PP 4.0 is the current U.S. government security standard for peripheral sharing devices (keyboards, mice, video) used across multiple classification levels or security domains. It means the CK4-P208C has been independently evaluated and certified to provide data path isolation between connected hosts — a mandatory requirement for many DoD, intelligence community, and classified contractor deployments. It is not a general-purpose security label; it specifically qualifies the device for use in secure compartmented or cross-domain environments where standard KVMs are prohibited.

Q: Can the CK4-P208C drive two monitors per connected PC at full 4K 60Hz?

A: Yes. The switch provides dual-monitor output and supports up to 4K at 60Hz over DisplayPort. Each of the 8 connected hosts can run two displays through the switch. Both the host GPU and the connected monitors must also support 4K 60Hz over DisplayPort for you to realize the full resolution — the switch itself is not the limiting factor if endpoints are properly specified.

Q: How many USB peripherals can I connect to the console side of the CK4-P208C?

A: The console interface provides 3 USB 2.0 Type-A ports — enough for keyboard, mouse, and one additional device such as a CAC/smart card reader or authentication token. If you need more console-side USB ports, an external hub would be required, though adding unmanaged USB paths in a NIAP-certified deployment may conflict with your site security policy.

Q: What is the warranty on the CK4-P208C?

A: StarTech provides a 3-year manufacturer warranty on the CK4-P208C.

Q: What are the physical dimensions and weight of the CK4-P208C?

A: The unit measures 17.0 inches (L) × 8.7 inches (W) × 8.7 inches (H) and weighs 6.9 lbs. Plan for a dedicated console shelf or surface mount — it is not sized for casual desktop placement alongside other equipment.

Q: What operating temperature range is the CK4-P208C rated for?

A: The CK4-P208C is rated for 0°C to 40°C (32°F to 104°F) operating temperature, which covers standard conditioned data center and operations center environments. It is not suitable for extended operation in unconditioned or extreme-temperature spaces.

James Everett

The spec that drives every purchasing decision on the CK4-P208C is NIAP Protection Profile 4.0 — and it's non-negotiable in the environments this switch is designed for. If your procurement vehicle, ATO package, or facility SOP calls out NIAP PP 4.0, this is one of the relatively short lists of switches that will actually satisfy that requirement. Eight ports with dual-monitor DisplayPort at 4K 60Hz puts it in the right range for a multi-analyst console or a shared operations workstation cluster.

Technical Highlights:

• NIAP PP 4.0: Current U.S. government certification standard for cross-domain peripheral switching — required, not optional, in most DoD and IC facility deployments. The CK4-P208C carries this certification, which means it has passed independent security evaluation for data path isolation between all 8 host ports.
• 16 USB 2.0 Type-B Host Connectors: Two per host across all 8 ports — this is the physical basis for the dual-monitor + USB peripheral support on each connected workstation. Verify cable management at the rack or console furniture level before installation; 16 Type-B runs back to host machines can get unwieldy without proper dressing.
• 4K 60Hz DisplayPort: No frame-rate or resolution compromise at the switch level. For analysts working high-resolution imagery or multi-stream video, the 3840×2160 at 60Hz output keeps the KVM from being the weakest link in the display chain — assuming host GPU and monitor support match.

Deployment Considerations:

• At 17.0 × 8.7 × 8.7 inches and 6.9 lbs, this unit needs a dedicated console shelf or furniture mount — measure your rack or console furniture before ordering. It does not rack-mount natively in a standard 1U profile.
• NIAP 4.0 certification addresses the hardware security posture of the switch itself. It does not replace your facility's ATO process or SOP requirements. Coordinate with your security architect or authorizing official before deployment in a classified environment — certification is a prerequisite, not an authorization.

The CK4-P208C is the right pick for a SCIF workstation cluster, a cleared contractor multi-domain analyst station, or any DoD/IC operations center where NIAP PP 4.0 is called out by name in the security requirements. It is not a fit for general-purpose commercial IT environments where NIAP is not required — at that point, a standard DisplayPort KVM will do the same job at lower cost.
