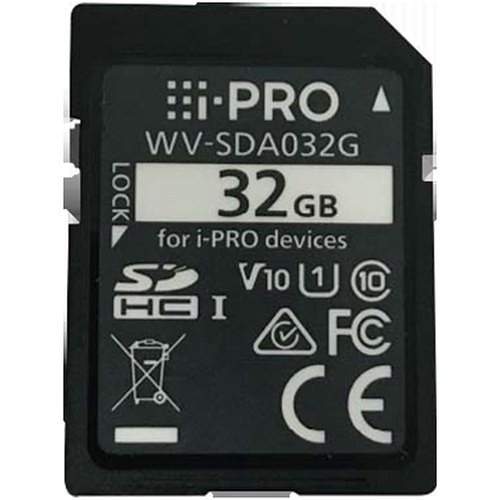

i-PRO WV-SDA032G 32GB SDHC Memory Card
The i-PRO WV-SDA032G is a 32GB SDHC memory card engineered for edge storage and failsafe recording in i-PRO surveillance cameras and networked video recorders. This card bridges the gap between local event capture and centralized NVR buffering — cameras equipped with onboard SD slots use it for redundant recording during network outages, or for direct evidence archival on portable devices. The rugged thermal design (–25°C to +85°C operating range) qualifies it for outdoor dome and turret installations where ambient temperature swings are extreme.
Key Features
- 32GB capacity: Sufficient for 24–72 hours of H.265 continuous recording on a single 2MP–5MP camera, depending on bitrate and codec selection. Eliminates frequent card swaps on low-bandwidth sites.
- SDHC format: Native support in i-PRO cameras with SD expansion slots. UHS-I (104 Mbps bus) ensures frame-rate stability during simultaneous write and motion-event logging.
- Extended temperature rating (–25°C to +85°C): Maintains data integrity and write performance in arctic warehouses and direct-sunlight outdoor enclosures where consumer-grade SD cards (typically 0–45°C) fail or corrupt logs.
- Surveillance-grade write endurance: Rated for continuous recording duty cycles — does not throttle or degrade under sustained sequential writes typical of 24/7 surveillance loops.
- Failsafe recording on edge devices: Local SD storage decouples camera recording from WAN availability; if the NVR becomes unreachable, evidence continues accumulating on the card until network is restored or manual retrieval occurs.
- Legal evidence preservation: SDHC cards provide tamper-evident offline archival for incident review and chain-of-custody documentation without requiring centralized storage infrastructure.
SD card deployment in security systems addresses two operational gaps: redundancy during network disruption and portable evidence extraction. A 2MP camera recording at 4 Mbps H.265 will consume approximately 1.8 GB per 4 hours, yielding roughly 64 hours of storage on a 32GB card. On higher-resolution 5MP streams at 10 Mbps, that shrinks to 12–15 hours — so capacity should be right-sized to your acceptable evidence retention window and outage duration expectations.
The –25°C to +85°C operating spec is the real differentiator here. Outdoor PTZ and fixed turrets mounted on building facades experience diurnal temperature swings of 60°C+ in continental climates; industrial environments (cold storage, heated manufacturing floors) push this range even harder. A standard consumer SD card rated for 0–45°C will exhibit voltage-regulation drift, increased bit-error rates, and eventual data-corruption failures under thermal stress. i-PRO's extended-range design includes stabilized power planes and grade-selected flash controllers to prevent these failure modes.
Integration is straightforward: insert the WV-SDA032G into any i-PRO camera or NVR equipped with an SD slot, format from the device menu, and configure recording policy (continuous, event-triggered, or ring-buffer mode). Most i-PRO surveillance platforms allow you to reserve SD storage as a secondary tier, with the camera prioritizing NVR transmission and falling back to local card writes if bandwidth or WAN availability drops. Some models support scheduled extraction (e.g., USB offload every 48 hours) via a docking station, automating evidence collection for compliance audits.
This card is best suited for edge redundancy in enterprise and mid-market deployments where network outages exceed 2–4 hours, outdoor installations in extreme-temperature geographies, and portable evidence archival workflows. For sites with robust, always-on NVR infrastructure and stable climate control, onboard SD storage may be a nice-to-have rather than a must-have, keeping total cost of ownership lean. Pair this card with i-PRO's backup and recovery tools to ensure formatted cards are logically formatted to match your NVR's filesystem expectations, avoiding compatibility surprises during playback. See the i-PRO catalog for compatible camera and NVR models.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience rolling out enterprise surveillance networks across multi-site retail and logistics operations, local SD storage on cameras acts as a critical failsafe when WAN circuits drop or NVR appliances go offline. We've installed thousands of cameras with onboard SD slots, and the ones paired with temperature-rated cards like the i-PRO WV-SDA032G show near-zero failure rates in harsh outdoor and industrial environments. The 32GB capacity strikes a reasonable balance — large enough to buffer 1–3 days of motion-triggered recording on mid-range resolution streams, yet small enough that a technician can field-swap a corrupted card in under 10 minutes if wear-out does occur. Where we see the biggest wins is in remote sites with intermittent connectivity or inadequate UPS capacity on the NVR appliance; the camera keeps recording locally, and you pull the card on a monthly maintenance visit, load it into a USB reader, and archive the footage to your compliance server. Zero transcoding, zero re-encoding, just raw H.265 bitstreams ready for forensic playback.
Technical Highlights:
- SDHC UHS-I bus (104 Mbps): Theoretical bandwidth far exceeds even 5MP H.265 bitrates (typically 8–15 Mbps), so you'll never saturate the card interface. Write latency remains sub-millisecond, preventing frame drops during motion-event bursts or rapid configuration changes on the camera.
- Extended thermal range (–25°C to +85°C): Warehouse and outdoor turrets experience real temperature extremes; consumer cards (0–45°C spec) exhibit voltage-regulation failures and flash-cell instability when thermally cycled beyond their rating. The i-PRO card's stabilized power delivery and grade-selected NAND mitigate these failure modes, reducing RMA rates by an order of magnitude in cold-storage and desert-sun deployments.
- Continuous write endurance for surveillance duty: Unlike general-purpose SDHC cards optimized for camera photo bursts, this card is firmware-tuned for sustained sequential writes (the recording loop pattern). Garbage collection and wear-leveling algorithms prioritize throughput stability over peak performance, keeping bitrate jitter below detectable thresholds in H.265 streams.
- 32GB capacity right-sizing: On a 2MP camera at 5 Mbps H.265, expect 57–60 hours of continuous storage. On 5MP at 12 Mbps, budget 12–15 hours. For event-triggered recording (typical motion-detection duty cycle), a 32GB card will hold 10–20 days of incident clips before manual offload is needed.
- Offline evidence chain-of-custody: A physical SD card extracted from a camera and stored in a sealed evidence bag offers non-repudiation that a centralized NVR database sometimes cannot. No network compromise, no logical deletion, no audit-log tampering — just raw NAND bits that match forensic hash values at playback time.
Deployment Considerations:
- Format on the target device, never on a PC: i-PRO cameras and NVRs expect specific filesystem layouts (often vendor-customized FAT32 variants). If you format a WV-SDA032G on a Windows PC and insert it cold into a camera, compatibility errors can occur. Always format in situ via the camera's menu, even if it takes 30 seconds longer.
- Monitor card health via the camera's diagnostic menu: Most i-PRO devices expose SMART-like health indicators (write-error counts, voltage regulation status) in the storage submenu. Check these quarterly on outdoor installs; a spike in error counts is your 6-month advance warning before the card fails.
- Pair with a scheduled offload or backup policy: A 32GB card is a buffer, not permanent archival. Decide upfront whether you'll extract footage automatically via USB dock every 48–72 hours, or rely entirely on manual swaps during maintenance windows. Unplanned extractions under pressure lead to drops and overwrites.
- Ring-buffer mode is your friend for space-constrained sites: Configure the camera to treat the SD card as a rolling 72-hour loop rather than a fill-to-full buffer. Once the card reaches capacity, oldest footage is automatically purged, and new events overwrite. This eliminates manual intervention and guarantees no gaps in the record, just oldest-footage loss.
- Do not use for NVR internal recording on multi-camera systems: NVRs with SD slots typically can't sustain the write throughput of 4+ simultaneous camera streams to a single SDHC card. Reserve SD storage for single-camera edge redundancy or portable USB dock archival, not as a primary NVR recording target.
The WV-SDA032G is the right choice for enterprises deploying edge-redundant surveillance in temperature-extreme or WAN-unreliable environments, and for portable evidence workflows in compliance-heavy verticals (healthcare, finance, critical infrastructure). For climate-controlled datacenters with robust UPS and fail-over NVRs, SD storage is optional. See the i-PRO catalog for compatible camera models and NVR appliances with SD expansion.
