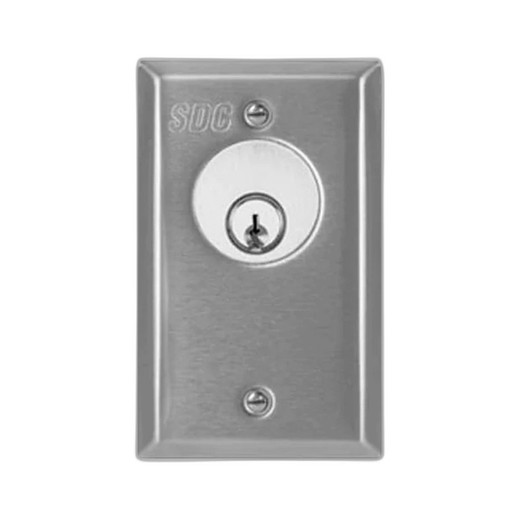

SDC 701U Key Switch Controller 6AMP 630

SDC 701U Key Switch Controller

Overview

The SDC 701U is a wired key switch controller designed for small-to-medium access control deployments where mixed credential environments require straightforward, reliable control. Rated for 6AMP at 630 operation, the 701U communicates via the OSDP standard, ensuring interoperability with certified access control platforms and reader installations. This controller integrates proximity readers, NFC/13.56MHz card readers, and keypads as input devices, making it a practical choice for retrofit and new-build scenarios where key switch control is the primary activation method.

Key Features

• 6AMP @ 630 Power Rating: Sufficient for standard electromagnetic and mechanical strike locks in typical warehouse, facility, or small office installations. A 6-amp capacity covers most single-door scenarios without requiring additional relay modules — reduces wiring complexity and BOM cost on retrofit projects.
• OSDP Connectivity: Open Supervised Device Protocol (OSDP) is the industry standard for reader-to-controller communication. The 701U's OSDP compliance means it works with certified platforms from major access control vendors, giving you freedom from proprietary lock-in and simplifying multi-site standardization.
• Proximity and NFC Reader Support: Accepts input from standard 13.56MHz NFC/MIFARE readers as well as legacy proximity (125kHz) readers. This flexibility lets you migrate credentials gradually — existing card stock continues to work while you onboard new NFC-enabled cards or phones in the same reader bank.
• Wired Architecture: No batteries, no wireless mesh — direct RS-485 or Wiegand connection to the main access control panel. Wired designs eliminate the operational overhead of battery replacement schedules and the site-survey burden of ensuring radio coverage. Particularly valuable in metal-frame warehouses or environments with dense RF interference.
• Keypad and Secondary Input Flexibility: The 701U accepts keypad inputs alongside card readers, supporting PIN-only, card-only, or multi-factor unlock logic at the panel level. Useful for emergency or maintenance override scenarios without requiring a second physical device.
• Compact Integration Profile: Designed for mounting in or adjacent to existing door frames. The 701U's footprint suits both new installations and retrofit scenarios where space above or beside the door is limited.

Integration & Compatibility

The 701U operates as a slave device on standard OSDP or Wiegand bus, meaning it requires a main access control panel to manage door unlock logic, credential validation, and audit logging. It is not a standalone controller. Verify your panel's firmware revision supports OSDP-compliant device classes before ordering — older proprietary panels may require a gateway or firmware update.

The wired connection (RS-485 or Wiegand) must be routed from the main panel to each 701U location. Budget wire runs and conduit accordingly, especially in retrofit scenarios. Power is typically derived from the main panel's auxiliary output or a supervised power supply feeding all door controllers on the site.

For deployments requiring multiple readers at a single door (e.g., card + PIN, or two separate credential types), confirm your panel's reader input channels and verify the 701U's input configuration supports your access control architecture.

When to Choose a Different Model

If your deployment requires more than 6 amps (e.g., double-wide electric latch or heavy-duty mag lock), consider a higher-amperage variant in the SDC lineup or a stand-alone relay module. If wireless communication is mandated (remote facilities, dense RF environments with legacy coverage), the 701U's wired nature disqualifies it — look for wireless-enabled controller alternatives. If you need on-device credential validation or offline operation (no panel dependency), the 701U's slave-only design will not meet those requirements.

Frequently Asked Questions

Q: Does the 701U work with my existing access control panel?

A: The 701U communicates via OSDP or Wiegand protocols. Confirm your panel supports one of these standards and that the firmware version is current. Legacy proprietary panels may require a gateway adapter or firmware upgrade. Contact your panel vendor or integrator to verify compatibility before ordering.

Q: Can the 701U handle a magnetic lock with a power draw above 6 amps?

A: No. The 701U is rated for 6AMP @ 630. If your lock or solenoid strike requires more current, you will need a separate high-current relay or a higher-amperage controller variant. Oversizing the load will damage the controller and void the warranty.

Q: Is the 701U suitable for outdoor door access?

A: The evidence does not specify an IP rating for the 701U. If your deployment is exposed to rain, snow, or direct sun, verify with the manufacturer whether the 701U requires an outdoor-rated enclosure or weatherproof housing before installation.

Q: How do I configure multi-factor authentication (card + PIN) on the 701U?

A: Multi-factor unlock logic is managed at the main access control panel, not on the 701U itself. The 701U accepts both card reader and keypad inputs; the panel's software defines whether both credentials must be presented, and in what sequence. Refer to your panel's configuration guide for multi-factor rule setup.

Q: What happens if the RS-485 connection is severed?

A: The 701U loses communication with the main panel and cannot authenticate credentials. Most panels default to a "fail-safe" or "fail-secure" mode depending on configuration. Verify your site's failover policy before deployment — battery-backed readers, mechanical override, or panic buttons may be required for life-safety compliance.

Q: Does the 701U store an audit log on-device?

A: No. The 701U is a slave controller. All credential validation decisions and audit logging occur on the main access control panel. The 701U forwards reader inputs to the panel; the panel logs the transaction. Ensure your panel has sufficient storage and a backed-up database connection for compliance record retention.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SDC 701U is a straightforward slave controller built for integrators who need reliable wired connectivity and no-nonsense multi-reader support. At 6AMP @ 630, it's sized correctly for the bulk of single-door access control work — neither undersized nor oversized for standard electromagnetic strikes or mechanical latches. The OSDP compliance is the real differentiator here; it future-proofs your installation against vendor lock-in and aligns with the industry's shift away from proprietary protocols.

Technical Highlights:

• 6AMP @ 630 Rating: Eliminates relay overhead for standard lock loads. Most EM strikes and solenoid latches draw 2–4 amps; the 701U has headroom for surge current without requiring external relay circuits, reducing wiring complexity and cost on retrofit jobs.
• OSDP Architecture: Vendor-neutral communication means your panel choice is not locked to SDC hardware. If you need to swap panel brands or upgrade to a newer platform later, OSDP-compliant controllers migrate without re-commissioning reader infrastructure.
• Wired-Only Design: No battery drain, no wireless mesh overhead, no RF site survey. In harsh environments (metal-frame warehouses, industrial facilities with RF noise) or high-security scenarios requiring hardwired audit trails, wired controllers eliminate operational variables.

Deployment Considerations:

• Slave-Only Operation: The 701U does not make access decisions on-board. All credential validation and unlock logic lives on the main panel. If your panel goes offline, the 701U cannot authenticate — confirm your site's failover and emergency override strategy before deployment.
• Wiring Complexity on Retrofit: Existing door frames may lack conduit runs from the main panel. Budget labor for new wire pulls, especially in multi-story buildings or campuses where controller locations are distant from the control room. Test RS-485 cable runs for impedance and signal integrity before final install.
• No IP Rating Specified: The datasheet does not confirm weatherproofing. If the 701U is mounted in an exposed vestibule or outdoor alcove, confirm enclosure protection with the manufacturer or specify a NEMA 4X wall-mounted cabinet for the controller itself.

Deploy the 701U where wired reliability, protocol neutrality, and straightforward reader integration matter more than wireless convenience — multi-building campuses, retrofits to aging panel infrastructure, and warehouses where every reader needs auditability at the panel level.
