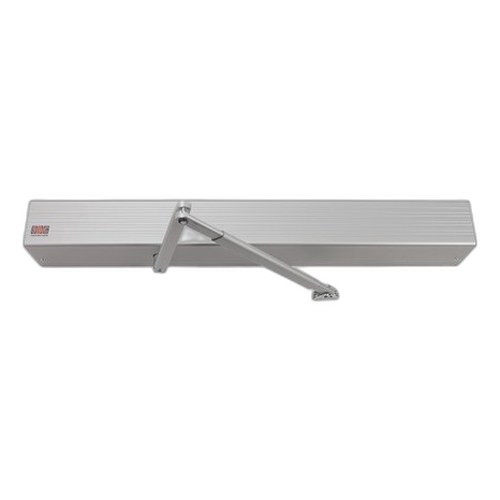

SDC AUTOP172V Double Push 72" Opening Automatic Door Operator

SDC AUTOP172V Double Push Automatic Door Operator

Overview

The AUTOP172V is a dual-drive automatic door operator designed for 72-inch openings (75-inch frame). It pairs two independent 24VDC motor units to drive simultaneous leaf operation, making it the correct choice for high-traffic access points where synchronized double-door motion reduces bottleneck delays. Deploy this where you need commercial-grade push automation without a retrofit to the door frame itself.

Compatibility

The AUTOP172V operates as a standalone low-energy swing-door operator powered by 115VAC @ 60Hz (+6%, -10%) mains supply and outputs 24VDC to each motor unit. It integrates into any access control ecosystem that supplies 24VDC trigger signals — compatible with standard electromagnetic locks, electric strikes, and door controllers that source 24VDC auxiliary power. The 3.5 Amp fuse (F1 on the I/O board) protects against overcurrent and shorts. Pairs with any door reader infrastructure (badge, proximity, keypad) that can route unlock commands to the 24VDC control input.

Installation Notes

Mount the operator assembly (4½" H × 4⅛" D) above the door frame or in a dedicated enclosure. The unit draws 1 Amp at 24VDC per motor — verify your 24VDC auxiliary power supply can source 2 Amps total (worst case, both motors active). Maximum opening angle is 130°. Operating temperature range is −4 to 131°F; verify ambient conditions at install site meet this window. IP23 ingress protection handles spray water up to 60° from vertical (rainstorm-rated), but avoid direct hose-down or wet-location submersion. Motor is permanent-magnet 24VDC with belt-driven encoder feedback for position sensing. Fuse protection is located on the I/O board — inspect and test before commissioning.

What's in the Box

• Two AUTOP drive units (operator assembly)
• I/O control board with fused protection
• Hardware and fasteners for frame-mount installation
