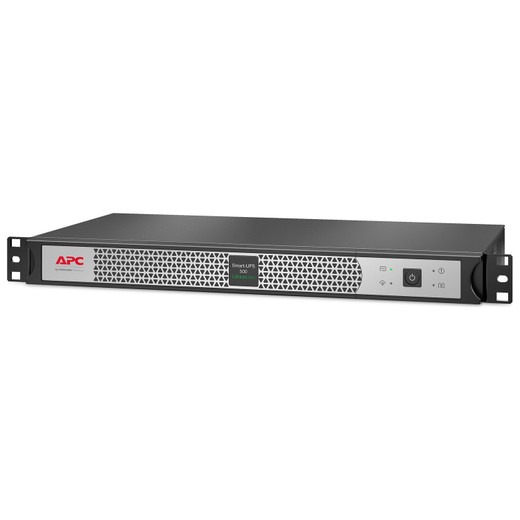

APC by Schneider Electric SCL500RM1UC 1U Rack-Mount Line-Interactive UPS
Overview
The APC by Schneider Electric SCL500RM1UC is a 500VA / 400W line-interactive UPS in a compact 1U rack-mount form factor, designed for 120V equipment that needs stable, conditioned power in server closets, security head-end racks, and edge deployments where space is tight and uptime matters. Line-interactive topology means the unit actively regulates voltage before it reaches your equipment — without switching to battery for every sag or surge — which extends battery life and keeps connected devices on clean power through the grid instability that's common in commercial buildings.
At 500VA / 400W output with a true sine wave waveform, the SCL500RM1UC is compatible with active PFC power supplies, which covers most modern NVRs, servers, and network appliances. This is a meaningful distinction from stepped-approximation (simulated sine) units that can trip or damage PFC-based equipment.
Key Features
- Line-Interactive with AVR (92–139V Input Range): Automatic Voltage Regulation continuously corrects input voltages between 92V and 139V without transferring to battery. In commercial environments where voltage dips to 95–100V during peak loads, this means your NVRs and switches stay on conditioned power — not draining runtime on routine sags.
- True Sine Wave Output: Unlike stepped-approximation alternatives, the SCL500RM1UC delivers a clean sine wave at all times, including during battery operation. Modern NVRs and servers with active PFC supplies require this — a simulated sine wave can cause erratic shutdowns or hardware faults on those load types.
- 500VA / 400W Capacity: Plan your load budget carefully: 400W is the hard ceiling. A 4-camera NVR drawing 80W plus a PoE switch at 150W and a firewall at 30W leaves comfortable headroom. Overloading beyond 400W will trigger the unit's overload alarm and force a shutdown.
- 680 Joule Surge Energy Rating: The integrated surge suppression handles 680J of transient energy — adequate for indoor rack deployments. For equipment on circuits with outdoor cable runs or in regions with frequent lightning activity, pair with a dedicated SPD upstream.
- 6ms Transfer Time: When grid power drops outside the AVR correction window, the SCL500RM1UC transfers to battery in 6 milliseconds. That's fast enough to bridge the gap for any standard server or NVR — typical equipment tolerates up to 20ms without a power interruption event.
- 45 dB Noise Level: At 45 dB, this unit is quiet enough for office-adjacent wiring closets and front-of-house AV racks where fan noise is a concern. It won't be silent, but it won't be disruptive in a typical IT closet environment either.
- Output Voltage Regulation ±5%: Output holds within ±5% of 120V regardless of input fluctuation within the correction range. For sensitive recording or switching equipment, this means the voltage arriving at your gear stays between 114V and 126V — well within tolerance for virtually all commercial electronics.
- NEMA 5-15R Outlets, NEMA 5-15P Input: Standard 15A receptacles and plug. No special wiring or PDU adapters needed — plug the SCL500RM1UC into a standard 15A circuit and connect equipment directly. Verify outlet count on the unit before buying if you're consolidating multiple devices.
- Audible Alarm (On-Battery Alert): The unit sounds an alarm when it transitions to battery operation, giving nearby staff an immediate heads-up. For unattended remote deployments, pair with a UPS management card or network management software if you need remote alerting.
- 1U Rack Mount Form Factor: A single rack unit keeps the footprint minimal in dense deployments. Fits standard 19-inch racks — confirm your rack has adequate depth for the unit before installation.
Integration and Compatibility
The SCL500RM1UC is compatible with standard rack-mount UPS systems and works with any load requiring a NEMA 5-15R connection at 120V. The sine wave output makes it suitable for active PFC equipment including most commercial NVRs, IP cameras with local power, PoE switches, and edge compute appliances. For deployments in the APC by Schneider Electric product ecosystem, it integrates with APC's PowerChute software for graceful shutdown management over USB — check current software compatibility for your OS version. This UPS is appropriate for small NVR and video management head-ends where a single protected circuit covers the core recording and switching infrastructure. If your load exceeds 400W or you need higher runtime, look at higher-capacity models in the APC Smart-UPS or SRT line before purchasing. For PoE switch protection in larger surveillance deployments, consult a UPS sizing and runtime guide to match capacity to actual load.
Frequently Asked Questions
Q: Does the SCL500RM1UC output a true sine wave or a simulated sine wave?
A: True sine wave — at all times, including during battery operation. This makes it compatible with active PFC power supplies found in most modern NVRs, servers, and managed switches. Simulated sine wave UPS units can cause instability or hardware faults with PFC loads.
Q: What input voltage range does the SCL500RM1UC support before switching to battery?
A: The automatic voltage regulation (AVR) corrects input voltages between 92V and 139V without switching to battery. Only voltages outside this range trigger a battery transfer.
Q: How quickly does the SCL500RM1UC transfer to battery when power fails?
A: Transfer time is 6 milliseconds — fast enough that connected equipment will not experience a detectable power interruption. Most servers and NVRs tolerate up to 20ms without issue.
Q: What is the surge energy rating on the SCL500RM1UC?
A: 680 joules. This handles typical indoor transient events. For locations with outdoor cable runs or high lightning exposure, supplement with a dedicated surge protective device upstream of the UPS.
Q: Can the SCL500RM1UC fit in a standard 19-inch rack?
A: Yes — it occupies 1U in a standard 19-inch equipment rack. Verify rack depth compatibility and ensure adequate ventilation clearance around the unit before installation.
Q: What outlets does the SCL500RM1UC provide?
A: NEMA 5-15R receptacles — standard 15A outlets compatible with most commercial IT and security equipment. The input plug is a NEMA 5-15P, so no special wiring or circuit modifications are required beyond a standard 15A outlet.
The SCL500RM1UC earns its place in security head-end racks specifically because of that true sine wave output — a spec that matters far more than most buyers realize when they're comparing 500VA units on price alone. I've seen PFC-based NVRs behave erratically or refuse to start on stepped-approximation UPS units during battery operation. With the SCL500RM1UC, that's off the table.
Technical Highlights:
- 92–139V AVR Window: That's a 47-volt correction span without touching the battery — practically the entire range of grid instability you'll encounter in a commercial building. Most competitive line-interactive units correct a much narrower band, meaning more unnecessary battery cycles and shortened battery lifespan.
- 6ms Transfer Time: Below the threshold of what any modern server or NVR will register as a power event. You're not relying on equipment hold-up time to bridge the gap — the UPS catches it cleanly.
- 680J Surge Rating: Solid for an indoor rack position on a protected circuit. Don't treat this as the only line of defense if the circuit originates near a building service entrance or feeds from a panel with outdoor exposure.
Deployment Considerations:
- At 400W output capacity, load planning is non-negotiable before installation. Add up actual draw from every connected device — not VA ratings, actual watts — and stay under 320W (80% of capacity) for thermal and reliability headroom.
- The 45 dB noise floor is acceptable for a wiring closet but audible in a quiet office or reception area. Mount it in an enclosed rack or closet if noise is a concern for the installation environment.
The SCL500RM1UC is purpose-built for compact security and IT head-ends — a 1U NVR, a PoE switch, and a firewall sitting on a single protected 15A circuit in a retail back-office or small commercial lobby. It's not the unit for a 20-camera enterprise NVR rack drawing 800W; for that, step up to a higher-capacity Smart-UPS. But for the 200–350W edge deployment that needs clean, sine wave power in a single rack unit, it delivers exactly what the spec sheet promises.
