Description

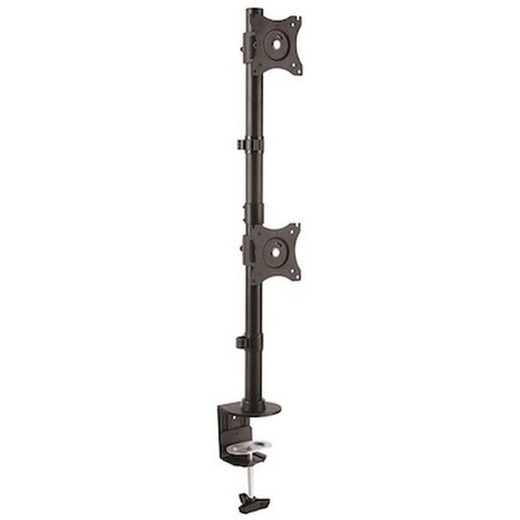

StarTech ARMDUALV Dual Vertical Monitor Mount

Overview

The StarTech ARMDUALV is a dual monitor mount designed for vertical stacking, optimizing desk space and improving workflow for users with multiple displays. This mount is ideal for environments where screen real estate is at a premium, such as security monitoring stations, trading floors, or multi-application workstations. The ARMDUALV model allows for two monitors to be positioned one above the other, facilitating efficient data comparison and multitasking. Its robust steel construction ensures stability for displays up to 22.1 lb (10 kg) each.

Compatibility

This mount supports two displays ranging from 13 inches to 27 inches diagonally. It accommodates standard VESA mounting hole patterns of 75x75 mm and 100x100 mm. The pole height is 27.5 inches (700 mm), providing ample vertical adjustment. The desk clamp accommodates surfaces from 0.39 to 3.46 inches (10 to 88 mm) thick, while the grommet mount option fits holes between 0.41 and 1.96 inches (10.5 to 50 mm) in diameter.

Installation Notes

Mounting requires a desk edge or a grommet hole with specified dimensions. The mount's steel construction and included hardware ensure a secure installation. The pole itself is 27.5 inches tall, and the monitor arms offer tilt (+45°/-45°), swivel (+45°/-45°), and 360° rotation for precise screen positioning.

What's in the Box

  • 1x Dual Monitor Mount (ARMDUALV)
  • 1x Pole
  • 1x Desk Clamp Mount
  • 1x Grommet Mount
  • 1x Hardware Mounting Kit
  • 1x Instruction Manual
Specifications
Max Weight Per Monitor: 22.1 lb [10 kg]
Minimum Display Size: 13"
Maximum Display Size: 27"
Display Tilt: + 45 / - 45
Swivel: +45 / -45
Display Rotation: 360
Pole Height: 27.5" (700 mm)
Material: Steel
Color: Black
Product Length: 4.7 in [12.0 cm]
Product Width: 4.6 in [11.6 cm]
Product Height: 35.4 in [90.0 cm]
Product Weight: 7.5 lb [3.4 kg]
Number of Displays Supported: 2
Orientation: Vertical
Mounting Options: Desk & Grommet Clamp
VESA Hole Pattern: 75x75 mm, 100x100 mm
Desk Clamp Thickness: 0.39 - 3.46 in. (10 - 88 mm)
Grommet Mount Hole Size: 0.41 - 1.96 in. (10.5 - 50 mm)
Warranty: 5 Years
Brand: StarTech
MPN: ARMDUALV
Type: Mounting Bracket
