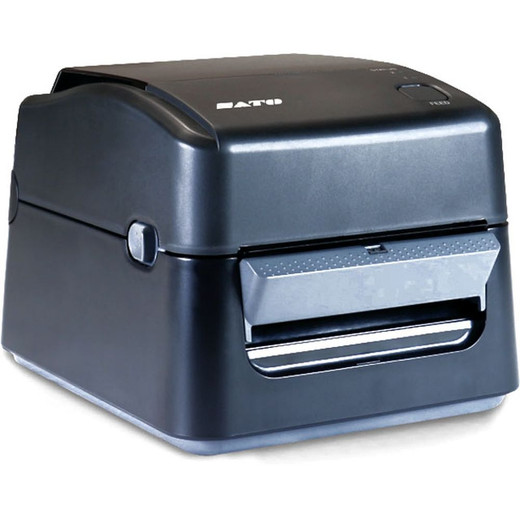

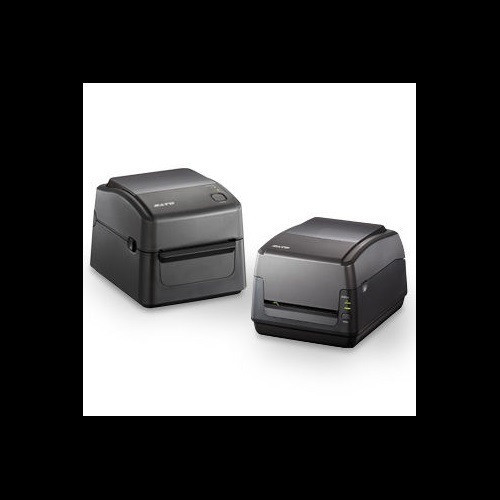

SATO WS4 WT212-404DB-EX1-2 203dpi Desktop Thermal Printer
The SATO WT212-404DB-EX1-2 is a compact, enterprise-grade desktop thermal printer designed for high-volume label production in logistics, manufacturing, and warehouse environments. With 203 dpi resolution and 6 ips print speed, this versatile printer delivers sharp barcodes, text, and graphics on demand. Supporting both direct thermal and thermal transfer modes, the WS4 series adapts to your media requirements while maintaining consistent output quality across applications.
Key Features
- 203 dpi resolution at 6 ips for professional barcode and label output
- Dual-mode printing: direct thermal and thermal transfer support
- 4.09" maximum print width accommodates standard label formats
- 16 MB Flash, 32 MB SDRAM with 16 MB user-accessible storage for fonts and forms
- Multiple connectivity options: USB 2.0, RS-232C, Ethernet, Wi-Fi, and Bluetooth
- Tool-free printhead and platen roller replacement minimizes maintenance time
- Compact desktop footprint: 8.69" × 10.96" × 7.38"
- Media flexibility: 1" to 4.65" widths on standard cores
- Supports rolls up to 5" outer diameter and ribbons up to 984 ft
- Wide operating temperature range: 41°F to 104°F
- Universal AC power input: 100–240V, 50/60Hz
Technical Specifications
Print Performance: 203 dpi resolution; 6 ips max speed; 4.09" print width
Memory: 16 MB Flash, 32 MB SDRAM, 16 MB user storage
Connectivity: USB 2.0, RS-232C, Ethernet, Wi-Fi, Bluetooth
Media: 1" to 4.65" width; up to 5" outer diameter rolls; 984 ft ribbon capacity
Physical: 8.69" × 10.96" × 7.38"; 5.46 lbs
Power: AC 100–240V, 50/60Hz
Operating Environment: 41°F to 104°F (5°C to 40°C)
Applications
- Shipping and logistics label generation
- Manufacturing and product identification
- Warehouse inventory management and routing labels
- Compliance and regulatory labeling
- Healthcare and pharmaceutical labeling
- Retail and point-of-sale applications
Karl WilsonPerspective based on aggregated and affiliated engineering team experience.
The SATO WT212-404DB-EX1-2 strikes an effective balance between capability and footprint, making it ideal for enterprises seeking reliable desktop label printing without the space demands of larger industrial systems. The dual thermal mode support provides genuine flexibility—direct thermal mode cuts consumable costs for temporary labels, while thermal transfer mode extends print longevity for permanent asset tags and shipping labels exposed to handling and storage.
Connectivity is a notable strength. The combination of Ethernet, Wi-Fi, Bluetooth, and USB ports enables seamless integration into both legacy and modern network environments. LPR analytics support ensures compatibility with standard print queue management systems.
The 203 dpi resolution is the practical sweet spot for barcode printing, delivering sharp 1D and basic 2D code reproduction across retail, logistics, and light manufacturing workflows. At 6 ips, throughput remains acceptable for mid-volume environments—not production-floor speed, but sufficient for on-demand and batch operations.
Tool-free consumable replacement is a genuine operational advantage, reducing downtime and lowering the technical skill required for routine maintenance. The 32 MB SDRAM paired with 16 MB user storage accommodates hundreds of custom fonts and label templates, though users with extensive graphical requirements should note the memory constraints versus larger enterprise platforms.
For organizations running mixed thermal media types and requiring network connectivity with minimal installation complexity, this printer delivers solid value.
