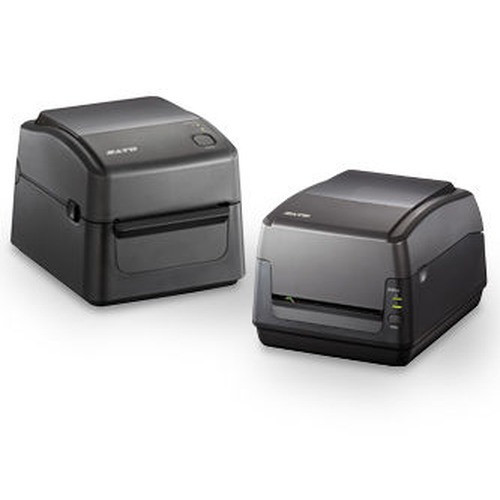

SATO WS4 WD312-405NW-EX1-2 203dpi Desktop Thermal Printer

SATO WS4 WD312-405NW-EX1-2 203dpi Desktop Thermal Printer

The SATO WD312-405NW-EX1-2 is a compact, enterprise-grade desktop thermal printer designed for high-volume label production in logistics, manufacturing, and warehouse environments. With 203 dpi resolution and 6 ips print speed, this WS4 series printer delivers professional-quality barcodes, text, and graphics on labels up to 4.09 inches wide. Its dual thermal printing modes—direct thermal and thermal transfer—provide flexibility across media types, while integrated connectivity options including Ethernet, Wi-Fi, Bluetooth, and USB ensure seamless integration into existing network infrastructures.

Key Features

• 203 dpi resolution at 6 ips for sharp barcode and text output
• Maximum print width of 4.09 inches accommodates standard shipping and compliance labels
• Dual-mode printing: Direct Thermal and Thermal Transfer for media versatility
• Multiple connectivity: Ethernet, Wi-Fi, Bluetooth, USB 2.0, and RS-232C
• 16 MB Flash and 32 MB SDRAM with 16 MB user-accessible storage for custom forms and fonts
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Supports media rolls up to 5 inches outer diameter with 1 inch core
• Ribbon capacity up to 984 feet for extended print runs
• LCD display for intuitive operation and real-time status monitoring

Technical Specifications

Print Capabilities: 203 dpi resolution | 6 ips max speed | 4.09 inch max width | Direct Thermal / Thermal Transfer
Memory: 16 MB Flash | 32 MB SDRAM | 16 MB user storage
Connectivity: USB 2.0 | RS-232C | Ethernet | Wi-Fi | Bluetooth
Media: 1 to 4.65 inch width range | 1 inch core | 5 inch max roll diameter
Ribbon: Up to 984 feet maximum length
Physical: 8.69 x 10.96 x 7.38 inches | 5.46 lbs
Power: AC 100-240V, 50/60Hz | Operating temperature: 41°F to 104°F

Typical Applications

• High-volume shipping and logistics label production
• Manufacturing component identification and tracking
• Warehouse inventory management and order fulfillment labeling
• Compliance and regulatory label printing
• Asset tracking and identification programs

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO WD312-405NW-EX1-2 represents a solid mid-range solution for enterprises requiring consistent, reliable thermal printing without complex setup or extensive maintenance. Its compact footprint makes it ideal for warehouse and retail environments where space is limited, yet the 4.09-inch print width accommodates most standard shipping labels and compliance documents. The tool-free printhead replacement design is particularly valuable in high-volume operations where downtime directly impacts productivity.

The dual thermal printing capability—supporting both direct thermal and thermal transfer modes—provides meaningful flexibility. Direct thermal printing eliminates ribbon costs for time-sensitive applications, while thermal transfer ensures durability for labels requiring extended shelf life or harsh environment exposure. With 203 dpi resolution at 6 ips, output quality is professional-grade for barcode scanning and human readability.

Connectivity is comprehensive: Ethernet and Wi-Fi enable network-based printing and management, USB provides direct device connectivity, and Bluetooth supports mobile or portable terminal integration. The 32 MB SDRAM and 16 MB user storage support custom label templates and font libraries, reducing reliance on external servers for routine operations. LPR analytics support allows IT teams to monitor usage and troubleshoot remotely in networked deployments.
