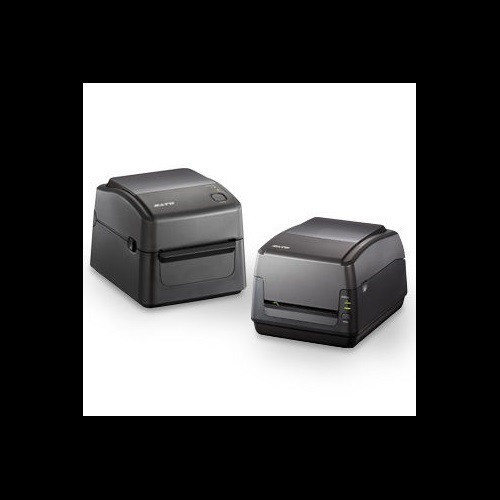

SATO WS4 WD312-405CN-EX1-2 203dpi Desktop Thermal Printer

SATO WS4 WD312-405CN-EX1-2 203dpi Desktop Thermal Printer

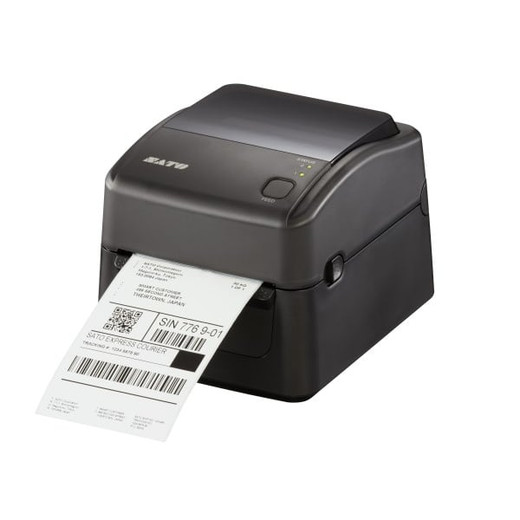

The SATO WD312-405CN-EX1-2 is a professional-grade desktop thermal printer engineered for high-volume enterprise label production. Combining compact design with robust printing capabilities, this WS4 series printer delivers 203 dpi resolution at 6 ips—ideal for organizations requiring reliable, high-quality barcode and text output in demanding warehouse, logistics, and manufacturing environments.

Key Features

• 203 dpi resolution at 6 ips for sharp barcode and text output
• 4.09" maximum print width accommodates standard shipping and compliance labels
• Dual-mode printing: Direct thermal and thermal transfer for maximum media flexibility
• 16 MB Flash and 32 MB SDRAM with 16 MB user-accessible storage for forms and fonts
• Multi-protocol connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth for seamless integration
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Supports media rolls up to 5" outer diameter with 1" core
• Extended ribbon capacity: up to 984 ft for extended print runs
• Intuitive LCD display for operator control and status monitoring
• Compact footprint: 8.69" x 10.96" x 7.38" fits tight workspace constraints

Technical Specifications

• Resolution: 203 dpi
• Print Speed: 6 ips
• Maximum Print Width: 4.09"
• Media Width Range: 1" to 4.65"
• Media Core Diameter: 1"
• Maximum Roll Diameter: 5"
• Memory: 16 MB Flash, 32 MB SDRAM, 16 MB user storage
• Connectivity: USB 2.0, RS-232C, Ethernet, Wi-Fi, Bluetooth
• Dimensions: 8.69" x 10.96" x 7.38"
• Weight: 5.46 lbs
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F
• Ribbon Capacity: Up to 984 ft

Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and barcode tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling requirements
• Healthcare and pharmaceutical labeling
• Retail point-of-sale and product labeling

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

The SATO WD312-405CN-EX1-2 represents a balanced solution for mid-to-high-volume label printing operations. Its 203 dpi resolution at 6 ips provides production-ready speed without sacrificing print quality—a critical requirement for barcode compliance and scanability in logistics networks. The dual-mode thermal capability (direct and transfer) eliminates the need for separate printers when transitioning between media types, reducing equipment complexity and capital expenditure.

The multi-connectivity stack (USB, Ethernet, Wi-Fi, Bluetooth) ensures integration flexibility across legacy and modern enterprise systems. LPR protocol support enables seamless network printing from existing label-design software without custom drivers. The 16 MB user-accessible storage allows on-device form caching, reducing network dependencies and improving print throughput during peak operational periods.

Tool-free printhead replacement is a significant operational advantage in high-volume environments, directly reducing mean-time-to-repair and unplanned downtime. The compact 5.46 lb footprint and modest spatial requirements make it suitable for space-constrained warehouses and distribution centers without compromising duty-cycle performance.
