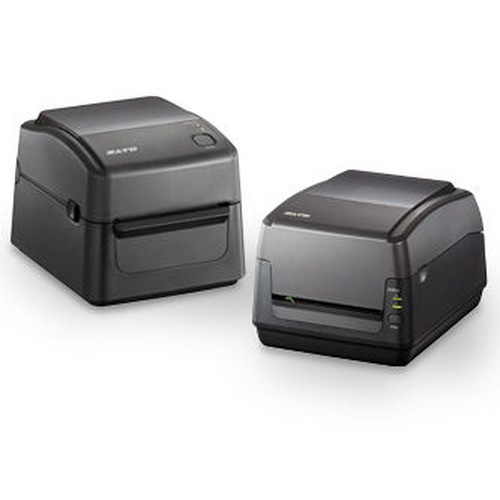

SATO WS4 WD312-405CB-EX1-2 203dpi Desktop Thermal Printer

SATO WS4 WD312-405CB-EX1-2 203dpi Desktop Thermal Printer

The SATO WS4 WD312-405CB-EX1-2 is a versatile desktop thermal printer engineered for enterprise-grade label production. Combining 203 dpi resolution with 6 ips print speed and a maximum print width of 4.09", this compact system delivers professional-quality barcodes, text, and graphics for demanding logistics, manufacturing, and warehouse environments. Dual thermal printing modes—direct thermal and thermal transfer—provide flexibility across media types, while integrated connectivity options and intuitive operation make it an ideal choice for high-volume labeling operations.

Key Features

• 203 dpi resolution at 6 ips for sharp barcode and text output
• 4.09" maximum print width accommodates standard shipping and product labels
• Dual-mode direct thermal and thermal transfer printing for media versatility
• 16 MB Flash, 32 MB SDRAM, and 16 MB user-accessible storage for forms and fonts
• Multiple connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth for flexible network integration
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Integrated cutter configuration for automated label finishing
• Supports media rolls up to 5" outer diameter and ribbons up to 984 ft (300 m)
• LCD display for intuitive printer control and diagnostics
• Compact desktop form factor: 8.69" × 10.96" × 7.38", weighing 5.46 lbs

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 6 ips
• Maximum Print Width: 4.09"
• Media Width Range: 1" to 4.65"
• Maximum Media Roll Diameter: 5"
• Maximum Ribbon Length: 984 ft (300 m)
• Memory: 16 MB Flash, 32 MB SDRAM, 16 MB user storage

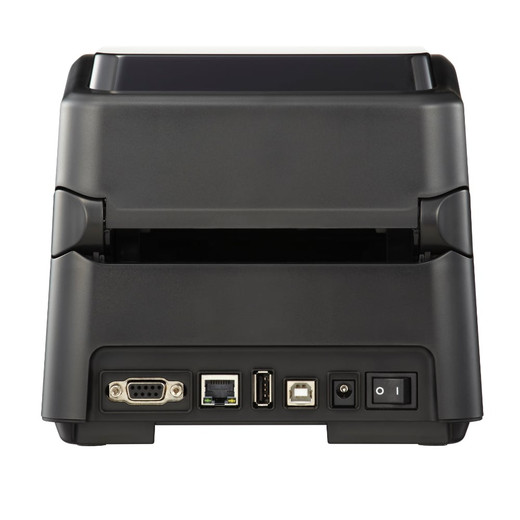

• Connectivity: USB 2.0, RS-232C, Ethernet, Wi-Fi, Bluetooth
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F (5°C to 40°C)
• Dimensions: 8.69" × 10.96" × 7.38"
• Weight: 5.46 lbs (2.48 kg)

Typical Applications

• High-volume shipping and logistics label production
• Manufacturing part identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling for distribution
• Retail product and price labeling

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

The SATO WS4 WD312-405CB-EX1-2 represents a proven mid-range desktop thermal printer suitable for organizations requiring reliable, consistent label output without enterprise-scale complexity. The 203 dpi resolution strikes an optimal balance between print quality and throughput—sufficient for standard barcodes and readable text while maintaining the 6 ips speed needed for moderate to high-volume operations. Dual thermal modes are particularly valuable for organizations transitioning between direct thermal consumables and thermal transfer ribbons, avoiding vendor lock-in and reducing total cost of ownership.

The multi-protocol connectivity suite—Ethernet, Wi-Fi, USB, and Bluetooth—ensures seamless integration into existing network infrastructures, from legacy RS-232C serial systems to modern wireless deployments. The 16 MB user-accessible storage allows custom forms and font storage on-device, reducing dependency on frequent data transfers. Tool-free maintenance (printhead and platen roller replacement) directly reduces downtime and service costs, a critical factor in continuous-operation environments.

For organizations managing medium-scale label production across multiple shifts or locations, the compact footprint and cutter integration eliminate post-print labor. The LPR analytics support enables network monitoring and printer health tracking. This model is ideally positioned for mid-market logistics, manufacturing, and retail operations seeking durability and flexibility without premium enterprise pricing.
