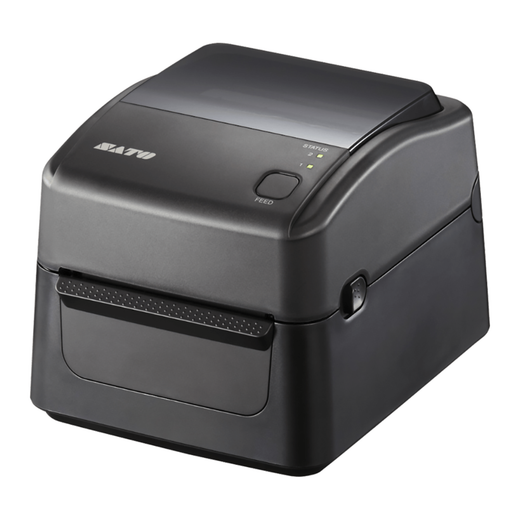

SATO WS4 WD212-409DN-EX1-2EBM 203dpi Thermal Printer

SATO WS4 WD212-409DN-EX1-2EBM 203dpi Thermal Printer

The SATO WS4 WD212-409DN-EX1-2EBM is a compact desktop thermal printer engineered for high-volume enterprise label production. With 203 dpi resolution and 6 ips print speed, this printer delivers crisp barcode and text output on media up to 4.09 inches wide. Dual thermal modes—direct thermal and thermal transfer—provide flexibility across shipping labels, compliance tags, and industrial identification applications. The intuitive LCD display and tool-free printhead replacement minimize operational downtime in demanding warehouse and manufacturing environments.

Key Features

• 203 dpi resolution at 6 ips for sharp barcodes and high-contrast text
• Dual-mode printing: Direct thermal and thermal transfer support
• 4.09-inch maximum print width for standard label formats
• Multi-connectivity: Ethernet, Wi-Fi, Bluetooth, and USB 2.0
• Tool-free printhead and platen roller replacement for rapid maintenance
• 16 MB Flash, 32 MB SDRAM, and 16 MB user storage for forms and fonts
• Compact footprint: 8.69" × 10.96" × 7.38" (5.46 lbs)
• Universal power: AC 100-240V, 50/60Hz operation

Technical Specifications

• Print Resolution: 203 dpi
• Print Speed: 6 ips
• Maximum Print Width: 4.09 inches
• Media Width Range: 1.0 to 4.65 inches
• Media Roll Diameter: Up to 5 inches outer diameter
• Ribbon Length: Up to 984 feet (300 m)
• Core Size: 1 inch
• Memory: 16 MB Flash, 32 MB SDRAM, 16 MB user-accessible storage
• Connectivity: Ethernet, Wi-Fi, Bluetooth, USB 2.0, RS-232C
• Dimensions: 8.69" W × 10.96" D × 7.38" H
• Weight: 5.46 lbs (2.48 kg)
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F

Ideal Applications

• Shipping and logistics label production
• Manufacturing item identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Retail price and product identification tags

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WD212-409DN-EX1-2EBM strikes a balance between compact design and enterprise-grade performance. Its 203 dpi resolution is the industry standard for barcode clarity and readability at typical scanning distances, while 6 ips throughput supports moderate-to-high volume operations without bottlenecking warehouse workflows. The dual thermal modes eliminate the need for separate printers—users can switch between cost-effective direct thermal labels and longer-lasting thermal transfer ribbons based on application requirements.

Network connectivity via Ethernet, Wi-Fi, and Bluetooth enables flexible deployment across distributed warehouse and retail environments. The 16 MB user storage is sufficient for custom fonts and label templates, while the LPR protocol support integrates seamlessly with Unix/Linux print systems common in enterprise infrastructure. Tool-free maintenance reduces total cost of ownership; printhead and platen replacement can be completed in seconds without technician intervention. The wide operating temperature range (41°F to 104°F) accommodates cold storage and outdoor dock environments typical in logistics operations.
