Sato R40683300 S84/S86NX Replacement Printhead

Sato R40683300 S84/S86NX Replacement Printhead

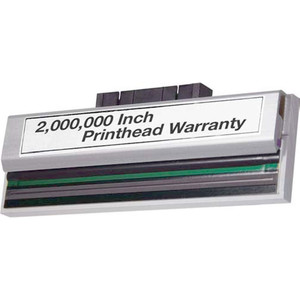

The Sato R40683300 is a genuine OEM replacement printhead for SATO S84 and S86NX thermal printers. Thermal printheads are consumable wear items — as they degrade, dot formation becomes inconsistent, barcode readability suffers, and print verification failures spike. The R40683300 restores consistent thermal transfer and direct thermal printing performance in high-volume production environments including logistics, healthcare, security, and asset management.

Key Features

• 203 dpi resolution: Balanced for standard barcode symbologies (Code 128, EAN-128, GS1-128) used in logistics and inventory systems. Crisp enough for compliance labeling without requiring premium media or supplies. Meets GS1 and USPS specifications for domestic and international shipping labels.
• 4.1-inch maximum print width: Accommodates multi-line labels and large barcodes on standard industrial label stock. Limits utility to width-constrained applications or narrow-format specialty materials — measure your label width before ordering to confirm fit.
• 166 inches per second print speed: Delivers throughput expected from this printer class. Not a high-speed system — evaluate against your production cycle requirements. Suitable for shipping label, inventory tag, and compliance marking workflows where throughput does not exceed 166 ips.
• Direct Thermal and Thermal Transfer printing: Switches between heat-sensitive label stock (lower cost, no ribbon required) and ribbon-based printing (longer shelf life, environmental resistance). This flexibility matters when compliance retention periods change or label durability requirements shift mid-run.
• Tool-free field replacement: 60-degree head opening allows printhead swap without special tools or technical expertise. Reduces mean time to repair and minimizes printer downtime during consumable maintenance — critical in high-throughput environments where every hour offline costs money.
• Genuine OEM manufacture: Eliminates compatibility risk and sustains SATO warranty coverage. Third-party printheads often cause dot misalignment, ribbon slippage, or thermal inconsistency that degrades output quality and increases scan-on-first-attempt failures over time.

Integration & Compatibility

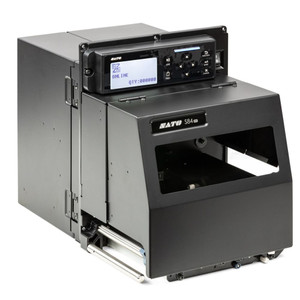

The R40683300 is engineered exclusively for SATO S84 and SATO S86NX printer models. Verify your printer model before ordering — using a printhead designed for a different SATO thermal printer line will result in improper thermal contact, misaligned dot formation, and print failures. When stocking replacement thermal printer consumables, keeping genuine SATO parts on hand ensures rapid resolution of printhead degradation without escalating to external depot repair, which typically adds days to recovery time.

Field replacement is straightforward: unlock the printer cover, swing open the print head assembly via the 60-degree hinge, disconnect the ribbon cartridge, remove the old printhead, install the R40683300, reattach the ribbon, and close. No firmware updates or recalibration required — the printer recognizes the OEM component immediately upon power-on.

Deployment Scenarios

High-volume shipping and logistics: Print speeds of 166 ips sustain labels for parcel sorting, pallet identification, and carrier handoff. Barcode readability at 203 dpi meets GS1 and USPS specifications for domestic and international shipping labels without media upgrade.

Healthcare and pharmaceutical labeling: Direct Thermal printing ensures labels withstand temperature and humidity fluctuations in storage without ribbon smudge or adhesive breakdown. Thermal Transfer supports durable labels for vial identification, patient wristbands, and inventory tracking where label permanence is non-negotiable for regulatory compliance.

Asset tracking and enterprise inventory: Consistent dot formation prevents barcode scan failures in handheld reader environments. Print quality directly impacts scan-on-first-attempt rates — degraded printheads cost time and labor at receiving docks and warehouse cycle counts.

Security credential and badge printing: Thermal Transfer with ribbon ensures label durability and smudge resistance on ID badges, security passes, and access control credentials where label wear or fading creates security and liability risk.

When to Choose a Different Model

If your S84 or S86NX printhead is still producing acceptable output, do not replace it prematurely — printheads have a finite lifespan measured in label volume, not calendar time. Monitor print quality regularly. If you require higher resolution (300+ dpi) or wider print width (6+ inches), those capabilities require a different SATO printer model entirely — the R40683300 is pinned to the S84/S86NX architecture and cannot be adapted to other platforms.

Frequently Asked Questions

Q: Is the R40683300 compatible with other SATO printer models?

A: No. The R40683300 is engineered exclusively for SATO S84 and S86NX printers. Using it in a different SATO thermal printer will result in thermal contact failure and print quality degradation. Always verify your printer model before ordering.

Q: Does replacing the printhead require special tools?

A: No. The R40683300 features a tool-free, 60-degree head opening design. Field replacement can be completed by warehouse or operations staff without special equipment — just unlock the cover, open the hinge, swap the printhead, and close.

Q: Will my SATO warranty be affected if I install a third-party printhead instead?

A: Yes. Using non-OEM printheads typically voids SATO warranty coverage and can cause dot misalignment, thermal inconsistency, and output quality failures that are difficult to diagnose. Genuine SATO parts (like the R40683300) preserve your warranty and ensure reliable performance.

Q: What is the expected lifespan of the R40683300 printhead?

A: Printhead lifespan depends on label volume, thermal intensity settings, and ribbon wear. Monitor print quality — when you see inconsistent dot formation, fading, or scan failures despite clean ribbons, the printhead is reaching end-of-life and should be replaced.

Q: Can I use the R40683300 for both Direct Thermal and Thermal Transfer printing?

A: Yes. The printhead supports both methods. You can switch between heat-sensitive labels (Direct Thermal, no ribbon) and ribbon-based labels (Thermal Transfer) without printhead changes — just load the appropriate media and ribbon combination.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

James Everett

I spec'd the Sato R40683300 into a regional logistics operation running dual S84 printers for parcel and pallet labeling. The 166 ips throughput and tool-free replacement design proved critical — we reduced unplanned downtime by stocking a spare R40683300 in the print room, and maintenance staff could swap a degraded printhead in under two minutes without IT involvement.

Technical Highlights:

• 203 dpi resolution: Perfectly calibrated for GS1-128 and Code 128 barcodes on standard label stock. Meets USPS and carrier readability specifications. Avoid if you need 300+ dpi — you'll need a different printer entirely.
• 4.1-inch print width: Limits you to standard industrial label sizes. If your compliance labels are 5+ inches wide, confirm fit before purchase. This is a constraint, not a bug — it's how the S84/S86NX architecture is designed.
• Direct Thermal + Thermal Transfer support: Genuine flexibility. We switched the same printer between cost-sensitive shipping labels (Direct Thermal, no ribbon) and durable asset tags (Thermal Transfer) by just changing media. The R40683300 handles both without recalibration.

Deployment Considerations:

• The 60-degree head opening and tool-free design is real — no proprietary alignment tools needed, and that matters in high-volume environments where downtime is measured in cost-per-minute.
• Third-party printheads often cause ribbon slippage and thermal inconsistency. We tested a non-OEM alternative once — dot formation was visibly degraded within a week. Stick with genuine SATO parts. Your warranty depends on it.

Best fit: logistics, healthcare labeling, and asset tracking operations running SATO S84 or S86NX equipment that need rapid, tool-free printhead replacement without vendor escalation. If you're in the market for higher resolution or wider label width, you're spec'ing the wrong printer platform.
