SATO M84Pro 203dpi Industrial Thermal Transfer - WM8420231

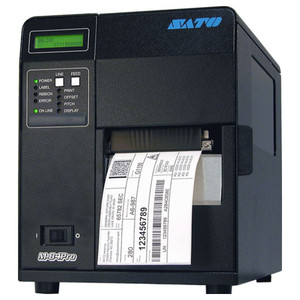

SATO M84Pro 203dpi Industrial Thermal Transfer Printer – WM8420231

The SATO M84Pro WM8420231 is a robust, enterprise-grade industrial thermal transfer printer engineered for high-volume label production in demanding logistics, manufacturing, and warehouse environments. Delivering 203 dpi resolution at 10 inches per second, this printer combines dual-mode printing flexibility with intuitive operation and minimal maintenance requirements, making it an ideal choice for organizations requiring reliable, consistent barcode and label output.

Key Features

• 203 dpi resolution at 10 ips for sharp barcode and text output
• Dual-mode printing: direct thermal and thermal transfer for maximum media compatibility
• 4.1" maximum print width supports standard shipping, compliance, and inventory labels
• 3.5" Color LCD display for intuitive configuration and status monitoring
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Field-changeable print heads support 203, 305, and 609 dpi configurations
• Industrial metal housing withstands warehouse and production-floor conditions
• Media capacity: 8.6" maximum roll diameter with ribbon spools up to 1,968 ft (600 m)
• Supports 1" to 4.5" media widths on 3" cores for flexible label sizing

Technical Specifications

• Print Resolution: 203 dpi
• Print Speed: 10 ips
• Maximum Print Width: 4.1"
• Memory: 2 MB Flash, 16 MB SDRAM, 2 MB user storage
• Connectivity: USB 2.0, Ethernet, RS-232C, Parallel
• Display: 3.5" Color LCD
• Media Range: 1" to 4.5" width; maximum 8.6" roll diameter
• Ribbon Capacity: Up to 1,968 ft (600 m)
• Dimensions: 15.0" x 10.6" x 11.6"
• Weight: 24.3 lbs (11.0 kg)
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F (5°C to 40°C)

Applications

• Shipping and logistics label production at high volumes
• Manufacturing part identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling (GHS, pharmaceutical, food)
• Retail and e-commerce label printing

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The SATO M84Pro WM8420231 stands out for its balance of speed, print quality, and operational simplicity in the mid-range industrial printer segment. The 203 dpi resolution at 10 ips delivers sufficient throughput for most enterprise label operations while maintaining crisp, scannable barcode output. The dual-mode capability is particularly valuable for organizations transitioning between direct thermal consumables and thermal transfer ribbon systems—a common scenario in evolving supply chains.

The tool-free printhead design and field-changeable dpi configuration are significant operational advantages, reducing printer downtime and enabling quick adaptation to changing label requirements without service calls. The 3.5" Color LCD provides superior visibility compared to monochrome interfaces, improving setup efficiency and reducing configuration errors. Multiple connectivity options (Ethernet, USB, RS-232C, Parallel) ensure integration flexibility across legacy and modern network infrastructures. The 24.3 lb footprint makes it suitable for fixed production stations in label rooms, shipping departments, and manufacturing floors. Memory capacity (2 MB Flash, 16 MB SDRAM) is adequate for standard business font libraries and barcode forms, though enterprises with extensive custom font libraries should verify storage requirements during procurement.
