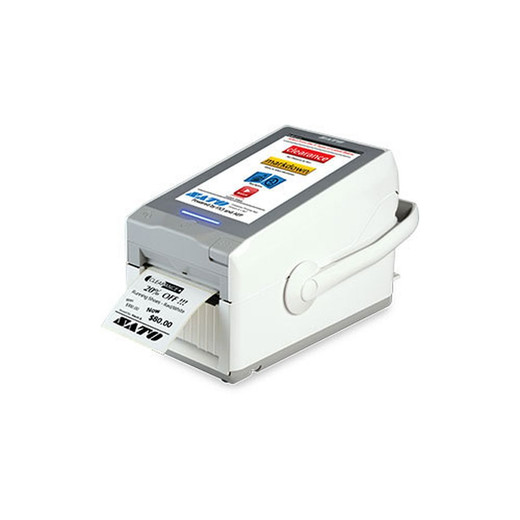

SATO FX3 WWFX31241-WMB 203dpi Thermal Printer

SATO FX3 WWFX31241-WMB 203dpi Specialty Thermal Printer

The SATO FX3 WWFX31241-WMB is a rugged, enterprise-grade specialty thermal printer engineered for demanding mobile and stationary labeling applications. With 203dpi resolution, 6 ips print speed, and direct thermal printing capability, this device delivers crisp barcode and text output for logistics, manufacturing, and warehouse environments. The compact 5.19" × 8.875" × 6.3125" form factor and 5.0 lb weight make it ideal for both desktop deployment and mobile field operations.

Key Features

• 203 dpi resolution at 6 ips for professional-quality barcode and text printing
• 1.10" maximum print width with media range of 1" to 3.15"
• Direct thermal printing—no ribbon required for cost-effective label production
• 7" full-color touchscreen display for intuitive, PC-less operation
• 512 MB Flash, 256 MB SDRAM, and 256 MB user storage for fonts, forms, and graphics
• Rugged IPx2 splash-proof rating and IK06 vandal resistance for harsh environments
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• Multi-protocol connectivity: USB, Ethernet, Wi-Fi, and Bluetooth
• Flexible power: AC adapter or rechargeable 1950 mAh, 14.4V Li-ion battery
• Supports media rolls up to 5.3" outer diameter with 984 ft ribbon capacity
• HTTPS encryption for secure data transmission
• Day/night operation mode for visibility in varied lighting conditions
• Operating temperature range: 41°F to 104°F

Technical Highlights

The WWFX31241-WMB combines portability with industrial durability. Its IPx2 splash resistance and IK06 vandal rating protect against accidental liquid exposure and impacts typical in warehouse and shipping dock environments. The 7" touchscreen enables operators to configure jobs, load media, and adjust settings without tethering to a PC, streamlining workflow in dynamic settings.

Quad-mode connectivity—USB 2.0, Ethernet, Wi-Fi, and Bluetooth—ensures seamless integration into existing enterprise networks and mobile workflows. HTTPS encryption safeguards label data and printer configuration, meeting security requirements for regulated industries. Battery operation (1950 mAh, 14.4V) supports mobile scanning, field verification, and temporary deployments without AC infrastructure.

Typical Applications

• Shipping and logistics label production
• Manufacturing part identification and serialization
• Warehouse inventory and routing labels
• Compliance and regulatory labeling (healthcare, pharmaceuticals, hazmat)
• Field service and mobile ticketing
• Real-time asset tracking and management

Marty Allison

The FX3 targets the intersection of mobility and ruggedness. Its 203dpi resolution and direct thermal mode are optimal for high-volume, cost-sensitive barcode applications where ribbon costs matter. The 7" touchscreen and battery option differentiate it from older compact printers, enabling truly mobile label printing without laptop dependency.

Day/night mode, HTTPS encryption, and splash/vandal ratings reflect modern supply chain security and durability demands. For organizations balancing portability, speed, and environmental resilience, the WWFX31241-WMB delivers a pragmatic platform with enterprise-grade reliability.

Product Documentation

📄 Download Product Datasheet (PDF)
