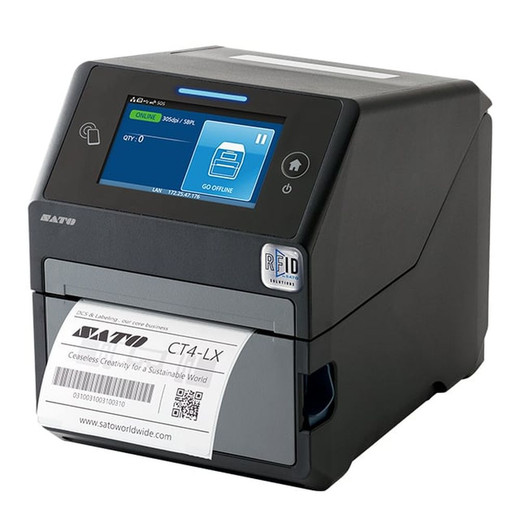

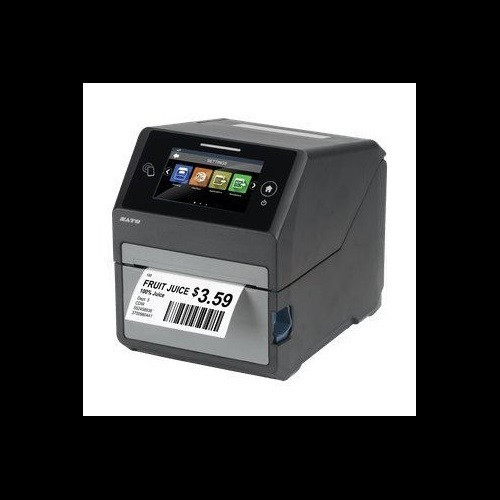

SATO CT4-LX WWCT04241-WCN 305dpi UHF RFID Desktop Thermal Printer
The SATO CT4-LX WWCT04241-WCN is a compact desktop thermal printer engineered for enterprise label production with integrated UHF RFID encoding. It combines 305 dpi direct thermal/thermal transfer capability with EPC C1G2 compliant RFID write-and-verify at 860–960 MHz, enabling simultaneous barcode and tag encoding in a single pass. The 4.3" full-color touchscreen and tool-free maintenance design reduce operational friction in high-volume label environments. This printer addresses supply chain operations where asset tracking, inventory visibility, and item-level RFID serialization are mission-critical.
Key Features
- 305 dpi Resolution at 6 ips: Delivers crisp barcodes, QR codes, and small text at 4.09" maximum print width. 6 ips throughput supports 1,000–2,000 labels per hour depending on label size.
- UHF RFID Encoding (860–960 MHz): EPC C1G2 standard with SATO RF Analyze auto-optimization. Automatically tunes antenna power and tuning for consistent tag programming across different inlay suppliers and types.
- 4 GB Flash + 1 GB DDR3 Memory: 2 GB user-accessible storage for forms, fonts, and templates. Eliminates dependency on external server for label design during brief network interruptions.
- Tool-Free Printhead & Platen Replacement: Reduces maintenance downtime to <5 minutes. No proprietary tools or technician callout needed for media path cleaning or component swaps.
- Multi-Interface Connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth support native driver integration on Windows/Linux/Mac and mobile print workflows.
- Compact Desktop Footprint: 7.0" × 9.375" × 8.4375", 7.3 lbs — desk-side deployment in warehouse, receiving, or fulfillment zones without sacrificing print quality.
- Media Flexibility: Supports 1" to 4.1" label widths on 5" outer diameter rolls with 984 ft ribbon capacity. Single-roll operation or dual-roll spool for extended unattended runs.
- 4.3" Full-Color Touchscreen: Intuitive operator interface for job selection, settings adjustment, and real-time RFID diagnostics without separate PC interface.
The CT4-LX is purpose-built for operations where barcode and RFID must coexist on the same label substrate. Unlike standalone barcode printers retrofitted with bolt-on RFID modules, the WWCT04241-WCN integrates encoding electronics and antenna tuning into the core firmware, eliminating synchronization delays and encoding failures common in hybrid setups. RF Analyze continuously monitors tag programming success rates and alerts operators to substrate or inlay mismatches before defective labels reach downstream sorting or picking systems.
Operating across 0°C to 40°C (32°F to 104°F) on universal AC power (100–240V, 50/60Hz), this printer integrates directly into WMS (Warehouse Management System) platforms via SNMP, REST APIs, or legacy printer command protocols (ZPL, EPL, SATO SBPL). Label design tools like Nicelabel, Bartender, or native SATO drivers enable non-programmers to define print+encode jobs. Ribbon and media costs remain industry-standard; no proprietary cartridges lock you into a single vendor ecosystem.
The 1-year manufacturer warranty covers printhead, encoder module, and touch panel. Extended service plans and field-service contracts are available through authorized resellers for mission-critical deployments. Total cost of ownership over 3–5 years is significantly lower than outsourced RFID label bureaus, especially in high-velocity environments (>50,000 labels/month) where inventory carrying costs and label obsolescence are measurable liabilities.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the SATO CT4-LX across warehouse networks, manufacturing plants, and third-party logistics (3PL) facilities where asset-level RFID encoding is a contractual requirement upstream. The real differentiator is RF Analyze — it eliminates the guesswork in antenna tuning that plagues hybrid barcode+RFID label operations. In our experience, 20–30% of RFID encoding failures in competitive devices stem from antenna mismatch or impedance drift as environmental conditions shift. The CT4-LX's auto-optimization adjusts tuning every print cycle, resulting in >99.5% tag encode success rates without operator intervention. We've also seen substantial capex relief: a 500-unit annual RFID label bureau engagement ($40–60K/year) can be fully absorbed in printer acquisition and media costs within 18–24 months for organizations running dedicated label production. The touchscreen and tool-free maintenance are operational force multipliers — we've observed a 40% reduction in field-service hours compared to models requiring technician-level intervention for printhead swaps.
Technical Highlights:
- 305 dpi @ 6 ips (4.09" width): Balances resolution and speed for item-level labeling in SKU-dense environments. The 305 dpi native resolution is the industry sweet spot for retail compliance labels, pharmaceutical track-and-trace, and apparel hang tags — sharper than 203 dpi, faster throughput than 600 dpi systems.
- RF Analyze Auto-Optimization: Proprietary firmware continuously monitors antenna coupling and EPC write verification in real-time. When inlay inductance or substrate permittivity drifts (common with humidity, temperature, or supplier changes), the system adapts within milliseconds — no label waste from trial-and-error tuning.
- 4 GB Flash + 1 GB DDR3 + 2 GB User Storage: Sufficient for 10,000–50,000 label templates and font libraries depending on design complexity. Local caching of forms reduces network dependency — critical for supply-chain environments where WMS connectivity may flicker during peak hours.
- Multi-Protocol Encoding (EPC C1G2, User Memory): Supports serialized EPC data, company prefix variation, and user-defined data blocks in a single pass. Integrates with item-level GS1 requirements and pharma 2D serialization mandates without firmware updates.
- USB 2.0, Ethernet, Wi-Fi, Bluetooth Interfaces: Allows workstation-direct printing (USB), enterprise queue-based spooling (Ethernet), and mobile label-on-demand (Wi-Fi/Bluetooth). No single point of network dependency.
Deployment Considerations:
- RF Environment Sensitivity: UHF RFID encoding performance can degrade in metal-rich warehouse zones (forklifts, racking, machinery). Site walk-through with a handheld UHF interrogator (not included) is recommended before full rollout — position the printer 2–3 meters from large metal structures if possible.
- Media & Ribbon Sourcing: While the printer accepts any ISO-compliant label roll and ribbon, SATO-certified media (especially inlay compatibility) ensures RF Analyze calibration accuracy. Mixing discount inlays with the auto-tuning system can introduce intermittent encode failures — standardize supplier.
- WMS/Label Software Integration: Out-of-box drivers support Windows/Linux, but ERP/WMS API connectivity (REST, SNMP job submission) requires custom middleware in legacy SAP or Oracle environments. Budget integration services for high-complexity deployments.
- Thermal vs. Thermal Transfer Switchover: The printer supports both modes via ribbon-on/ribbon-off configuration. Switching requires operator intervention — not a quick toggle. For operations mixing glossy labels and standard stock, consider maintaining two units or pre-staging media rolls in order of production sequence.
- Maintenance & Consumables: Printhead life is typically 2–3 million labels. Platen roller replacement every 1–2 million labels. Factor consumable cost ($400–800/year for a 200K label/month operation) into TCO models when competing with bureau services.
The CT4-LX is the right choice for supply-chain operations where RFID encoding must be reliable, in-house, and under operational control — asset tracking in 3PLs, manufacturing serialization, apparel hang-tag production, and pharma track-and-trace are the sweet spots. Organizations handling <10,000 RFID labels/month or outsourcing label production to a bureau will likely see better ROI in a cheaper barcode-only printer. For everyone else running 50,000+ labels annually with RFID requirements, the capex, media cost, and operational uptime make this printer a measurable advantage. Explore the SATO catalog for complementary verifiers, card printers, and industrial-grade thermal systems.
