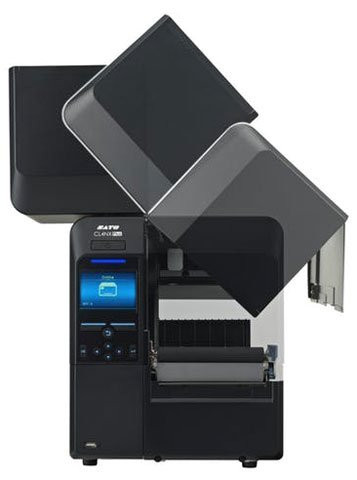

SATO CL4NX Plus 609dpi Industrial Thermal Transfer Printer

SATO CL4NX Plus 609dpi Industrial Thermal Transfer Printer – WWCLP3001-NMN

The SATO WWCLP3001-NMN is a high-performance industrial thermal transfer printer engineered for enterprise-scale label production. With 609 dpi resolution and 14 ips print speed, this CL4NX Plus series device delivers sharp, reliable output for demanding logistics, manufacturing, and compliance labeling environments. The rigid cast aluminum frame with corrosion-resistant material ensures durability in harsh warehouse and production settings.

Key Features

• 609 dpi resolution for crisp barcodes, QR codes, and text
• 14 ips print speed with 4.09" maximum print width
• Dual-mode direct thermal and thermal transfer printing for media flexibility
• 2 GB Flash memory and 256 MB SDRAM with 100 MB user storage for fonts and forms
• 3.5" full-color LCD touchscreen for intuitive configuration and monitoring
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• Supports media widths from 0.87" to 5.04" on 1" or 3" cores
• Ribbon capacity up to 1,968 ft (600 m) for extended run times
• Media roll diameter up to 10" for high-volume operations

Connectivity & Integration

Multiple connectivity options ensure seamless integration into existing enterprise systems. Ethernet, Wi-Fi, and USB interfaces enable direct network printing, wireless label distribution, and PC-based driver support. The printer's robust memory and SATO AEP standalone apps provide flexibility for offline operation and custom workflow automation.

Technical Specifications

• Resolution: 609 dpi
• Print Speed: 14 ips
• Maximum Print Width: 4.09"
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Media Range: 0.87" to 5.04" width, up to 10" roll diameter
• Ribbon Capacity: 1,968 ft (600 m)
• Interfaces: Ethernet, Wi-Fi, USB
• Display: 3.5" full-color LCD
• Frame: Rigid cast aluminum with corrosion-resistant material
• Dimensions: 10.66" W x 17.99" D x 12.63" H
• Weight: 33 lbs (15 kg)
• Operating Temperature: 41°F to 104°F (5°C to 40°C)
• Power: AC 100-240V, 50/60Hz

Typical Applications

• High-volume shipping and logistics label printing
• Manufacturing part identification and serialization
• Warehouse inventory management and routing labels
• Compliance, regulatory, and pharmaceutical labeling
• Retail and product labeling operations

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CL4NX Plus WWCLP3001-NMN balances speed, quality, and durability for mission-critical label production. The 609 dpi resolution at 14 ips output strikes an ideal middle ground between high-speed commodity printing and ultra-fine barcode/security applications. The dual thermal mode capability eliminates the need for separate printer models when switching between direct thermal consumables and transfer ribbon operations.

Cast aluminum construction resists corrosion in humid, chemical-rich, or extreme temperature environments common in manufacturing and logistics. The 3.5" touchscreen and tool-free maintenance access reduce operator training time and total cost of ownership. For organizations managing complex SKUs, regional compliance requirements, or high-volume SKU changes, the 100 MB user storage and SATO AEP app framework provide sufficient flexibility without requiring enterprise-class software licensing.

Network connectivity via Ethernet and Wi-Fi ensures reliable integration with WMS and ERP systems, making this printer suitable for decentralized warehouse operations or multi-location enterprises.
