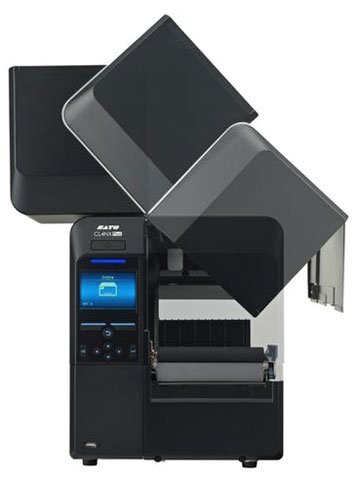

SATO WWCLP2501-NAR CL4NX Plus 305dpi Industrial Thermal Transfer Printer

The SATO WWCLP2501-NAR is a robust industrial-grade thermal transfer printer engineered for high-volume enterprise labeling operations. Combining 305 dpi resolution with 14 inches-per-second (ips) print speed, this CL4NX Plus model delivers professional-quality barcodes, text, and graphics on demand. The printer's dual-mode capability—supporting both direct thermal and thermal transfer printing—provides maximum flexibility for diverse media requirements across shipping, manufacturing, and logistics environments.

Key Features

305 dpi resolution at 14 ips for sharp, scannable barcode and text output

Maximum print width of 4.09 inches accommodating standard enterprise label formats

Dual-mode operation: direct thermal and thermal transfer printing

2 GB Flash memory and 256 MB SDRAM with 100 MB user-accessible storage for forms, fonts, and graphics

3.5-inch full-color LCD touchscreen for intuitive configuration and monitoring

Tool-free printhead and platen roller replacement to minimize maintenance downtime

Media roll capacity up to 10 inches outer diameter with ribbon support to 1,968 feet

Media width range: 0.87 to 5.04 inches on 1-inch or 3-inch cores

Rigid cast aluminum frame with corrosion-resistant construction for industrial durability

Connectivity & Interfaces

The WWCLP2501-NAR offers comprehensive connectivity options including Ethernet, Wi-Fi, and USB 2.0, along with RS-232C, Parallel, Bluetooth 3.0, and NFC support. Multiple interface options enable seamless integration into existing enterprise network infrastructure and workflow systems.

Technical Specifications

Print Method: Direct Thermal / Thermal Transfer

Resolution: 305 dpi

Print Speed: 14 ips

Maximum Print Width: 4.09 inches

Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage

Display: 3.5-inch full-color LCD

Dimensions: 10.66" W x 17.99" D x 12.63" H

Weight: 33 lbs

Power Input: AC 100-240V, 50/60Hz

Operating Temperature: 41°F to 104°F

Media Support: 0.87" to 5.04" width, up to 10" roll diameter

Ribbon Capacity: Up to 1,968 feet

Typical Applications

High-volume shipping and logistics label production

Manufacturing asset identification and product tracking

Warehouse inventory management and routing labels

Compliance and regulatory labeling requirements

Healthcare and pharmaceutical labeling

Retail and e-commerce fulfillment operations

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WWCLP2501-NAR delivers enterprise-class printing performance for organizations requiring dependable, high-resolution label production at scale. The 305 dpi specification ensures barcode accuracy and readability across standard symbologies (Code128, QR, etc.), critical for supply chain and regulatory compliance. Dual-mode printing flexibility allows operators to choose direct thermal for cost-sensitive applications or thermal transfer for extended label shelf-life and durability in harsh environments.

The 14 ips speed balances throughput with print quality, suitable for moderate to high-volume operations without requiring industrial-scale footprint. Wide media range support (0.87" to 5.04") and ribbon capacity to 1,968 feet reduce changeovers, improving uptime. Tool-free maintenance and the full-color LCD interface lower total cost of ownership and operator training burden.

Connectivity options including Wi-Fi and Ethernet enable network integration for centralized print job management, essential in modern warehouse automation architectures.
