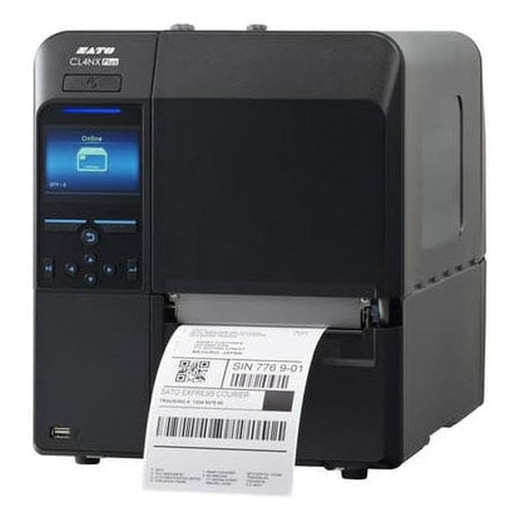

SATO CL4NX Plus 203dpi Industrial Thermal Transfer Printer

SATO CL4NX Plus 203dpi Industrial Thermal Transfer Printer – WWCLP1501-NAR

The SATO WWCLP1501-NAR is a robust industrial-grade thermal transfer printer engineered for high-volume enterprise labeling operations. Combining 203 dpi resolution with 14 inches-per-second print speed, this CL4NX Plus model delivers sharp, professional-quality barcodes and text on labels up to 4.09" wide. With dual direct thermal and thermal transfer capability, flexible media handling, and intelligent system architecture, the WWCLP1501-NAR addresses demanding shipping, manufacturing, and compliance labeling workflows.

Key Features

• 203 dpi resolution at 14 ips for crisp barcode and text output
• Dual-mode printing: direct thermal and thermal transfer
• Maximum print width of 4.09"; supports media from 0.87" to 5.04" width
• 2 GB Flash + 256 MB SDRAM with 100 MB user-accessible storage for fonts and forms
• 3.5" full-color LCD display for intuitive menu navigation
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• Multiple connectivity options: USB 2.0, Ethernet, Wi-Fi, RS-232C, Parallel, Bluetooth 3.0, and NFC
• Rigid cast aluminum frame with corrosion-resistant construction
• Media roll capacity up to 10" outer diameter; ribbon support up to 1,968 feet
• Media core options: 1" or 3" cores for operational flexibility

Technical Specifications

• Print Resolution: 203 dpi
• Print Speed: 14 ips
• Maximum Print Width: 4.09"
• Media Width Range: 0.87" to 5.04"
• Maximum Media Diameter: 10"
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Display: 3.5" full-color LCD
• Connectivity: USB 2.0, Ethernet, Wi-Fi, RS-232C, Parallel, Bluetooth 3.0, NFC
• Power: AC 100–240V, 50/60 Hz
• Operating Temperature: 41°F to 104°F
• Dimensions: 10.66" W × 17.99" D × 12.63" H
• Weight: 33 lbs

Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and product tracking
• Warehouse inventory management and routing
• Compliance and regulatory labeling
• Healthcare and pharmaceutical labeling
• Retail and point-of-sale label generation

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO WWCLP1501-NAR stands out as a dependable workhorse for organizations requiring consistent, high-quality label output in demanding environments. The 203 dpi resolution strikes an effective balance between print clarity and throughput, making it suitable for both barcode-heavy logistics operations and detailed compliance labeling. The dual thermal capability—supporting both direct thermal media (for cost-effective short-run labels) and thermal transfer (for durability and longer shelf life)—maximizes operational flexibility without requiring separate hardware investments.

The 2 GB Flash memory and 256 MB SDRAM provide substantial capacity for complex label designs, custom fonts, and batch processing workflows. Real-world performance benefits from tool-free maintenance access, which reduces technician time and lowers total cost of ownership. Connectivity options spanning USB, Ethernet, Wi-Fi, Bluetooth, and NFC enable seamless integration into both legacy networked environments and modern IoT-enabled label management systems. The 3.5" full-color LCD streamlines operator interaction, reducing training overhead. For enterprises processing thousands of labels daily across multiple departments or locations, the WWCLP1501-NAR's combination of speed, reliability, and enterprise-grade features justifies the investment.
