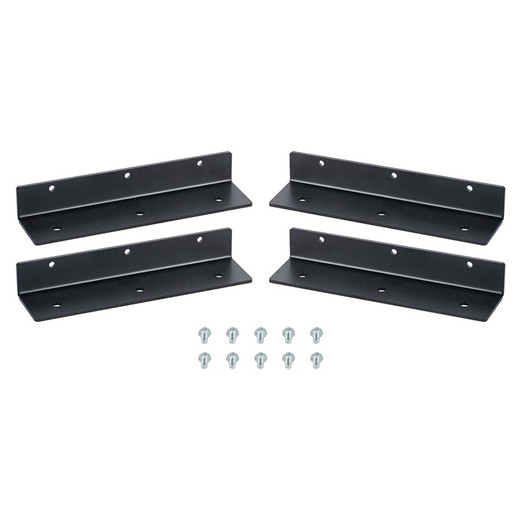

Panduit SAKOSHPD OSHPD Seismic Bracket for S-Type Cabinets

Panduit SAKOSHPD Net-Access™ OSHPD Seismic Mounting Bracket

The Panduit SAKOSHPD heavy-duty mounting bracket addresses California's Office of Statewide Health Planning and Development (OSHPD) seismic certification requirements for network infrastructure in healthcare facilities. Designed specifically for Panduit Net-Access S-Type cabinets, this 16-inch steel bracket anchors critical IT equipment to building structures in Seismic Design Categories D, E, and F—the zones covering most of California's hospital construction. Healthcare integrators installing structured cabling systems, nurse call networks, medical imaging VLANs, or patient monitoring infrastructure in new hospitals, surgical centers, or major renovations encounter OSHPD's rigorous shake-table testing and third-party inspection mandates. This bracket provides the engineered anchorage point that satisfies both the structural engineer's seismic calculations and the OSHPD inspector's field verification checklist, eliminating the common problem of using generic hardware that fails pre-occupancy inspection and forces costly rework during final commissioning.

Key Features

• OSHPD pre-approved design for California healthcare facility seismic compliance
• Heavy-duty steel construction for S-Type Net-Access cabinet anchorage
• 16" width spans standard stud spacing for structural attachment
• 2.6" vertical profile fits between cabinet rails and wall surfaces
• Black powder-coat finish matches Panduit cabinet aesthetics
• RoHS compliant for California e-waste regulations

OSHPD certification represents California's highest seismic safety standard—exceeding International Building Code requirements by mandating independent structural testing, third-party plan review, and inspector sign-off at every construction phase. Hospitals must remain operational after major seismic events to serve disaster response needs, so network cabinets housing nurse call systems, pneumatic tube controls, imaging VLANs, and EMR server infrastructure cannot simply be bolted to drywall. The SAKOSHPD bracket bridges the gap between the cabinet's internal mounting rails and the building's structural framing, transferring lateral seismic loads into wall studs or concrete anchors rated for the facility's Seismic Design Category. This prevents the scenario where a 600-pound loaded cabinet tips during ground motion, severing fiber trunks and copper risers that connect operating rooms to central IT, radiology to PACS storage, or telemetry monitors to the clinical data repository. Integrators working under design-build contracts or telecom-infrastructure scopes in California healthcare projects need documentation proving every component meets OSHPD's acceptance criteria—this bracket's inclusion on approved-equipment lists eliminates submittal rejection and the multi-week re-engineering cycle that delays certificate-of-occupancy milestones.

The 16-inch width aligns with standard 16-inch on-center wood or metal stud framing, allowing the bracket to span at least two studs for load distribution. Installation typically occurs during the rough-in phase after framing inspection but before drywall, when the structural engineer's seismic anchorage schedule is transferred from construction drawings to physical hardware. The bracket mounts to the back of the S-Type cabinet using the cabinet's pre-drilled holes, then extends to the wall where installers drive code-compliant fasteners—often 3/8-inch lag screws into wood framing or expansion anchors into concrete/CMU, torqued to the engineer's specified values and documented on the inspector's daily report. The 2.6-inch height provides enough standoff to clear conduit knock-outs and cable management channels on the cabinet's rear panel while maintaining a low profile that doesn't interfere with hinged side panels or top-entry cable pathways. Black powder-coat finish prevents corrosion in mechanical rooms where HVAC condensation or housekeeping spray-downs introduce moisture, and visually disappears behind the cabinet where only inspectors and service technicians see it during maintenance access.

This bracket is purpose-built for Panduit's Net-Access S-Type cabinet family—the shallow-depth wall-mount enclosures commonly specified for telecom rooms, IDF closets, nurse stations, and imaging equipment alcoves where floor space is constrained. S-Type cabinets range from 5U to 12U heights and house Ethernet switches, fiber patch panels, PoE injectors for IP cameras and access points, nurse call interface modules, and building automation controllers. OSHPD projects often involve replacing decades-old nurse call and CCTV infrastructure with IP-based unified systems during seismic retrofit or new-wing construction, requiring tens or hundreds of wall-mount cabinets distributed across patient floors, diagnostic wings, and support facilities. Using a bracket with existing OSHPD approval streamlines the submittal process—the structural engineer references Panduit's tested assembly rather than performing custom calculations for generic hardware, the contractor's submittal package gets approved on first review instead of cycling through RFIs, and the inspector's field verification becomes a checklist item ("SAKOSHPD bracket installed per approved drawings") rather than a hold point requiring engineering judgment calls. For integrators billing time-and-materials or working under fixed-price contracts, this difference translates to faster closeout, fewer change orders, and lower risk of liquidated damages for delayed substantial completion.

California's OSHPD regulations apply to general acute-care hospitals, acute psychiatric hospitals, skilled nursing facilities, and intermediate care facilities—any healthcare building where patients receive overnight care and the structure must remain functional post-earthquake. Seismic Design Categories are assigned based on USGS ground motion maps and soil classification: most coastal California and the San Francisco Bay Area fall into SDC D or E, while areas near the San Andreas Fault can reach SDC F. Each category imposes progressively stricter detailing requirements for non-structural components, including network cabinets. A cabinet that would meet code in SDC B (much of the Midwest) fails OSHPD inspection in SDC D without proper anchorage, redundant attachment points, and flexible conduit connections to prevent seismic interaction damage. The SAKOSHPD bracket's approval under these standards means it has been analyzed for the amplified seismic forces that occur at elevated floors (where IDF closets often sit), tested for cyclic loading that simulates repeated aftershocks, and verified for compatibility with California's Title 24 energy code and CALGreen environmental standards—layers of compliance that generic commercial brackets don't address.

Panduit SAKOSHPD OSHPD-certified seismic mounting bracket for Net-Access S-Type cabinets in California healthcare facility installations requiring heavy-duty structural anchorage, third-party inspection approval, and engineered seismic load transfer per Seismic Design Category D/E/F standards.
