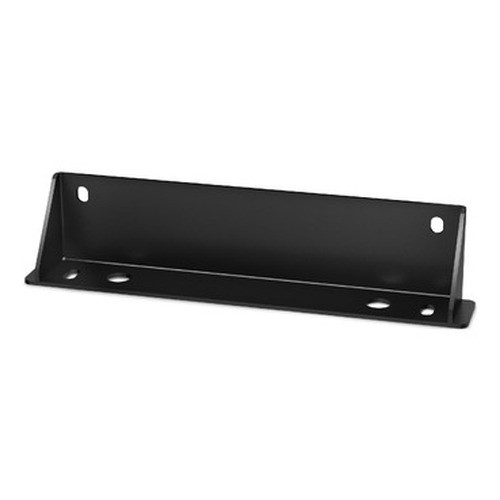

APC by Schneider Electric Netshelter SX High Seismic Region & Oshpd Bolt-down KIT - AR7701AWHT-S

APC by Schneider Electric AR7701AWHT-S Seismic Bolt-Down Kit

Overview

The APC by Schneider Electric AR7701AWHT-S is a seismic region and OSHPD bolt-down kit designed to secure NetShelter SX enclosures. This kit provides critical stability for IT infrastructure in areas prone to seismic activity, preventing enclosure tipping and ensuring the physical integrity of mounted equipment. It's engineered for environments requiring stringent seismic compliance, such as California OSHPD facilities.

Compatibility

This bolt-down kit is specifically designed for APC NetShelter SX enclosures. It is compatible with the following NetShelter SX series: SX18U, SX24U, SX32U, SX42U, SX48U, and SX48U with extended depth. Ensure your specific NetShelter SX model is listed for proper fitment.

Installation Notes

Installation requires securing the kit's base angles to the concrete floor using appropriate anchor bolts (not included). The kit includes hardware for attaching the base angles to the bottom of the NetShelter SX enclosure. Refer to the manufacturer's installation guide for precise anchor bolt specifications, torque values, and recommended floor preparation for your specific seismic zone requirements. Tools required include a level, drill, and appropriate wrenches.

What's in the Box

• 2x Base angles
• 4x Mounting brackets
• 8x M6x20mm screws
• 8x M6 washers
• 8x M6 lock washers
• 4x M8x25mm screws
• 4x M8 washers
• 4x M8 lock washers
