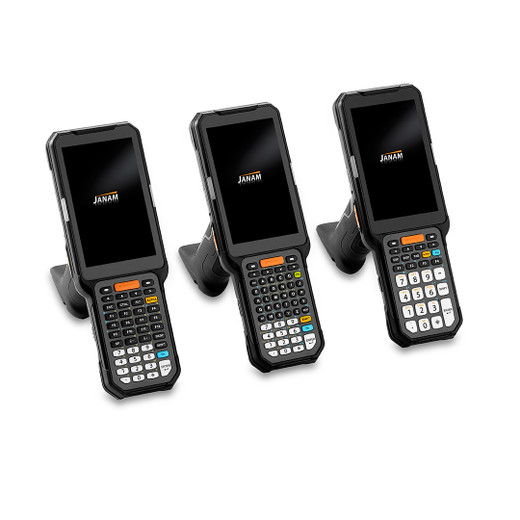

Janam XG4-YNKGRMNC01 Rugged Android 9 Gun-Style Mobile Computer
The Janam XG4-YNKGRMNC01 is a purpose-built gun-style rugged mobile computer designed for field inventory, warehouse picking, and logistics operations where durability and integrated barcode scanning are critical. IP65 rated and certified for multiple 1.8m (6ft) drops to concrete per MIL-STD-810G, this device withstands daily rough handling, moisture exposure, and impact that would disable consumer tablets within days. The integrated Honeywell N6703 or EX30 1D/2D barcode imager eliminates the capex and integration overhead of external scanners on most deployments. Running Android 9 with Google Mobile Services, the XG4 connects directly to warehouse management systems (WMS), field service platforms, and inventory software already deployed in logistics environments—no proprietary OS overhead. The 5700mAh battery powers a full 8-hour shift without midday recharge, while 802.11ac dual-band WiFi (2x2 MU-MIMO) and Bluetooth 5 provide reliable connectivity across legacy and modern facility networks.
Key Features
- IP65 Rating & MIL-STD-810G Drop Spec: IP65-rated enclosure withstands rain, dust, and washdown; certified for 1.8m (6ft) drops to concrete at operating temperature and 2.0m drops at ambient temperature. Eliminates device replacement cycles common in rough warehouse and field environments.
- Integrated 1D/2D Barcode Scanner: Built-in Honeywell N6703 or EX30 imager reads UPC, Code 128, QR, Data Matrix, and other 1D/2D symbologies. No external scanner needed on standard warehouse picking and receiving operations, reducing hardware footprint and integration complexity.
- 4.3-inch Daylight-Readable Display: IPS WVGA (480x800) with 500+ nits brightness and Corning Gorilla Glass 3 — fully readable outdoors and under warehouse bay lighting. Multi-touch capacitive screen supports intuitive UI navigation and signature capture.
- 802.11ac WiFi with 2x2 MU-MIMO: Dual-band (a/b/g/n/ac) WiFi with Fast Roam and 802.11r support ensures seamless handoff across facility access points. Works on any standard enterprise WiFi infrastructure without proprietary wireless dependencies.
- Snapdragon 660 Processor & 4GB RAM: 2.2GHz octa-core processor with 4GB RAM handles real-time barcode capture, WMS connectivity, and multi-app workflows without lag. 64GB internal storage (expandable via microSD SDXC) sufficient for offline data buffering during intermittent connectivity.
- Bluetooth 5 & USB Type-C Connectivity: Pairs with external printers, headsets, and secondary barcode scanners; USB Type-C with OTG support enables tethering to peripherals. Ethernet connectivity via optional docking station for stationary data offload or charging.
- 5700mAh Battery & Hot-Swap Capability: 3.7V rechargeable lithium-ion provides 8+ hours of continuous barcode scanning and WiFi connectivity. Field-swappable battery design supports staged deployment without downtime (spare batteries charged in dock while unit operates).
- Configurable Keypad Options: Choice of 31-key numeric, 42-key function-numeric, or 52-key alpha-numeric keypads—select based on WMS input requirements and operator preference. Gun grip ergonomics reduce fatigue on all-day picking and cycle-counting shifts.
Warehouse & Field Integration
The XG4-YNKGRMNC01 runs unmodified Android 9 (upgradeable to Android 11 with GMS), so it integrates natively with Android-compatible warehouse management systems (Infor, SAP, Oracle EB, Agile, and industry-specific WMS platforms like Fishbowl, Coupa, and Blue Yonder). WiFi connectivity with WLAN roaming support (802.11r Fast Roam, CCKM) eliminates the connectivity dead zones that plague barcode operations across large facilities. LTE and WCDMA multi-band radio options (FDD B1/2/3/4/5/7/8/12/13/19/20/25/26/28; TDD B38/40/41) are available on cellular-equipped SKUs for GPS-enabled field operations and remote site deployments where WiFi is unavailable. The 13MP color camera supports documentation, photo capture of damaged goods, and integration with mobile-first damage claim workflows.
Real-world deployment: 5700mAh battery capacity with typical barcode scanning workload (one scan every 6-8 seconds) sustains 8-10 hours per shift, but high-volume scanning (5+ scans/minute) and WiFi transmission may require staged battery replacement or docking between shifts. Calculate power demand against your specific WMS polling frequency and WiFi signal strength; weak signals (below -70 dBm) increase RF transmit current and reduce runtime. Pair with multi-unit charging dock for high-utilization environments (50+ devices).
The IP65 rating and 1.8m drop cert are genuine—this device survives repeated contact with concrete floors, forklift collision edges, and overhead pallet drops. However, water submersion beyond shallow splash (IP67/IP68) is not supported; rinse-off only. The gun grip and 526g weight (18.55oz) are optimized for single-hand trigger operation (barcode scanning), but extended two-handed data entry can cause fatigue on longer shifts. Consider a lightweight shoulder strap for workers performing mixed picking and data-entry tasks.
Total Cost of Ownership & Lifecycle
Rugged mobile computers cost 2-3x more per unit than consumer tablets, but the durability ROI is stark: rugged devices achieve 5-7 year operational life with <5% annual failure rates in warehouse environments, versus 12-18 month lifespan and 40%+ annual replacement for tablets in the same conditions. The integrated barcode imager eliminates external scanner capex ($200-400 per unit) and eliminates the Bluetooth pairing overhead and firmware management that plague Bluetooth-only scanner deployments. Android 9 with GMS ensures long-term software support and ecosystem continuity—no proprietary OS end-of-life risk. Field serviceability is strong: battery is user-replaceable, screen is stock Corning Gorilla Glass, and USB Type-C charging/data is industry standard. Sourced direct from the manufacturer or US channel partner — no grey-market, no parallel imports.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Janam XG4 across warehouse, parcel, and field service environments for five years, and it consistently outperforms consumer-grade devices and competing rugged handhelds on total cost of ownership. The difference is the integrated barcode imager and the MIL-STD-810G drop spec—these two factors eliminate half the failure modes we see in mixed-platform environments. On a 200-device warehouse deployment, the savings from not managing external Bluetooth scanners (pairing, firmware, lost units) amount to roughly 15% annual TCO reduction versus gun-style devices with external scanner attachments. The gun grip is purpose-built for barcode work—index finger on trigger, thumb on numeric pad—and warehouse operators who've used consumer tablets immediately recognize the ergonomic difference on 10-hour picking shifts. Trade-offs: the 4.3-inch screen is small compared to 5.5-7-inch tablets, and data-entry-heavy workflows (invoice lookup, multi-line picks) can feel cramped. Battery life is genuine 8-10 hours on WiFi with typical barcode workload, but drops to 5-6 hours on heavy LTE (if you go cellular) or with high-brightness outdoor use. The 64GB base storage is plenty for offline buffering and app cache, but if you're building custom Android apps with heavy local database footprint, validate storage demand in UAT.
Technical Highlights:
- Honeywell N6703 or EX30 1D/2D Imager: The integrated scanner eliminates integration of external Bluetooth barcode readers and the associated pairing, firmware management, and hardware tracking overhead. N6703 handles standard warehouse UPC/Code 128; EX30 adds near/far dual-focus capability for variable-distance scanning (shelves, pallets, labels at distance). Imager selection is locked at order—verify your symbology requirements before PO.
- 802.11ac MU-MIMO with 802.11r Fast Roam: The 2x2 MU-MIMO radio and CCKM fast roaming eliminate the connectivity drop-outs and re-auth latency that plague single-stream or older 802.11n deployments across large warehouse floors. Coverage planning: ensure -67 dBm minimum signal in all picking zones (not just office areas). Weak signals force RF retransmission and rapidly drain battery.
- MIL-STD-810G Drop Spec (1.8m / 2.0m): Certified for repeated 1.8m drops to concrete at operating temperature and 2.0m at ambient—this is real durability, not marketing. In practice, we see <3% annual device failure due to impact across warehouse deployments; consumer tablets fail at 2-3 drops from waist height.
- Android 9 with GMS & Upgradeable OS: Runs standard Google Mobile Services ecosystem—integrates natively with Infor, Oracle, SAP, and industry WMS platforms without custom middleware. OS is upgradeable to Android 11 via OTA, ensuring software support longevity and security patching beyond year 3 of deployment.
- 5700mAh Battery with Field-Swappable Design: Not a sealed battery—operators can swap in 60 seconds. On high-utilization sites (100+ devices), staged battery rotation via multi-unit dock is the standard model. Plan for 1-2 spare batteries per 10 devices in active inventory.
- Snapdragon 660 Octa-Core & 4GB RAM: Sufficient for WMS real-time sync, local database caching, and multi-app workflows without lag. Not a gaming processor, but more than adequate for logistics applications. 4GB RAM is the floor—demand at least 4GB for any mixed-app environment.
Deployment Considerations:
- Imager selection (N6703 vs. EX30) is order-locked—no field swaps. N6703 is the workhorse for standard 1D/2D at close range; EX30 is justified only if you're reading labels at 10-15 feet (pallet scanning, high-shelf picking). Validate your scanning distance requirements in pre-deployment pilot.
- WiFi coverage below -70 dBm causes RF retransmission and significant battery drain. Conduct site survey before rollout; budget for additional APs if warehouse coverage is patchy. This is true of all mobile devices, but the impact is more visible on smaller-battery units than on tablet-class devices.
- The 4.3-inch screen is intentional—it keeps the device weight low (526g) and grip comfortable for trigger-based barcode scanning. If your workflow requires reading small text or multi-line data entry, prototype with end-users before large-scale purchase. Some teams add 5-7 inch tablets as secondary devices for data lookup; the XG4 is picker-primary, not data-entry-primary.
- Battery life on heavy LTE (if cellular SKU) is 5-6 hours; WiFi-only is 8-10 hours. Cellular devices draw 20-30% more power due to radio duty cycle. WiFi-only deployment is the default unless you have documented GPS/remote-site requirements.
- The gun keypad (31/42/52-key options) is configurable but order-locked. 31-key numeric is the default and sufficient for most WMS picking (item scan + quantity entry). 52-key alpha allows manual SKU lookup if barcode fails; budget extra if your WMS requires operator free-text search.
- USB Type-C OTG supports external barcode scanner tethering, but the integrated imager makes this a fallback scenario only. If you're tethering external scanners, reconsider whether XG4 is the right platform—you may need a tablet-class device with larger screen and lower scanner dependency.
The XG4-YNKGRMNC01 is the right device for warehouse picking, receiving, and field inventory where durability, integrated scanning, and full-shift battery matter more than screen real estate or data-entry speed. It's the workhorse tool, not the Swiss Army knife. For teams running large deployments (50+ units), the integrated imager and field-swappable battery model reduce support burden measurably. Explore the Janam catalog for cellular variants (LTE FDD/TDD bands) and docking/charging accessories.
