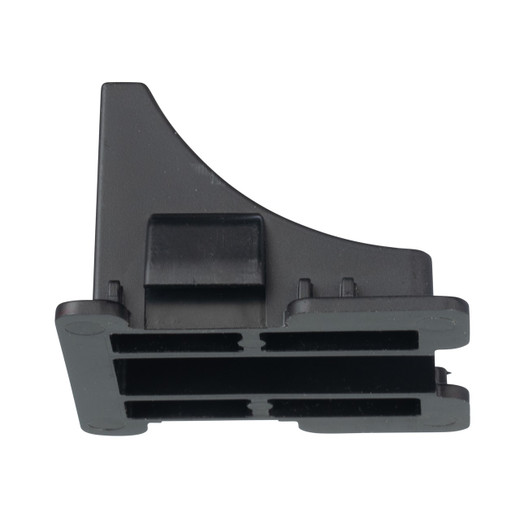

Panduit RTCM3EBL-L350 Range-Taking Cable Tie Mount

Panduit RTCM3EBL-L350 Range-Taking Cable Tie Mount

The Panduit RTCM3EBL-L350 is a range-taking clamp mount engineered for commercial installations requiring secure cable bundling on variable-diameter pipes, conduit, or structural members. Featuring a 3" molded cradle that accommodates bundle diameters from 1" to 5", this nylon 6.6 mount delivers the flexibility installers need in telecom closets, security rack build-outs, and industrial cable-management applications where fixed-diameter mounts force workarounds. Sold in 50-piece packages, it pairs with separately purchased Panduit edge-mount brackets (RTCBES10-TL for flat surfaces, RTCBE90S10-C for 90° corners) and works across Panduit's full cable-tie line—from standard cross-section through extra-heavy-duty and wide-strap PLWS ties.

Key Features

• Range-taking design supports 1" to 5" bundle diameters with a single SKU—eliminates stocking multiple fixed-size mounts
• Nylon 6.6 construction resists UV degradation, vibration, and temperature swings in plenum and outdoor-rated pathways
• Requires Panduit RTCBES10-TL (flat-mount bracket) or RTCBE90S10-C (corner bracket) for secure attachment—sold separately
• Compatible with Panduit standard, light-heavy, heavy, extra-heavy cross-section ties and PLWS wide-strap ties
• 1.92" overall length keeps the mount profile low in congested rack and overhead-tray environments
• Black finish blends with structured cabling and reduces visual clutter in customer-facing spaces
• Packaged 50 per bag, 500 per carton for high-volume data-center and campus deployments

Installers working mixed-infrastructure builds—where Cat6A trunk bundles, fiber strands, and low-voltage security cable share the same overhead ladder rack or vertical cable manager—face constant diameter changes as bundles split toward access switches and endpoint devices. Fixed-diameter mounts force either over-tightening small bundles (crush risk on fiber) or under-securing large bundles (sag and strain). The RTCM3EBL-L350's range-taking cradle solves this by flexing across a 4" span: the same mount that secures a 1.5" patch-cable bundle near a camera also handles the 4" trunk feeding a 48-port PoE switch. Paired with Panduit's PLWS wide-strap ties (which distribute pressure across 0.75" width instead of traditional 0.19" cross-section), this mount meets the low-stress bundling requirements in TIA-568 and BICSI installation standards, protecting Category-rated performance on high-pair-count copper and preventing microbend attenuation on OM3/OM4 fiber.

The two-piece architecture—mount body plus separate edge bracket—gives integrators mounting-surface flexibility that molded-in screw tabs can't match. The RTCBES10-TL flat bracket mounts to any planar surface (plywood backboard, steel rack rail, wireway lip) with two #10 screws on 1" centers; the RTCBE90S10-C corner bracket clamps onto 90° angles (ladder-rack side rails, equipment-rack verticals, cable-tray edges) with the same screw pattern but a formed tab that wraps the edge. Both brackets snap into the mount's rear slot without tools, and the mount rotates 360° on the bracket for optimal cable-exit orientation. This modularity is critical in retrofit work: you can populate brackets onto existing infrastructure during off-hours, then snap mounts and dress cables during a maintenance window without drilling or reconfiguring the racking. In seismic-rated installations (California healthcare, West Coast data centers), pairing these mounts with Panduit's releasable ties allows inspectors to verify bundle security without cutting ties—critical for maintaining NEC Article 770/800 compliance and avoiding re-inspection delays.

For integrators managing large security or AV deployments where horizontal and vertical cable management directly impacts system uptime and troubleshooting speed, the RTCM3EBL-L350's range-taking capability reduces SKU sprawl, simplifies field-stock logistics, and ensures consistent cable support across varying bundle sizes. The nylon 6.6 formulation is UL-recognized for plenum-rated pathways and maintains tensile strength across -40°F to 185°F operating ranges, making it suitable for both climate-controlled data centers and unconditioned telecom enclosures in parking structures or rooftop equipment shelters.
