Vertiv VP5UV0A1 Switched Rack PDU with Residual Current Metering Type B, 22kW

Overview

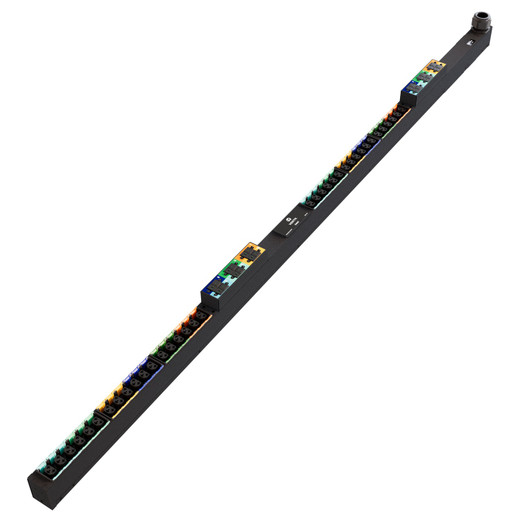

The Vertiv VP5UV0A1 is a vertically-mounted, switched rack PDU delivering up to 22,000W of managed AC power across 24 outlets in a single 1U-depth enclosure — engineered for data centers and high-density server environments where per-outlet switching, unit-level power metering, and ground-fault detection are non-negotiable. The VP5UV0A1 combines Residual Current Metering (RCM) Type B detection with a local LCD display and a full enterprise network stack, making it a practical fit for compliance-driven facilities and colocation deployments. Browse the full Vertiv power infrastructure catalog to compare related PDU families and accessories.

Key Features

• 22kW Maximum Power Capacity: At 22,000W and up to 16A maximum current draw, this unit handles high-density compute loads — multiple 1U/2U servers, GPU nodes, or blade chassis — without needing a second PDU to fill the remainder of a rack. That directly reduces cabling complexity and rack U-count overhead in rack PDU deployments.
• 24 Switched Outlets (C13 + C19 Mix): The 24-outlet complement includes both C13 and C19 coupler types, so you can service standard 1U servers on C13 and power-hungry UPS bypass or high-draw compute nodes on C19 from the same PDU. Per-outlet switching means you can remotely power-cycle a locked device without touching the rack — the value is in reducing truck rolls to remote or caged facilities.
• Residual Current Metering Type B: RCM Type B detects both AC and DC residual fault currents — critical in environments running variable-frequency drives, UPS systems with active PFC, or mixed AC/DC IT loads where Type A RCM would miss DC-component faults. This is a compliance differentiator in markets requiring IEC 62020 or local ground-fault protection standards; verify your local code requirements before substituting a non-RCM unit.
• Unit-Level Power Monitoring: Real-time unit-level metering gives you aggregate power consumption data at the PDU level. Feed this via SNMP v1/v2c/v3 into your DCIM or BMS platform for capacity planning and billing chargeback in shared infrastructure environments. Without per-outlet metering at the outlet level, this is best suited for racks where you care about total rack draw rather than per-device granularity.
• LCD Local Display: The integrated LCD panel lets on-site technicians read current load and status without opening a management console — useful during commissioning, troubleshooting, or in air-gapped environments where network access to the management port is restricted.
• Dual RJ-45 Ethernet Ports: Two Ethernet LAN ports support daisy-chain or redundant management network topologies. In large deployments where PDUs are networked in a chain, dual ports reduce the number of dedicated switch ports needed and simplify cabling runs to the top-of-rack switch.
• Comprehensive Protocol Stack: Native support for SNMP v1/v2c/v3, Modbus TCP, LDAP, RADIUS, TACACS+, SSH, HTTPS, and IPv6 means the VP5UV0A1 integrates into virtually any enterprise management, authentication, or monitoring framework without protocol translation middleware. SNMP v3 provides encrypted, authenticated traps — important for facilities with security audit requirements.
• Serial and USB Management Ports: One serial port and one USB port provide out-of-band management access. Serial console is the fallback when network connectivity fails — a practical necessity when managing remote colocation assets through a crash cart or console server.
• 50–60Hz Input Frequency: Dual-frequency compatibility means the same SKU works on both North American 60Hz and international 50Hz grid infrastructure, reducing procurement complexity for multinational facilities teams managing standardized rack configurations across regions.
• Vertical Mounting Form Factor: At 1683mm depth and 51mm wide, this PDU mounts vertically inside a standard equipment rack — occupying zero horizontal U-space. The black finish blends with standard rack enclosures. Confirm rack rail compatibility with your specific cabinet model before ordering; vertical PDU mounting bracket options vary by cabinet manufacturer.

Integration and Compatibility

The VP5UV0A1 supports a broad set of managed PDU protocols including SNMP v1/v2c/v3 for integration with leading DCIM platforms, Modbus TCP for building management systems, and LDAP/RADIUS/TACACS+ for centralized authentication. IPv4 and IPv6 dual-stack support ensures forward compatibility with modernized data center network architectures. Syslog output enables event forwarding to SIEM platforms for audit trail compliance. The Modbus TCP capability is particularly relevant for facilities that already use industrial BMS or SCADA systems to aggregate environmental and power data — the PDU can feed into those systems without a separate protocol gateway. For comprehensive rack power planning, pair this PDU with a compatible UPS infrastructure sized to the 22kW load capacity.

Frequently Asked Questions

Q: What outlet types does the VP5UV0A1 provide, and how many of each?

A: The VP5UV0A1 provides 24 AC outlets in a mix of C13 and C19 coupler types. The exact per-type count is not specified in available evidence — confirm with the Vertiv datasheet or your pre-sales contact for the specific C13/C19 split before designing your cable plant.

Q: What is Residual Current Metering Type B, and why does it matter for data centers?

A: RCM Type B detects both AC and DC components of residual (ground-fault) current. Standard Type A only detects AC fault currents. Data centers running UPS systems with active power factor correction, variable-frequency drives, or mixed AC/DC IT loads can generate DC-component leakage currents that Type A misses entirely. Type B provides more comprehensive protection and is required in certain regulatory environments.

Q: What network management protocols does the VP5UV0A1 support?

A: Supported protocols include SNMP v1/v2c/v3, Modbus TCP, HTTP, HTTPS, SSH, LDAP, RADIUS, TACACS+, DHCP, NTP, RSTP, SMTP, Syslog, and both IPv4 and IPv6. This covers integration with DCIM platforms, SCADA/BMS systems, centralized authentication directories, and security event logging infrastructure.

Q: Can the VP5UV0A1 be monitored remotely without physical access to the rack?

A: Yes. The dual RJ-45 Ethernet ports connect the PDU to your management network, and SNMP v3 or HTTPS-based management provides secure remote access to power data and outlet switching controls. The serial port provides an out-of-band console fallback when network access is unavailable.

Q: How is the VP5UV0A1 mounted in a rack?

A: The VP5UV0A1 is designed for vertical mounting inside a standard equipment rack. At 1683mm in length and 51mm wide, it installs along the vertical rail, consuming no horizontal rack units. Confirm mounting bracket compatibility with your specific rack cabinet model before installation.

Q: What is the maximum power rating, and is it sufficient for high-density compute?

A: The VP5UV0A1 is rated at 22,000W (22kW) with a maximum current of 16A. This supports high-density 1U/2U server configurations and GPU compute nodes. Verify your total connected load against the 16A circuit rating and apply appropriate derating (typically 80% continuous = 17.6A effective ceiling) per local electrical code.

Karl Wilson

The VP5UV0A1 is the unit I reach for when a client needs switched outlet control, ground-fault visibility, and enterprise authentication in a single vertical PDU — specifically because the RCM Type B detection closes the gap that trips up facilities running mixed AC/DC loads behind standard Type A protection. At 22kW and 24 outlets across C13 and C19 formats, this Vertiv unit handles a fully loaded high-density rack without forcing a second PDU into the column.

Technical Highlights:

• RCM Type B vs Type A: Type B catches DC-component residual fault currents that Type A misses — directly relevant if your rack includes UPS with active PFC or any mixed-mode power supplies. Don't substitute a Type A unit and assume equivalent protection.
• Dual RJ-45 Management Ports: Daisy-chaining PDUs via the dual Ethernet ports reduces top-of-rack switch port consumption in large deployments — one management VLAN, multiple PDUs, no individual switch drops per unit required.
• SNMP v3 + TACACS+/RADIUS: Encrypted SNMP traps and centralized AAA authentication mean this PDU fits inside an enterprise security framework without carve-outs — auditors reviewing access logs will see authenticated sessions, not shared local credentials.

Deployment Considerations:

• The 16A maximum current rating means your upstream circuit breaker should be sized at 20A minimum (80% derating rule) — confirm feed circuit capacity before installation, especially in older facilities where the panel may already be loaded.
• Unit-level metering reports aggregate PDU draw, not per-outlet consumption. If your billing or capacity model requires per-device metering, evaluate whether a metered-at-outlet variant in the Vertiv line better fits the use case before committing to this SKU.

The VP5UV0A1 is best positioned in colocation and enterprise data center environments where regulatory ground-fault requirements, remote outlet switching, and integration with DCIM or BMS platforms are all active requirements — particularly where the mixed C13/C19 outlet mix aligns with a heterogeneous server and storage rack configuration.
