Vertiv Rpdu Switched Outlet Level Monitoring EC 11.0KW Variable Power Configuration - VP7UU0A0

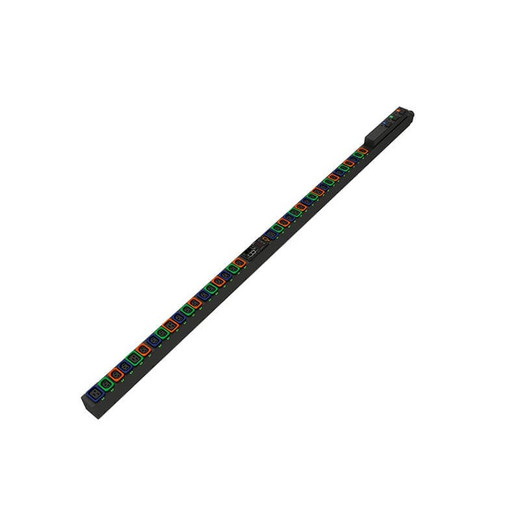

Vertiv VP7UU0A0 Switched Outlet-Level Monitoring Rack PDU

Overview

The Vertiv VP7UU0A0 is an 11kW vertical rack PDU designed for data centers and server rooms where outlet-level visibility and flexible international power configurations matter. Supporting input voltages from 208V to 415V across single- and three-phase circuits at 16A to 48A, it eliminates the need to stock multiple PDU variants for globally distributed or mixed-voltage facilities. The integrated Next Generation IMD display with a 128×128 LCD touchscreen gives on-unit status at a glance without requiring a laptop or remote session to assess load conditions.

The VP7UU0A0 ships as a rack power distribution unit in a vertical form factor — the right profile for zero-U deployment alongside 1U and 2U servers in a standard 42U or 45U cabinet. With 30 U-Lock C13 and 6 U-Lock C19 receptacles, it covers the overwhelming majority of enterprise server, storage, and networking loads without requiring adapters.

Key Features

• Universal 208V–415V Input: A single VP7UU0A0 covers North American 208V, European 230V, and high-density 415V three-phase environments. If you manage a global deployment or a colocation footprint with inconsistent facility feeds, this eliminates the SKU proliferation that comes with region-specific PDU procurement.
• 11kW / 16A–48A Power Capacity: At 11,000W rated capacity, the VP7UU0A0 handles a fully populated 1U server row without headroom concerns. The 16A–48A input range means it pairs correctly with L6-20, L6-30, IEC 60309, and comparable high-amperage facility breakers — check your input breaker rating before deploying at the high end.
• 30 U-Lock C13 + 6 U-Lock C19 Outlets: The U-Lock retention mechanism on every receptacle prevents accidental cable disconnection during hot-work or cable management operations — a real operational benefit in dense racks where a single stray pull can take down a production workload. The 6 C19 positions handle dual-corded servers, high-draw GPU nodes, and UPS bypass loads.
• Switched Outlet-Level Monitoring: Per-outlet switching means you can power-cycle individual devices remotely without touching the rack — critical for unattended edge sites or remote data centers where a hands-on reboot costs travel time. Outlet-level monitoring surfaces per-port load data so you can balance circuits before a breaker event, not after.
• Next Generation IMD with 128×128 LCD Touchscreen: The on-unit display with an internal orientation sensor auto-rotates to match physical installation orientation, so the readout stays upright whether the unit is mounted face-left or face-right. Touchscreen interaction removes the need to carry a USB console cable for local configuration.
• Secure Boot with Hardware-Based Trust Anchor: In environments with strict firmware integrity requirements — financial services, government, or co-lo operators subject to NIST SP 800-193 — the hardware root of trust prevents tampered firmware from loading. This is a firmware-level security control, not just a software policy.
• TAA-Compliant: Qualifies for federal, DoD, and GSA Schedule procurement without a TAA waiver. UL Listed and CE Listed certifications cover North American and European electrical safety requirements. RoHS compliance satisfies hazardous-materials restrictions for EU deployments.
• Redundant Power-Sharing Port: The built-in redundant power-sharing connectivity port supports high-availability configurations where a second PDU or power source provides failover — relevant for any deployment where a single-PDU failure cannot be tolerated.
• 50/60Hz Frequency Support: Operates across both 50Hz (Europe, Asia-Pacific) and 60Hz (North America) grid frequencies without hardware changes — consistent with the universal input voltage range for international deployments.
• 100% Factory-Tested: Every unit undergoes full functional testing before shipping, reducing the probability of silent commissioning failures in remote deployments where a DOA unit is costly to return and replace.

Integration & Compatibility

The VP7UU0A0 integrates with data center infrastructure management (DCIM) platforms and environmental monitoring systems via its outlet-level monitoring capabilities. The universal input voltage range makes it compatible with UPS systems and facility power infrastructure across single- and three-phase configurations. For facilities running Vertiv's broader power management ecosystem, the VP7UU0A0 fits within the Vertiv power distribution line alongside complementary Vertiv power solutions. The U-Lock C13 and C19 outlets are compatible with standard IEC locking power cords, which are widely available from major cable vendors.

For data center environments evaluating total power chain design — from UPS to PDU to server — consult a data center power planning guide to verify circuit loading, redundancy, and breaker coordination before finalizing PDU selection.

Frequently Asked Questions

Q: What input voltage and current configurations does the VP7UU0A0 support?

A: The VP7UU0A0 supports 208V to 415V input at 16A to 48A, covering both single-phase and three-phase configurations at 50Hz or 60Hz. The specific output voltage is defined by the facility-side cable (FSC) connected to the unit.

Q: Is the VP7UU0A0 TAA-compliant for federal procurement?

A: Yes. The VP7UU0A0 is TAA-compliant and also carries UL Listed, CE Listed, and RoHS certifications per the verified specification data.

Q: What is the warranty on the VP7UU0A0?

A: Vertiv provides a five-year limited warranty on the VP7UU0A0.

Q: How many outlets does the VP7UU0A0 provide, and what types?

A: The VP7UU0A0 has 36 total outlets: 30 U-Lock C13 receptacles and 6 U-Lock C19 receptacles. The U-Lock retention mechanism on every outlet prevents accidental cable disconnection.

Q: Does the VP7UU0A0 support remote outlet-level switching and monitoring?

A: Yes. The VP7UU0A0 supports switched outlet-level monitoring, enabling per-outlet power control and load visibility. This allows remote power cycling of individual devices without physical rack access.

Q: What display does the VP7UU0A0 include, and can it be used without a remote management session?

A: The VP7UU0A0 includes a Next Generation IMD with a 128×128 LCD touchscreen and an internal orientation sensor that auto-rotates the display based on physical installation orientation. Local configuration and status monitoring can be performed directly on the unit without a connected laptop or remote session.

Marty Allison

The VP7UU0A0's 208V–415V universal input range is what I keep coming back to when specifying this unit for multi-site or international deployments. Most PDUs force you to pick a voltage class at procurement — this one doesn't, which matters when you're standardizing a BOM across North American 208V distribution and European 230V/400V three-phase cabinets simultaneously.

Technical Highlights:

• U-Lock Retention on All 36 Outlets: Both C13 and C19 positions use U-Lock locking connectors, not standard IEC snap-fit. In active co-location environments or high-density rows where cable management is tight, this is the difference between a managed maintenance window and an unplanned outage from a cord pull.
• Secure Boot with Hardware Trust Anchor: This is a meaningful differentiator from commodity PDUs. A hardware-based root of trust means firmware tampering is blocked at the silicon level, not just flagged by software policy — relevant for any operator subject to NIST 800-193 platform firmware resiliency requirements.
• 128×128 LCD with Orientation Sensor: The auto-rotate display eliminates a common installation gotcha on vertical zero-U PDUs — mounting orientation varies by cabinet and aisle design, and a fixed-orientation display ends up upside-down half the time. The internal sensor handles this automatically without a configuration step.

Deployment Considerations:

• The output voltage is defined by the facility-side cable, not the PDU — confirm your FSC spec and input breaker ampacity (16A–48A range) before ordering. A mismatch at the facility breaker is the most common commissioning error on universal-input PDUs.
• At 27 lbs and a 2-inch width profile, this is a zero-U vertical mount. Verify your cabinet has zero-U PDU mounting provisions on the left or right rail before finalizing your rack BOM — not all cabinets ship with zero-U brackets installed.

The VP7UU0A0 is the right specification for federal data centers and co-location operators managing mixed international cabinet deployments who need TAA compliance, outlet-level switching, and firmware integrity controls in a single vertical PDU — not a general-purpose PDU for single-site domestic shops where a simpler monitored unit would suffice.
