Vertiv Rpdu Monitored Unit Level EC 30A 120/208V WYE 8.6KW Vertical (24) NEMA 5-2 - VP4N30A8

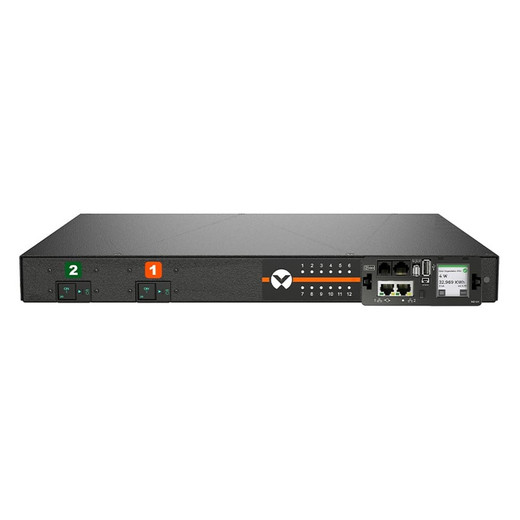

Vertiv VP4N30A8 Monitored Rack PDU

Overview

The Vertiv VP4N30A8 is a 30A, 120/208V WYE vertical rack PDU designed for data center and IT environments requiring reliable power distribution and monitoring. It provides a total of 8.6KW capacity, distributing power to IT equipment through a variety of outlet types. This unit is essential for managing power loads and ensuring uptime for critical infrastructure.

Compatibility

This rack PDU is designed for standard 19-inch server racks and cabinets. It is compatible with IT equipment requiring 120V or 208V power inputs. The outlet configuration supports a mix of standard C13 and C19 power cords, along with two NEMA 5-20R outlets for higher amperage devices. It is suitable for use with most major server brands including Dell, HP, and Cisco, as well as network switches and storage arrays.

Installation Notes

The VP4N30A8 is a vertical PDU, intended for mounting in a 0U (zero-unit) space within a rack. It requires a 120/208V WYE power source connection via its 30A input plug. Ensure the circuit breaker feeding the PDU is rated appropriately for the 30A load. The unit is RoHS, UL & c-UL Listed for safety compliance in IT environments.

What's in the Box

• 1x Vertiv VP4N30A8 Monitored Rack PDU
• 1x Power Cord Retainer Clip
• 1x Mounting Bracket Kit
