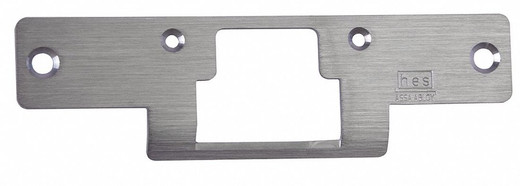

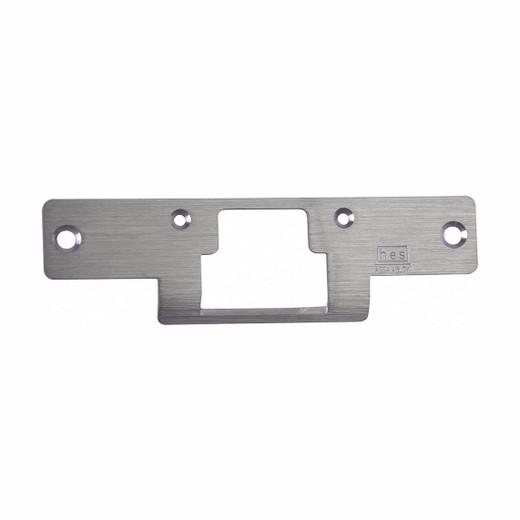

HES RP-45 Radius Faceplate
The HES RP-45 is a precision-engineered mounting faceplate designed to integrate electric strike mechanisms into standard door frames for access control installations. This is a mechanical component—not a camera or controller—but it is critical to proper strike alignment, durability, and long-term reliability in high-traffic security environments where repeated door cycles and vibration can loosen inferior hardware.
Key Features
- Radius Design: The curved profile matches standard door frame geometry, eliminating gaps between the faceplate and frame edge. This reduces water and debris intrusion and improves the aesthetic fit—important in corporate or healthcare settings where visible security hardware affects occupant perception.
- HES Electric Strike Compatibility: The RP-45 is engineered specifically for HES strike mechanisms. Mismatched faceplates cause binding, uneven load distribution, and premature wear. Using the correct faceplate ensures the strike bolt seats fully and releases cleanly—critical for fail-safe and fail-secure operation.
- Durable Construction for High-Traffic Cycles: Built to withstand thousands of open/close cycles without fastener creep or frame shift. In a busy office building or hospital, a single door may operate 500+ times daily; cheap or improperly fitted hardware fails within months.
- Professional-Grade Mounting Hardware Included: Comes with fasteners engineered for the specific substrate (wood or metal frame). Undersized or corrosion-prone bolts are a leading cause of strike failure; this kit eliminates guesswork.
- Retrofit and New Installation Ready: Designed to work in both new-construction framing and retrofit scenarios. Standard door preparation specifications apply—consult the installation guide for exact cutout and fastener requirements.
- Institutional and Commercial Duty Rating: Suitable for data centers, server rooms, secure storage, vaults, government facilities, educational buildings, and healthcare access points—any environment where access control reliability is non-negotiable.
Integration & Compatibility
The RP-45 must be paired with an HES electric strike and a compatible access control system. Verify strike model compatibility before ordering; HES manufactures strikes for single-gang and double-gang frames, as well as mortise and surface-mounted variants. The faceplate positioning affects latch alignment—improper installation can cause the bolt to miss the keeper or bind during release. Follow the manufacturer's installation documentation precisely, or engage a certified installer. Download the full technical datasheet for cutout dimensions, fastener specifications, and frame type compatibility.
What's in the Box
Exact package contents are not specified in the available evidence. Contact the manufacturer or your distributor for a complete parts list before installation to confirm fastener counts and specifications.
Frequently Asked Questions
Q: Can I use the RP-45 with non-HES electric strikes?
A: No. The RP-45 is engineered specifically for HES mechanisms. Using it with incompatible strikes risks misalignment, binding, and failure. Always confirm strike model compatibility with the manufacturer before installation.
Q: What's the difference between the RP-45 and other HES faceplates?
A: HES manufactures multiple faceplate designs (radius, keeper, etc.) for different door frame types and strike models. The RP-45 is the radius variant, suitable for standard curved door frame edges. Consult the HES product selector or installation guide to confirm the correct model for your strike and frame configuration.
Q: Can I install the RP-45 myself, or do I need a professional?
A: Installation requires precise alignment, proper substrate preparation, and correct fastener torque. Improper installation is a leading cause of strike failure. Qualified installers or integrators should handle the work. If installing yourself, follow all manufacturer documentation and test the strike operation thoroughly before handing off to the end user.
Q: Is the RP-45 suitable for outdoor doors?
A: The faceplate itself is not rated for direct weather exposure (rain, UV, freezing cycles). For exterior-facing doors, use HES exterior-duty strikes and faceplates. If the RP-45 is used outdoors, provide a weather hood or vestibule to protect the hardware from standing water and UV degradation.
Q: What substrate materials does the RP-45 support?
A: The RP-45 is designed for both wood and metal frames. The included hardware kit should specify fastener type and length for each substrate. Verify fastener compatibility with your frame material before installation to avoid pull-through or rust.
Q: How often should I inspect or replace the RP-45?
A: Routine inspection (quarterly in high-traffic areas) is recommended. Check for fastener looseness, corrosion, and visible cracks. The faceplate itself does not wear out, but fasteners can corrode or loosen under repeated cycles. Tighten or replace fasteners as needed. Replace the entire faceplate if structural damage (cracking, deformation) is visible.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The RP-45 is a deceptively simple-looking component that absorbs enormous stress in access control deployments. I mention it here because faceplate selection is routinely overlooked—integrators focus on strike voltage and control logic, then cut corners on the mechanical fit. The RP-45 radius design handles standard North American door frame geometry; that curve matters because it prevents the faceplate from rocking or flexing under strike force.
Technical Highlights:
- Radius Profile Geometry: Matches the curved edge of standard door frames, eliminating edge-to-faceplate gaps. This reduces vibration transmission to the frame and improves longevity of fasteners under thousands of door cycles.
- HES Strike Coupling: The RP-45 is dimensioned to align the strike latch bolt with the keeper socket. Misalignment of 1/16 inch or more causes the bolt to miss the keeper or bind during retraction—a silent failure mode that users won't notice until the strike jams or stops retracting cleanly.
- Fastener Kit Inclusion: Supplied hardware is matched to the faceplate substrate interface. Using random bolts from a drawer is a leading cause of fastener creep and strike failure in high-traffic installations.
Deployment Considerations:
- Installation Precision Mandatory: The RP-45 positioning directly affects strike operation. Improper fastener torque, substrate damage, or misalignment during installation will cause the strike to fail within weeks. This is not a DIY retrofit unless you have strike installation experience and a torque wrench.
- Material Compatibility Watch: Confirm that the supplied fasteners match your frame material (wood vs. steel). Stainless fasteners in steel frames, or undersized bolts in hard wood, cause creep and corrosion. Verify fastener spec against your installation site before ordering.
- Outdoor Exposure Limitation: The RP-45 is not weather-sealed. If your door faces direct rain or UV, specify HES exterior hardware instead. Using the RP-45 in an unprotected exterior location will corrode fasteners within a year, leading to strike failure.
The RP-45 is your correct choice for interior access control retrofits and new construction where standard frame geometry applies. For non-standard frames, exterior doors, or specialized strike types, confirm model compatibility with HES before design. Engage a certified installer if you have any doubt about substrate preparation or alignment.
