Panduit PK18-6R-C Concise Descriptor

Overview

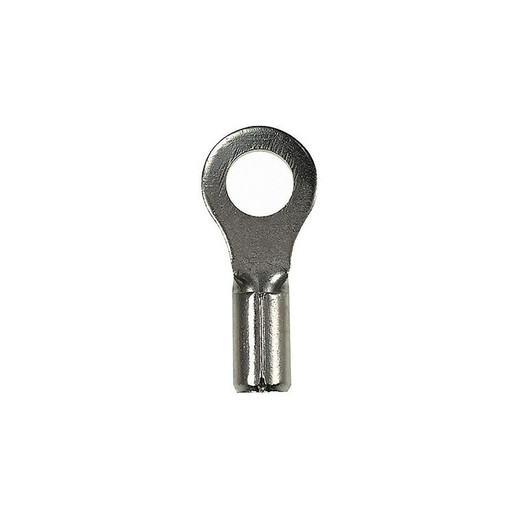

The Panduit PK18-6R-C is a high-performance ring terminal designed for secure electrical connections in demanding industrial and commercial applications. Its Kynar insulation provides excellent resistance to chemicals and extreme temperatures, making it suitable for environments where standard terminals might fail. This specific terminal accommodates 18-22 AWG wire and is designed for a #6 stud size, ensuring a solid, reliable connection for critical wiring, such as in surveillance system power distribution or network equipment grounding. The PK18-6R-C model is engineered for durability and ease of installation.

Compatibility

This ring terminal is designed for use with 18-22 AWG stranded or solid copper wire. It is intended for termination onto #6 stud size electrical connections. It is compatible with standard crimping tools designed for this wire gauge and terminal size, ensuring broad applicability across various installation scenarios. While not specific to any single brand of surveillance equipment, it is a fundamental component for ensuring stable power and ground connections for IP cameras, NVRs, and network switches that utilize #6 stud terminals.

Installation Notes

For optimal performance and safety, use a Panduit-approved crimping tool (e.g., CT-900, CT-920, CT-930) or equivalent tool that meets the specified crimp parameters for 18-22 AWG wire and #6 stud terminals. Ensure the wire is stripped to the correct length (typically 1/4 inch) before insertion. The Kynar insulation should not be overheated during the crimping process. Torque the terminal onto the #6 stud to the manufacturer's recommended specification, typically between 10-15 in-lbs, to prevent damage to the stud or terminal and ensure a secure electrical path.
