Zebra 10026763 RFID Label Synthetic 1.7656x0.5156in (45x13mm); TT RFID Polyester with Foam Coated High Performance Acrylic Adhesive 3in (76.2mm) core 600/roll 1/box Plain ETSI

Overview

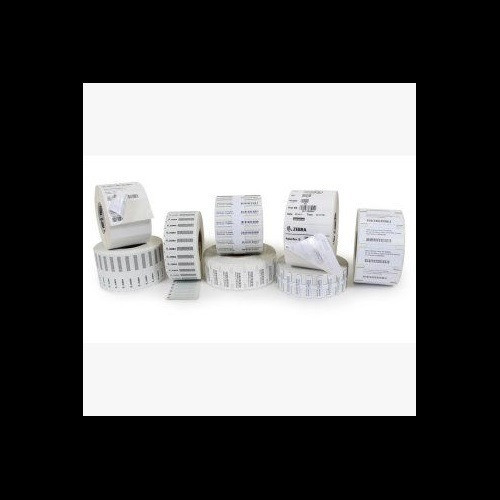

The Zebra 10026763 is a thermal transfer RFID label designed for industrial printing applications. It features a synthetic TT polyester face stock with a foam-coated, high-performance acrylic adhesive, ensuring durability and reliable adhesion on challenging surfaces. The label's dimensions are 1.7656 inches by 0.5156 inches (45mm x 13mm), suitable for marking small items or providing concise identification. This label is engineered for environments where robust tracking and identification are critical, such as warehouse automation or asset management, and is compatible with ETSI RFID standards.

Compatibility

This RFID label is designed for use with Zebra's industrial RFID printers, including but not limited to the ZT400 Series RFID, ZT600 Series RFID, and the R110PAX4 print engine. It requires a 3-inch (76.2mm) core size, common in industrial label roll formats. The label's construction is optimized for thermal transfer printing and RFID encoding, ensuring compatibility with standard RFID readers and systems adhering to ETSI specifications.

Installation Notes

For optimal performance, apply the Zebra 10026763 labels to clean, dry surfaces free from dust and oils. The high-performance acrylic adhesive requires a moderate application temperature, typically above 50°F (10°C), and achieves full adhesion after a short curing period. The label's operating temperature range is -40°C to 70°C (-40°F to 158°F), and its storage temperature should be between 0°C and 40°C (32°F and 104°F) to maintain adhesive integrity. Ensure the label is properly loaded onto the 3-inch core spindle of your compatible industrial printer.
