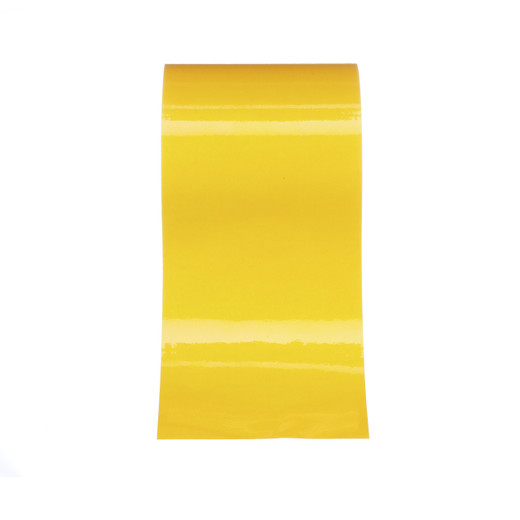

Panduit T400X000RXT Continuous Polyester Tape Label

The Panduit T400X000RXT delivers 50 feet of 4"-wide continuous polyester labeling for high-volume cable plant documentation, equipment rack identification, and outdoor-rated wire marking in commercial security, datacenter, and industrial installations. Engineered for thermal-transfer printing on Panduit TDP-series printers, this yellow polyester tape resists UV fade, solvent exposure, and abrasion across -40°F to +302°F operating ranges, meeting UL969 and cUL C22.2 performance standards for permanent identification in NEC and CEC-compliant systems. The 4" width accommodates multi-line text, barcodes, and large-format panel legends without splitting across multiple labels, reducing install time on trunk routes, service-loop tags, and conduit schedules where readability under poor lighting is critical.

Key Features

• 50-foot continuous polyester tape, 4" width — uninterrupted labeling for long cable runs and high-density rack schedules without cartridge changes
• UL969 and cUL C22.2 listed — meets flame-resistance and adhesion permanence requirements for electrical equipment labeling per NEC 110.21 and CEC 10-508
• -40°F to +302°F thermal tolerance — outdoor-rated for rooftop junction boxes, parking-structure camera mounts, and freeze-rated telecom vaults
• Solvent and abrasion resistant polyester face stock — survives cable-lube contact, mechanical pulling, and high-traffic conduit environments without print degradation
• Aggressive acrylic adhesive — bonds permanently to PVC, LSZH, and plenum-rated cable jackets plus powder-coat steel, anodized aluminum, and textured ABS enclosures
• Thermal-transfer compatible — designed for Panduit TDP43ME, TDP46H, and LS8E printer platforms with ribbon-based durable printing (not direct-thermal fade-prone output)
• RoHS compliant construction — safe for integration into EU and California-regulated installations without hazardous-material documentation burden

Polyester label stock is the durability standard for permanent identification in mission-critical infrastructure. Unlike paper or vinyl alternatives that crack under temperature cycling or UV exposure, polyester maintains dimensional stability and print legibility through 10+ year service lives in uncontrolled environments. The T400X000RXT uses a 2-mil polyester face laminated to aggressive acrylic adhesive that cures over 24 hours to create a molecular bond with cable jackets and metal surfaces — once applied, labels resist peeling even when subjected to accidental solvent spray during cleaning, conduit-pulling friction, or the thermal expansion cycles common in outdoor POE camera runs and rooftop fiber vaults. UL969 flame-resistance testing confirms the material self-extinguishes and does not propagate fire, a key requirement when labeling equipment inside electrical panels or adjacent to Class 2 power-limited circuits per NEC Article 725. The cUL C22.2 listing extends this compliance into Canadian jurisdictions, eliminating the need for site-specific AHJ label approvals on cross-border projects. Yellow base color provides high-contrast backgrounds for black thermal-transfer ribbons, ensuring barcode scanner readability and visual identification in low-light mechanical rooms or ceiling-space installations where white labels blend into cable bundle chaos.

The 4" width opens deployment scenarios that 1" and 2" tapes cannot address. Datacenter integrators use T400X000RXT for server-rail asset tags that combine hostname, IP address, serial number, VLAN assignment, and 2D barcode in a single label, eliminating the multi-label stacking that creates peel-prone edges and cluttered visual fields. Campus security installations leverage the width for main trunk cable schedules — marking 25-pair Cat6 bundles with originating IDF, destination room, circuit ID, and fiber-pair counts across three readable lines without font-size compromise. Parking-structure camera runs benefit from the UV-stable yellow polyester for conduit identification at junction-box hand-holes, where sun exposure would fade direct-thermal or inkjet-printed labels within 18 months. Industrial environments apply oversized legends to motor-control-center feeders, fire-alarm NAC circuits, and hazardous-location junction boxes where OSHA 1910.145 and NFPA 70E arc-flash labeling standards demand durable, high-visibility identification. The 50-foot continuous format eliminates the waste and workflow disruption of pre-cut label sheets — print exactly the length needed for each application, from 2" breaker-position tags to 18" cable-bundle wraps, without inventory complexity or scrap from unused pre-sized labels.

Thermal-transfer print compatibility is the differentiator between temporary labeling and permanent documentation. The T400X000RXT requires resin-based thermal ribbons (Panduit R4300 or R6200 series) that fuse pigment into the polyester surface under heat and pressure, creating print that cannot be rubbed off, smeared by accidental water contact, or faded by UV exposure. This contrasts with direct-thermal label stock that darkens via heat-sensitive coatings — functional for short-term shipping labels but unsuitable for infrastructure that must remain readable through multi-year service intervals and outdoor temperature extremes. Integration with Panduit TDP-series printers ensures ribbon-width compatibility, proper heat-curve calibration, and driver support for barcode symbologies (Code 39, Code 128, DataMatrix, QR) commonly required in asset-management systems and CMMS platforms. The 4-roll carton quantity provides volume purchasing for large projects while maintaining individual rolls as inventory-controlled consumables, letting you issue one roll per crew without over-allocating supplies or creating shortages mid-install. RoHS compliance closes the regulatory loop for federal, healthcare, and California Title 20 projects where material declarations are part of commissioning documentation, and the UL listing provides the third-party certification that insurance underwriters and AHJs expect when inspecting labeled electrical equipment in commercial occupancies.
