Panduit T400X000RPT Reflective Continuous Identification Tape
Overview

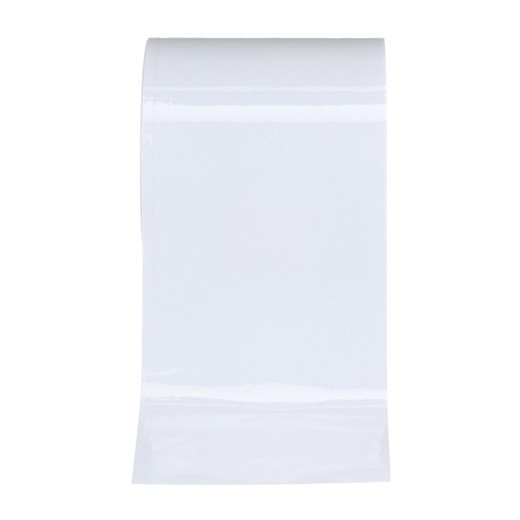

The Panduit T400X000RPT is a 4.00-inch-wide reflective continuous polyester tape designed for thermal transfer printing on compatible Panduit label printers. Each roll delivers 50 feet (15.24 m) of printable surface — enough for a full facility labeling run without mid-job changeovers. If you're running safety lanes, hazard boundaries, or high-visibility equipment identification in warehouses, manufacturing floors, or electrical rooms, this tape is purpose-built for legibility under low-light or long-distance viewing conditions where standard matte labels fall short.
The T400X000RPT is listed on the Panduit identification and labeling catalog and fits squarely within the signs, labels, and identification product line — a category that demands compliance-grade materials, not generic office supply tape.
Key Features
- 4.00-inch (101.6 mm) width: Wide enough to carry bold text, hazard striping, or barcode plus human-readable text in a single printed pass. Narrower tapes force abbreviated legends or multi-row printing that loses visibility at distance — this width avoids that compromise on floor markings and equipment panels.
- 50-foot (15.24 m) continuous roll: A single roll covers roughly 150 individual 4-inch labels at standard lengths, or an uninterrupted 50-foot floor or equipment run. Buying by the roll rather than pre-cut sheets gives you flexibility to cut to exact length in the field — zero waste on odd-dimension jobs.
- Reflective polyester substrate: The reflective surface returns light to the source, making printed legends visible under flashlight or forklift headlights in dim aisles. Polyester also resists tearing and holds its shape under the mechanical stress of high-volume printer feeding — polypropylene alternatives can jam or stretch in the same duty cycle.
- Thermal transfer print process: Designed for use with the Panduit TDP43MY thermal transfer desktop printer. Thermal transfer lays a resin or wax-resin ribbon image into the substrate rather than onto it — the result resists smearing from cleaning chemicals, moisture, and abrasion that would destroy direct-thermal output within weeks in an industrial environment.
- UL 969 and cUL C22.2 listed: These standards govern marking and labeling materials for electrical equipment — specifically adhesion, legibility retention, and resistance to environment. If your facility or jurisdiction requires listed labels on electrical panels, enclosures, or safety equipment, these listings keep you compliant without a separate material qualification process. Meeting both UL and cUL (Canadian equivalent) covers cross-border deployments from a single SKU.
- RoHS-compliant: The substrate and adhesive formulation meet European Union Restriction of Hazardous Substances requirements. For operations that ship equipment to the EU or work under WEEE/RoHS supply chain mandates, using compliant labeling materials from the start avoids a documentation gap during product certification audits.
- Carton quantity of 4 rolls: Stocking four rolls per carton supports small project buys without the shelf space commitment of a large case quantity. For ongoing programs, order multiple cartons to lock in consistent label quality across production runs — batch-to-batch variation in materials is a real issue with off-brand tape that affects print quality and adhesion.
Integration & Compatibility
The T400X000RPT is verified compatible with the Panduit TDP43MY thermal transfer desktop printer. If you're sourcing this tape, confirm that your printer is loaded with the correct ribbon type (wax-resin or resin recommended for polyester substrates). Running a wax-only ribbon on a polyester tape produces output that scratches off under light abrasion — defeating the durability that makes this material worth the cost premium over paper.
For broader thermal transfer label printer selection or if you're specifying a printer alongside this media, review the Panduit TDP43MY compatibility list before committing to a media format. Continuous tape like the T400X000RPT requires a cutter accessory or manual trimming — it does not feed through die-cut label sensors the same way pre-cut stock does.
Planning a full identification program? Pair this tape with a Panduit printer and media selection guide to confirm ribbon, tape, and printer combinations that meet your environment's temperature and chemical exposure requirements. For related cable management and identification accessories, Panduit's catalog covers complementary products that integrate with the same printer platform.
What's in the Box
- 1x Panduit T400X000RPT reflective continuous polyester tape roll, 4.00 in x 50 ft
Frequently Asked Questions
Q: What printer is the T400X000RPT compatible with?
A: The T400X000RPT is listed for use with the Panduit TDP43MY thermal transfer desktop printer. Confirm ribbon compatibility (wax-resin or resin) for polyester substrates before printing.
Q: What does the UL969 listing mean for the T400X000RPT?
A: UL 969 is the standard for marking and labeling materials used on electrical equipment — it covers adhesion strength, legibility under environmental stress, and material resistance. The T400X000RPT also carries the cUL C22.2 listing for Canadian jurisdictions, making it suitable for labeled electrical panels and enclosures in both US and Canadian facilities.
Q: Is the T400X000RPT RoHS compliant?
A: Yes. The T400X000RPT is listed as RoHS-compliant, meeting EU Restriction of Hazardous Substances requirements — relevant if you label equipment destined for European markets or operate under WEEE/RoHS supply chain documentation requirements.
Q: How many labels can I get from one roll?
A: Each roll is 50 feet (15.24 m) of continuous tape at 4.00 inches wide. The number of labels depends entirely on the cut length you program — at a 4-inch cut length you'd get approximately 150 labels per roll; shorter cuts yield more, longer cuts fewer.
Q: Does the T400X000RPT come in multi-roll cartons?
A: Yes. The carton quantity is 4 rolls. You can purchase a single roll (package quantity of 1) or order by the carton for project or stock requirements.
Q: What ribbon type should I use with this tape?
A: Polyester substrates require a wax-resin or full-resin thermal transfer ribbon. Wax-only ribbons produce output that abrades off polyester surfaces — this defeats the durability advantage of using a reflective polyester tape in an industrial environment.
When I spec label media for industrial identification programs, the substrate and listing combination matter as much as the printer. The T400X000RPT stands out because it pairs a reflective polyester substrate with dual UL 969 and cUL C22.2 listings on a single 4.00-inch x 50-foot roll — that's the combination that satisfies NEC and CEC panel-labeling requirements without sourcing two separate materials for US and Canadian sites.
Technical Highlights:
- 4.00-inch (101.6 mm) width: Wide enough to carry a full equipment legend — asset number, circuit ID, hazard class, and barcode — in one printed label rather than stacking two narrow tapes. On a high-voltage switchgear panel, that single-pass label is the difference between a clean, auditable identification scheme and a layered mess that gets skipped during inspections.
- 50-foot continuous roll: At 15.24 m per roll and a carton of 4, you have 200 feet of media per carton order. For a mid-size electrical room with 50+ panels and enclosures, one carton typically covers the identification run plus a stock reserve — avoiding a mid-project reorder that delays commissioning.
- UL969 + cUL C22.2 + RoHS: Three compliance checkboxes in one SKU. UL 969 covers the physical durability and adhesion requirements inspectors look for; cUL C22.2 extends that to Canadian electrical code environments; RoHS covers the materials documentation chain for equipment exported to the EU. If your project spans all three jurisdictions, this tape qualifies without substitution.
Deployment Considerations:
- Continuous tape requires either a programmable cutter on the TDP43MY or manual trimming. If your labeling workflow uses die-cut stock, the sensor configuration on the printer needs to be switched to continuous mode — skipping this step causes label misregistration on the first print run.
- Reflective polyester is dimensionally stable but requires a wax-resin or full-resin ribbon. Specifying a wax-only ribbon to save cost will produce output that fails adhesion and legibility checks within months in a chemical or high-humidity environment — the UL 969 listing is only valid when the correct ribbon chemistry is used.
This tape is the right call for electrical room identification, safety lane marking, and equipment labeling on projects where UL-listed media is a contract or inspection requirement — particularly on multi-site deployments covering both US and Canadian facilities where a single compliant SKU eliminates the materials substitution risk.
