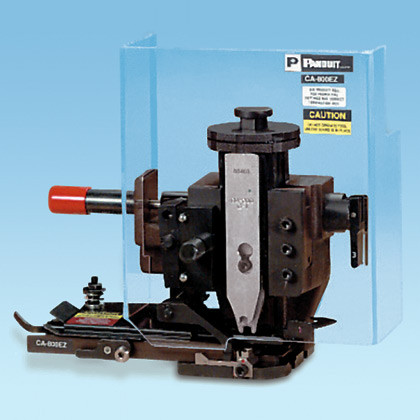

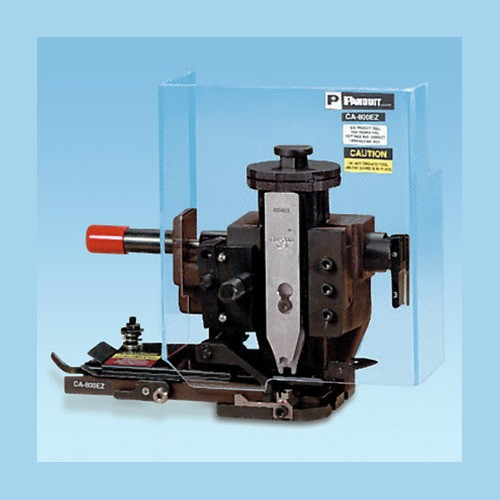

Panduit CA-800EZ Reel-Fed Terminal Applicator

The Panduit CA-800EZ is an electrohydraulic, reel-fed terminal applicator engineered for high-volume wire termination on AMP Model T- and K-style bench-mount presses. Carrying the Reel Smart™ designation, the CA-800EZ is built around a true quick-change architecture — no adapter plates, no loose hardware — so changeover between terminal reels takes seconds rather than minutes on a busy assembly line.

Overview

Wire harness shops and panel-wiring facilities running AMP T- or K-presses face a constant tension between throughput and changeover time. The CA-800EZ resolves that by sliding directly into the press frame without supplemental mounting plates, giving operators a clean, repeatable seat every time. It draws from the CD-800 series jaw insert library, which means terminal-type changes stay within a known, catalogued ecosystem rather than requiring sourced-from-scratch tooling.

At 10.25 in. wide × 9.25 in. tall × 4 in. deep, the CA-800EZ has a compact footprint that fits the standard press envelope without overhanging adjacent stations. Package quantity is 1 unit — this is a single applicator, not a kit.

Key Features

• True Quick-Change Slide-In Design: The CA-800EZ seats into the press by sliding in — no additional mounting plates required. On a production line cycling dozens of terminal types per shift, eliminating plate swaps directly recovers productive time that would otherwise go to setup.
• Reel Smart™ Compatibility: Designed as part of the Panduit Reel Smart™ applicator ecosystem, the CA-800EZ is built for continuous reel-fed terminal feeding. That means less manual loading interruption and more consistent crimp-to-crimp repeatability compared to loose-piece terminal workflows.
• CD-800 Series Jaw Insert System: The applicator accepts the full CD-800 series of interchangeable jaw inserts, so changing terminal profiles (wire gauge, insulation type, terminal style) means swapping a jaw insert — not pulling and recalibrating an entirely new applicator. This keeps your tooling investment modular and expandable.
• AMP Model T and K Press Compatibility: Purpose-built for AMP T- and K-bench press platforms. If your production floor is standardized on those press frames, the CA-800EZ integrates without shimming, spacers, or custom brackets.
• Compact Form Factor: At 10.25 in. × 9.25 in. × 4 in., the applicator sits well within standard press clearance envelopes. No press-bed crowding, no interference with adjacent guide rails.
• Single-Unit Packaging: Shipped as one applicator per package — appropriate for facilities adding a dedicated applicator per terminal type rather than sharing a single unit across multiple reel sizes.

Integration and Compatibility

The CA-800EZ is designed exclusively for use with AMP Model T- and K-style bench-mount presses. It does not include jaw inserts — those are ordered separately from the CD-800 series, giving you control over which terminal profiles you stock. Before ordering, confirm your press model against AMP's T/K designation and verify that your required terminal type has a corresponding CD-800 jaw insert available. The CA-800EZ (often searched as CA 800EZ) is not a universal applicator — its value comes specifically from the quick-change architecture within the AMP/Panduit press ecosystem.

For facilities building out a multi-applicator bench, this unit pairs with the broader wire termination tooling line, including compatible jaw insert sets and reel-fed terminal stock. For wiring infrastructure planning in structured environments, the Panduit catalog covers both termination tooling and cable management accessories that are frequently co-deployed.

Frequently Asked Questions

Q: What press models is the CA-800EZ compatible with?

A: The CA-800EZ is designed for use in AMP Model T- and K-style bench-mount presses. It slides directly into these press frames without additional mounting plates.

Q: Does the CA-800EZ include jaw inserts?

A: No. The CA-800EZ uses CD-800 series jaw inserts, which are ordered separately. The applicator body itself is what you receive — jaw inserts are selected based on your terminal type and wire gauge requirements.

Q: What does the Reel Smart™ designation mean for the CA-800EZ?

A: Reel Smart™ indicates that this applicator is engineered for continuous reel-fed terminal feeding, as opposed to loose-piece or strip-fed terminal systems. This supports higher throughput and more consistent crimping on production lines.

Q: What are the physical dimensions of the CA-800EZ?

A: The CA-800EZ measures 10.25 in. wide (260.4 mm), 9.25 in. tall (235 mm), and 4 in. in overall length.

Q: Is an adapter plate required to mount the CA-800EZ in the press?

A: No. The quick-change design allows the CA-800EZ to slide directly into compatible AMP T- and K-press frames without any supplemental adapter plates.

Q: How many applicators come in one package?

A: One. Package quantity is 1 unit. Facilities that dedicate an applicator per terminal reel type will need to order accordingly.

Marty Allison

The CA-800EZ's defining engineering decision is the no-plate quick-change mechanism — the applicator slides into AMP T/K press frames directly, and in high-mix production environments where you're running four or five different terminal types across a single shift, that changeover architecture is what separates a 2-minute swap from a 15-minute one. I've seen facilities lose an hour of press time per day to applicator swaps when running plate-dependent designs.

Technical Highlights:

• Quick-Change Architecture: Slide-in mounting to AMP T/K presses with no adapter plates required — reduces changeover time on multi-terminal production runs where applicator swaps happen multiple times per shift.
• CD-800 Jaw Insert Compatibility: The CA-800EZ draws from the CD-800 series jaw library, meaning terminal-profile changes are handled by swapping a jaw insert rather than pulling the entire applicator. That modularity matters when you're managing tooling costs across a range of wire gauges and terminal styles.
• Compact Footprint (10.25 in. × 9.25 in. × 4 in.): Fits within standard AMP press clearance envelopes without crowding adjacent fixtures or interfering with reel feed paths on a multi-station bench.

Deployment Considerations:

• The CA-800EZ ships without jaw inserts — budget for CD-800 series inserts separately, matched to your specific terminal type and wire gauge range before the applicator is usable on a live press.
• Compatibility is explicitly scoped to AMP Model T- and K-press platforms. If your facility runs a different press frame family, verify dimensional and mounting compatibility before ordering — this is not a universal applicator.

The CA-800EZ is the right call for wire harness assembly operations and panel wiring facilities that are already standardized on AMP T/K presses and need to maximize applicator changeover speed across a high-mix terminal reel inventory without investing in new press infrastructure.
