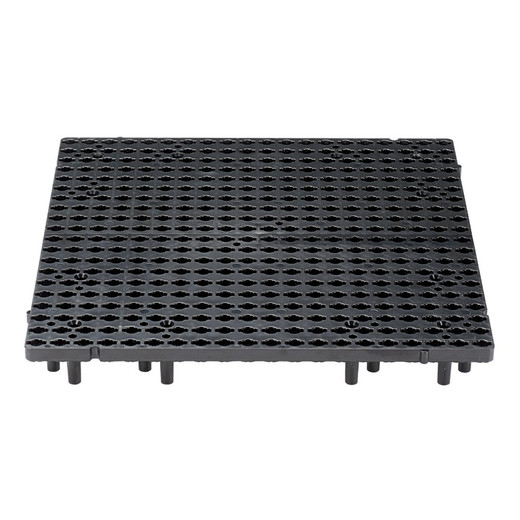

Panduit QB-TILE Quick-Build Harness Board Tile
The Panduit QB-TILE is a 12" × 12" modular harness board tile designed for integrators and manufacturers building custom wire harness assembly stations. Constructed from durable ABS plastic, this tile serves as the foundation for Panduit's Quick-Build modular harness board system, providing a precise grid surface for mounting pegs, platforms, and routing fixtures. Whether you're assembling control panels, building cable harnesses for security installations, or setting up production-line wire routing stations, the QB-TILE delivers the dimensional accuracy and structural rigidity required for repeatable, professional results.
Key Features
- 12" × 12" (304.8mm × 304.8mm) modular tile design for scalable harness board configurations
- 1.38" (35mm) profile accommodates Quick-Build mounting pegs and provides clearance for wire routing
- Black ABS construction resists impact, chemicals, and wear in production environments
- Precision-molded grid pattern ensures accurate peg placement and alignment across multi-tile installations
- Mounts to plywood backing with user-supplied screws, or connects tile-to-tile using QB-CONN connectors
- Compatible with full Quick-Build ecosystem including mounting pegs, platforms, and wire routing accessories
- RoHS compliant for use in environments requiring material compliance
Each QB-TILE measures exactly 12" × 12" with a 1.38" height, providing a rigid mounting surface molded with Panduit's proprietary grid pattern. The ABS plastic construction delivers the dimensional stability required for precision harness assembly—critical when building multi-conductor cable assemblies where peg placement directly affects wire lengths and termination accuracy. Install tiles directly onto 3/4" plywood backing using wood screws (user-supplied), or eliminate the plywood substrate entirely by connecting tiles edge-to-edge with Panduit QB-CONN connectors. The connector method maintains perfect grid alignment across the entire harness board surface and simplifies reconfiguration when production requirements change.
In a typical deployment, integrators building control-panel harnesses or pre-terminated cable assemblies mount multiple QB-TILE units to create a custom-sized work surface, then populate the grid with Quick-Build mounting pegs to establish wire routing paths. The modular design scales from small benchtop boards (2–4 tiles) to large production stations (12+ tiles), and tiles can be added or removed as harness complexity changes. Security integrators assembling multi-camera cable bundles, datacenter teams building structured-cabling harnesses, and OEMs producing wiring looms all benefit from the repeatable peg placement and professional wire-dress the Quick-Build system enables.
The QB-TILE ships as a single tile unit (verify package quantity at checkout, as some bulk SKUs contain multiple tiles). RoHS compliance ensures the tile meets material-content restrictions for electronics manufacturing and EU-market installations. As the foundation component of Panduit's Quick-Build harness board system, the QB-TILE transforms ad-hoc wire assembly workflows into structured, repeatable processes—reducing assembly time, improving wire-dress consistency, and eliminating the trial-and-error of nail-and-plywood harness boards.
